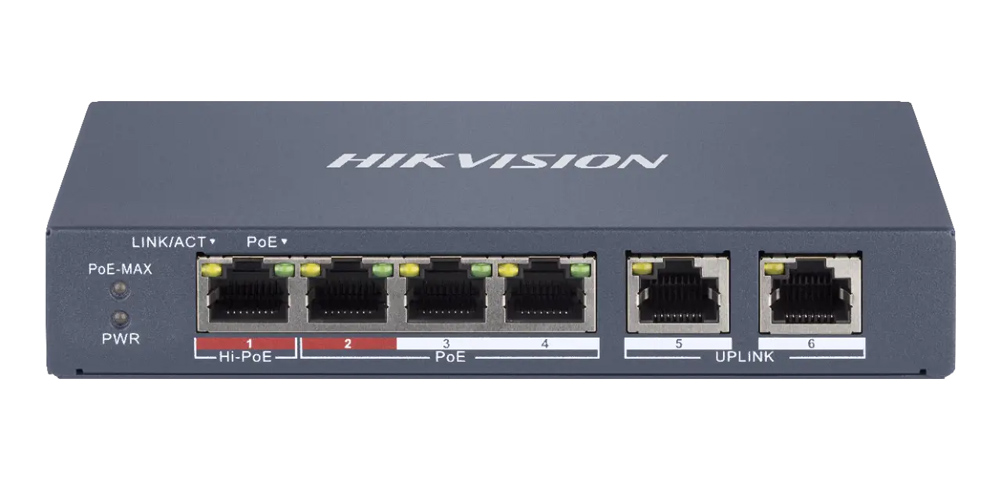

HIKVISION Managed switch DS-3E1106HP-EI, 4x PoE & 2x RJ45 ports, 100Mbps

HIKVISION Managed switch DS-3E1106HP-EI, 4x PoE & 2x RJ45 ports, 100Mbps

Το switch της Hikvision επεκτείνει το δίκτυο σας με 4x θύρες δικτύου PoE με ταχύτητες 10/100Mbps. Είναι ιδανικό για χρήση με συστήματα ασφαλείας, συναγερμούς, κάμερες κ.λπ.

• HIKVISION Managed switch DS-3E1106HP-EI, 4x PoE & 2x RJ45 ports, 100Mbps
• 4x 100 Mbps PoE RJ45 ports, 2x 100 Mbps network RJ45 ports
• IEEE 802.3at/af/bt standard for PoE ports
• Network topology management and alarm push
• 6 KV surge protection for PoE ports
• Up to 300 m long-range transmission
• AF/AT camera can reach up to 300 m in extend mode
• Τεχνικά χαρακτηριστικά
• Network Parameters

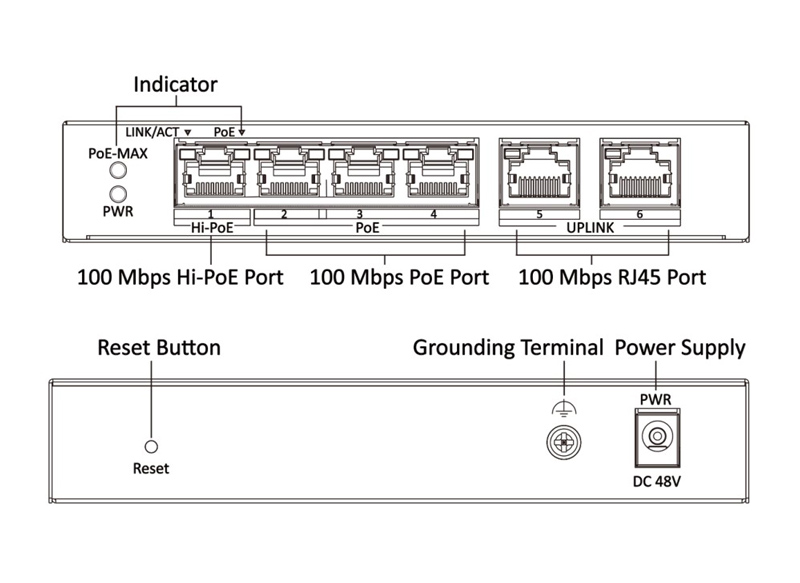

• Port Number: 4x 100 Mbps PoE RJ45 port, and 2x 100 Mbps network RJ45 ports
• Forwarding Mode: Store-and-forward switching
• MAC Address Table: 2 K
• Switching Capacity: 1.2 Gbps
• Packet Forwarding Rate: 0.8928 Mpps
• Internal Cache: 768 Kbits
• High Priority Ports: Support data of ports in red area forwarded in priority
• PoE Power Supply
• PoE Standard: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
• PoE Power Pin: End-span: 1/2(-), 3/6(+), Mid-span: 4/5(+), 7/8(-), 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE Port: Hi-PoE: Port 1, PoE: Ports 2 to 4
• Max. Port Power: Port 1: 60 W, Ports 2 to 4: 30 W
• PoE Power Budget: 60 W
• Software Function
• Port Configuration: Support rate, flow control, and switch configuration
• Device Maintenance: Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters
• General
• Shell: Metal material, IP40
• Installation Mode: Wall mounting, desk mounting
• Net Weight: 0.245 kg

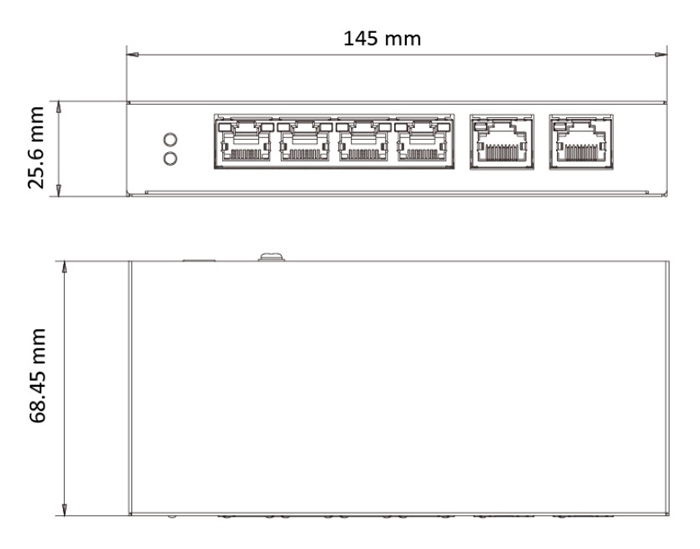

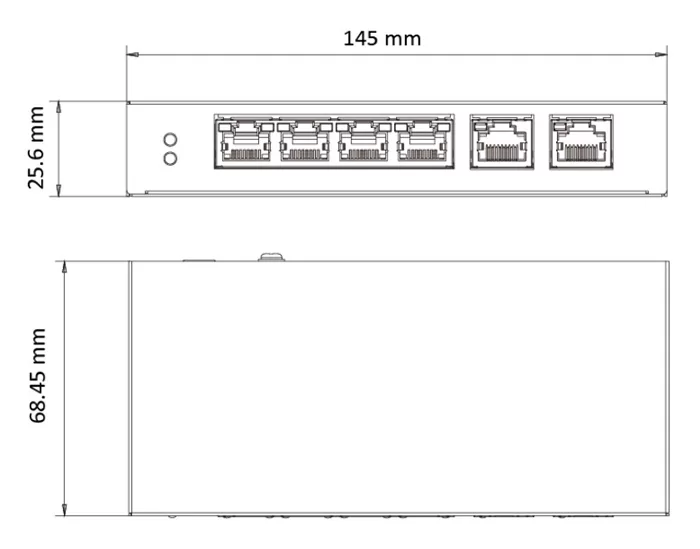

• Dimension (WxHxD): 145 x 25.6 x 68.45 mm
• Operating Temperature: -10 °C to 55 °C
• Operating Humidity: 5% to 95% (no condensation)
• Power Supply: 48 VDC, 1.35 A
• Max. Power Consumption: 65 W
• Power Consumption in Idle: 2 W
• Περιεχόμενα συσκευασίας
• Switch
• Power adapter
• AC power cord
• Quick start guide
