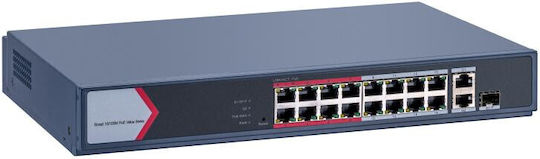

Hikvision DS-3E1318P-EI/M, 16 Port Fast Ethernet Smart PoE Switch

Hikvision DS-3E1318P-EI/M, 16 Port Fast Ethernet Smart PoE Switch - Image 2

Κωδικός: DS3E1318P-EI/MHikvision

Hikvision DS-3E1318P-EI/M, 16 Port Fast Ethernet Smart PoE Switch

Name: Hikvision DS-3E1318P-EI/M, 16 Port Fast Ethernet Smart PoE Switch | ΑΥΓΟΥΣΤΗΣ
Brand: Hikvision
SKU: DS3E1318P-EI/M
Price: 172.00 EUR
Availability: BackOrder

Κατάστημα 4.8 · 405 κριτικές Google·Εξέλιξη τιμής

172,00 €

Παράδοση 1 έως 3 ημέρες

Δωρεάν Μεταφορικά

Δες όλη την περιγραφή

'Ατοκεσ δοσεισ

6 άτοκες δόσεις σε αγορές από 100€ και άνω

Αποστολή πανελλαδικά από 3€

με Courier για ογκομετρικό βάρος έως 3kg

Δωρεάν μεταφορικά άνω των 80€

έως 20 kg σε επιλεγμένα προϊόντα με την BOXNOW

Δωρεάν μεταφορικά άνω των 80€

για τα πρώτα 3 κιλά της παραγγελίας σου με Courier

ΑΠΟΣΤΟΛΗ ΣΤΗΝ ΗΠΕΙΡΩΤΙΚΗ ΕΛΛΑΔΑ & ΚΡΗΤΗ ΑΠΟ 1,99€

με την BOXNOW σε επιλεγμενα προϊόντα έως 20 kg

Εγγύηση 100% καλής λειτουργίας

σε όλα μας τα προϊόντα

• 16 × 10/100M PoE ports, 1 × Gigabit RJ45 port,1 × Gigabit combo
• Total PoE Power Budget 130 W
• Support 802.1Q VLAN
• Support PoE watchdog to detect and restart the cameras that do not respond
• Support STP/RSTP Loop prevention
• Support cable detection to locate failure
• Up to 300 m Long Range PoE Transmission
• 6 kV Surge Protection

Smart managed switches are developed by Hikvision, featuring easy management and maintenance. You can easily deploy,
monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network
topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of
network operation and maintenance.

Specification
General
Shell	Metal material
Net Weight	1.8 kg
Gross Weight	3.0 kg
Dimensions (W × H × D)	440.00 mm × 44.00 mm × 220.80 mm
Operating Temperature	0 °C to 45 °C
Storage Temperature	-40 °C to 85 °C
Operating Humidity	5% to 95%
Relative Humidity	5% to 95%
Power Supply	100-240 VAC, 50/60 Hz, Max. 3 A
Installation Mode	Rack (equipped with mounting ears)
Max. Power Consumption	150 W
Power Consumption in Idle	20 W
Surge Protection	6 kV
Network Parameters
Ports	16 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port,1 × Gigabit combo
MAC Address Table	16 K
Switching Capacity	Whole-Device Performance: 9.2 GbpsPort Performance: 7.2 Gbps
Packet Forwarding Rate	Whole-Device Performance: 6.84 MppsPort Performance: 5.36 Mpps
Internal Cache	4 Mbits
PoE Power Supply
PoE Standard	IEEE 802.3af,IEEE 802.3at
PoE Power Pin	8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port	PoE: Ports 1 to 16
Max. Port Power	30 W
PoE Power Budget	130 W
Software Function
Long Range	Ports 1 to 16: up to 300 m.Long range performance may vary depend on camera model or cable condition.
VIP Port	Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
Port Isolation	Ports 1 to 16: port isolation mode to improve network securityPorts in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog	Ports 1 to 16: auto detect and restart the cameras that do not respond.
Link Aggregation	Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 1 aggregation group.
Loop Prevention	Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP.
VLAN	VLAN is used for network scale planning and network health improvement.Support 802.1Q.Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN.
HPP	Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device.
System Maintenance	Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address for direct access.Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.Supports 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.
Approval
EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety	CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
