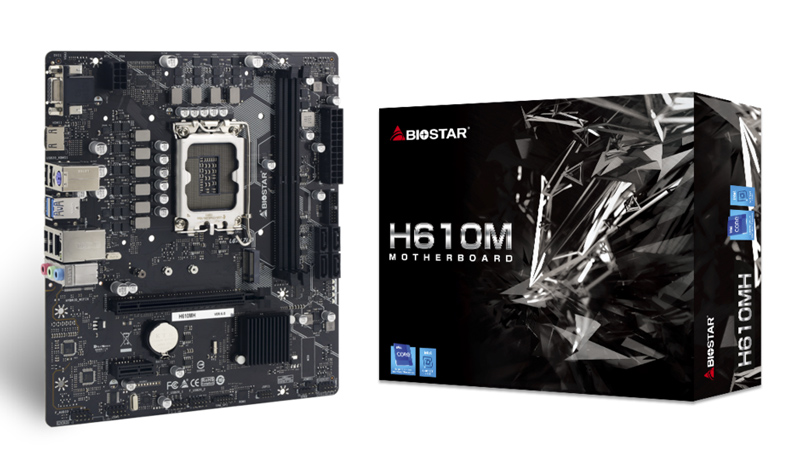

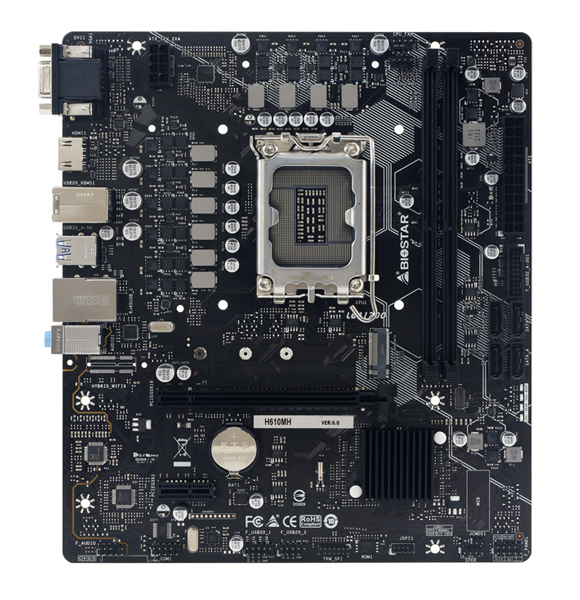

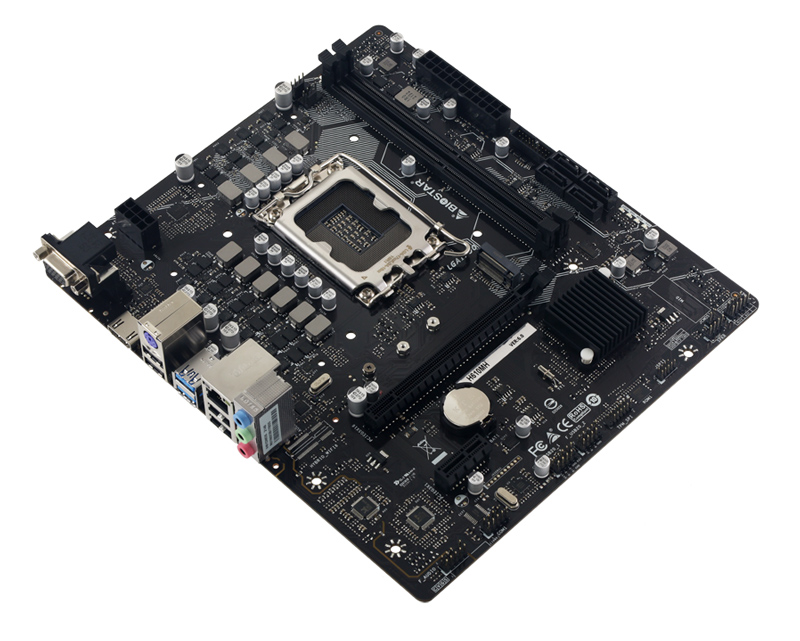

BIOSTAR μητρική H610MH, 2x DDR4, s1700, USB 3.2, uATX, GbE, Ver. 6.0

BIOSTAR μητρική H610MH, 2x DDR4, s1700, USB 3.2, uATX, GbE, Ver. 6.0

Η H610MH της Biostar είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket s1700 και βασίζεται στο chipset H610 της Intel.

CPU: Support for 12th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors / Intel Celeron processors in the LGA1700 package

Memory: Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200, 2x DDR4 DIMM Memory Slot Max. Supports up to 64 GB Memory, Each DIMM supports non-ECC 4/8/16/32GB DDR4 module, Support Intel Extreme Memory Profile (XMP) memory modules

USB: 4x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers), 8x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)

Storage: Total supports 1x M.2 socket and 4x SATA III (6Gb/s) ports, 4x SATA III Connector (6Gb/s), 1x M.2 (M Key) Socket (M2_PCIEG3_32G_ SATA): Supports M.2 Type 2240 /2260 /2280 SSD module, Supports PCI-E 3.0 x4 (32Gb/s) & SATA SSD

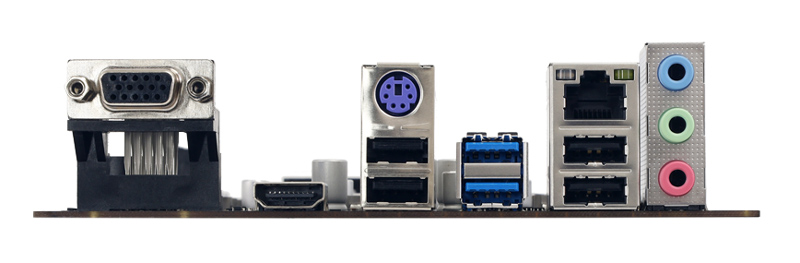

REAR I/O:

INTERNAL I/O:

H/W monitoring: CPU / System Temperature Monitoring, CPU / System Fan Monitoring, Smart / Manual CPU Fan Control, CPU/DDR Voltage Monitoring

• BIOSTAR μητρική H610MH, 2x DDR4, s1700, USB 3.2, uATX, GbE, Ver. 6.0
• Διαθέτει δυο εξόδους γραφικών: VGA και HDMI.
• Supports 12th Generation Intel Core™ Processor
• Intel H610 single chip architecture
• Supports 2-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2933/ 3200 up to 64 GB Memory
• Supports PCIe 4.0
• Supports PCIe M.2 3.0 (32Gb/s)
• Supports HDMI 4K2K
• Supports USB 3.2 Gen1
• Τεχνικά χαρακτηριστικά
• Chipset: Intel H610
• Integrated video: Supports DX12, Supports HDCP
• Audio: ALC897, 7.1 Channels, High Definition Audio
• LAN: Intel I219V, 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
• Expansion slot: 1x PCIe 3.0 x1 Slot, 1x PCIe 4.0 x16 Slot
• Form Factor: Micro ATX 20.8cm x 23.6cm
• 1x PS/2 Keyboard/Mouse Port
• 1x HDMI
• 1x VGA Port
• 2x USB 3.2 (Gen1) ports
• 4x USB 2.0 ports
• 1x LAN port
• 3x Audio Jack
• 4x SATA III Connectors (6Gb/s)
• 2x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
• 1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
• 1x 8-Pin Power Connector
• 1x 24-Pin Power Connector
• 1x CPU Fan Connector
• 1x System Fan Connector
• 1x Front Panel Header
• 1x Front Audio Header
• 1x Internal Stereo Speaker Header
• 1x Clear CMOS Header
• 1x COM Port Header
• 1x TPM Header
• OS SUPPORT: Supports Windows 10 (64bit) / 11(64bit)
