BIOSTAR μητρική B450NH, 2x DDR4, AM4, MiniITX, GbE LAN, Ver. 6.0

BIOSTAR μητρική B450NH, 2x DDR4, AM4, MiniITX, GbE LAN, Ver. 6.0

Η B450NH της Biostar είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket AM4 και βασίζεται στο chipset B450 της AMD.

CPU support: Supports AMD AM4 Socket for 3rd, 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors

Memory:

Storage:

1x M.2 (M Key) Socket:

USB: 6x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal header), 4x USB 2.0 ports (2 on rear I/Os and 2 via internal header)

Expansion slot:

1x PCIe 3.0 x 16 Slot:

Rear I/O:

Internal I/O:

• BIOSTAR μητρική B450NH, 2x DDR4, AM4, MiniITX, GbE LAN, Ver. 6.0
• Διαθέτει 2 εξόδους γραφικών: VGA και HDMI.
• Supports AMD Ryzen CPU/APU
• AMD B450 single chip architecture
• Supports 2-DIMM DDR4-1866/2133/2400/2667/2933(OC)/3200(OC)/3600(OC)/4000(OC) up to 64G maximum capacity
• Realtek Gigabit LAN
• Supports USB 3.2 Gen1
• Supports PCIe M.2
• Supports HDMI 4K resolution
• Τεχνικά χαρακτηριστικά
• Chipset: AMD B450
• Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2667
• Supports Dual Channel DDR4 2933(OC)/ 3200(OC)/ 3600(OC)/ 4000(OC)
• 2x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
• Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module
• Integrated videO: By CPU model, Supports DX12, Supports HDCP
• 4x SATA III Connector (6Gb/s): Supports AHCI & RAID 0, 1, 10
• Supports M.2 Type 2260/ 2280 SSD module
• Supports PCIe 3.0 x 4 (32Gb/s) – NVMe/ AHCI SSD
• Supports SATA III (6.0Gb/s) SSD
• LAN: Realtek RTL8111H, 10/100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
• Audio codec: ALC887, 7.1 Channels, High Definition Audio
• Supports PCIe 3.0 x 16 mode with AMD Ryzen™ processors.
• Supports PCIe 3.0 x 8 mode with AMD Ryzen™ with Radeon Vega Graphics processors.
• Dimension: Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L )
• OS support: Supports Windows 7(64it)/ 10(64bit) / 11(64bit)

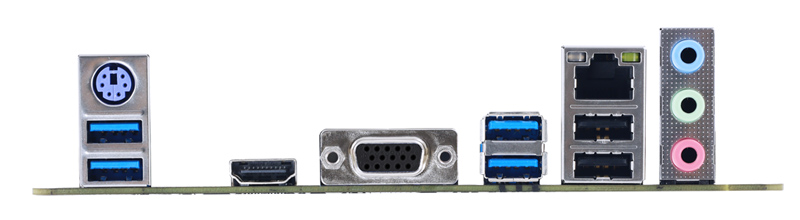

• 1x PS/2 Mouse/ Keyboard Port
• 1x HDMI Port
• 1x VGA Port
• 1x LAN port
• 4x USB 3.2 (Gen1) Ports
• 2x USB 2.0 Ports
• 3x Audio Jack
• 4x SATA III 6.0Gb/s Connectors
• 1x USB 2.0 Header (each header supports 2 USB 2.0 ports)
• 1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
• 1x 4-Pin Power Connector
• 1x 24-Pin Power Connector
• 1x CPU Fan Connector
• 1x System Fan Connector
• 1x Front Panel Header
• 1x Front Audio Header
• 1x Clear CMOS Header
• 1x Internal Stereo Speaker Header
• 1x COM Port Header
• 1x S/PDIF out Connector
