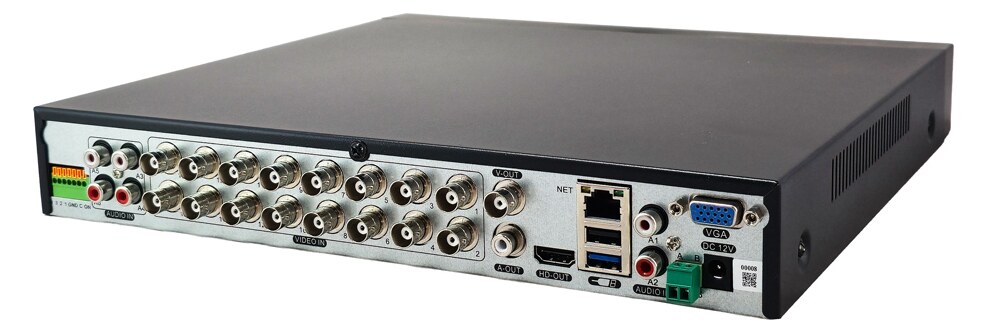

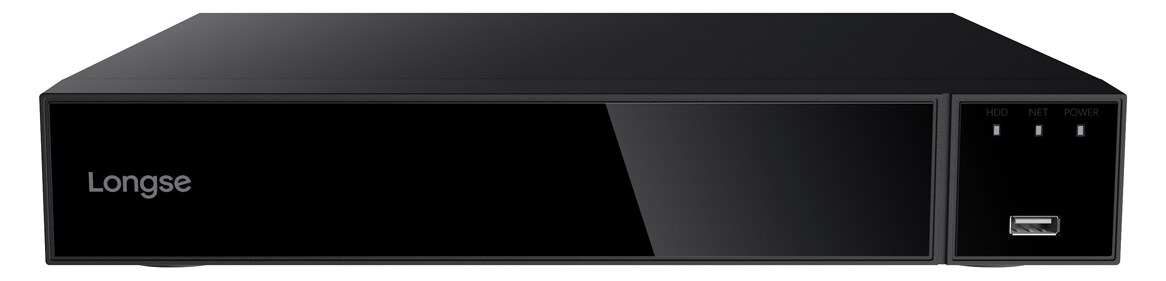

LONGSE XVR υβριδικό καταγραφικό XVRDA7016HCB, 8MP H.265/H.264, 16 καναλιών

LONGSE XVR υβριδικό καταγραφικό XVRDA7016HCB, 8MP H.265/H.264, 16 καναλιών

Υβριδικό XVR καταγραφικό 5 σε 1 (AHD, CVI, TVI, IP, Analog) της Longse, με υποστήριξη έως 16 αναλογικών καναλιών ή 32 δικτυακών καναλιών. Υποστηρίζει ανάλυση καταγραφής έως 8MP.

Τα καταγραφικά της Longse αποτελούν προϊόντα τεχνολογικής αιχμής, κατασκευάζονται από ποιοτικά υλικά και με αυστηρά κριτήρια ποιότητας, ώστε να λειτουργούν αξιόπιστα και απροβλημάτιστα, προσφέροντας σιγουριά και ασφάλεια.

Σημεία ενδιαφέροντος προϊόντος υποστήριξη έως 16 αναλογικών καναλιών υποστήριξη έως 32 δικτυακών καναλιών υποστήριξη ανάλυσης έως 8MP

H.265/H.264 video compression υποστήριξη απομακρυσμένου ελέγχου μέσω smartphone υποστήριξη 2x σκληρών δίσκων με χωρητικότητα έως 16TB ελληνικό μενού

Συμβατές εφαρμογές:

Normal Mode: Default: 16x AHD/TVI/CVI: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H) + 8x network(Max 8MP), Analog+Network: 2x Analog(8MP) + 22x network(Max 8MP), 4x Analog(8MP) + 20x network(Max 8MP), 6x Analog(8MP) + 18xnetwork(Max 8MP), 8xAnalog(8MP) + 16x network(Max 8MP), 10x Analog(8MP) + 14x network(Max 8MP), 12x Analog(8MP) + 12x network(Max 8MP),14*Analog(8MP)+10*network(Max 8MP),16*Analog(8MP)+8*network(Max 8MP)

Record Rate:

Analog: PAL: 8MP_LITE(1920×2160 16x8fps), 5MP(2592×1944 16x6fps), 5MP_Lite(1280×1952 16x10fps), 1080P(1920×1080 16x15fps), NTSC: 8MP_LITE(1920×2160 16x8fps), 5MP(2592×1944 16x6fps), 5MP_Lite(1280×1952 16x10fps), 1080P(1920×1080 16x15fps), Pure IP(H.265): PAL: 8MP @20x25fps, 5MP @32x25fps, 4MP @32x25fps, 3MP @32x25fps, 1080P @32x25fps, 960P @32x25fps, 720P @32x25fps, NTSC: 8MP @20x30fp, 5MP @32x30fps, 4MP @32x30fps, 3MP @32x30fps, 1080P @32x30fps, 960P @32x30fps, 720P @32x30fps, D1 @32x30fps

Sync Playback:

Mix Mode: 2CH 4K @30fps, 3CH 5M @30fps, 4CH 4M @30fps,5CH 3M @30fps, 8CH 1080P @30fps, 16CH 5M @6fps, 15CH 8M_LITE @8fps, 16CH 1080P @15fps

Language: Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese

• LONGSE XVR υβριδικό καταγραφικό XVRDA7016HCB, 8MP H.265/H.264, 16 καναλιών
• Android https://play.google.com/store/apps/details/BitVision?id=com.gzch.lsplat.lsbtvapp&hl=el
• IOS https://apps.apple.com/us/app/bitvision/id1419463554
• PC http://www.herospeed.net/en/index.php?m=content&c=index&a=lists&catid=10
• WEB Browser www.bitvision.app
• Τεχνικά χαρακτηριστικά
• System
• Main Processor: MC6680
• Operating System: Embedded LINUX
• Video
• Input
• Network: 32x 8MP/5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ?160M)
• Input: 16CH BNC
• Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
• Output: 1HD,1 VGA, 1 CVBS
• Audio
• Input: 6 Channel, l RCA, support AOC
• Two-way Audio: No
• Output: 1 Channel RCA
• Alarm
• Sensor Input: 4
• Output: 1
• Motion Detection: 16 Channel
• Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications (motion detection)
• Email Alarm: Send Image to The Designated E-mail
• AI Function
• Human Detection: Yes
• PTZ
• Interface: RS485
• Protocol: Pelco-D, Pelco-P
• Baud Rate: 110~921600
• Address: 0~255
• Display
• VGA: Resolution: 1920 x 1080P, 1280 x 1024, 1280 x 720, 1024 x 768
• HD Output: Resolution: 4K, 1920×1080, 1280×1024, 1280×720, 1024×768
• Display Split: 1/4/6/9/16/25/36
• Privacy Masking: 3 Rectangular Zones (Each camera)
• OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
• Recording
• Video Compression: H.265/H.265+/H.264/H.264+
• Audio Compression: G.711u/G.711a
• Resolution: 5MP(2560×1952), 8MP_LITE(1920×2160), 5MP_lite(1280×1952), 1080P(1920×1080), 720P(1280×720), 960H(960×480)
• Video Quality: Lowest/Low/Ordinary/Good/Better/Best
• Record Mode: ManualTimerMotion DetectionAlarm
• Playback & Backup
• Decode Capability: 8x 1080P @30fps
• Pure Analog: 16CH 8MP_LITE @8fps, 16CH 5MP @6fps, 16CH 5MP_Lite @10fps, 16CH 1080P @15fps, 16CH 720P @15fps, 16CH 960H @30fps
• Pure IPC: 2CH 4K @30fps, 3CH 5M @30fps, 4CH 4M @30fps, 5CH 3M @30fps, 8CH 1080P @30fps
• Remote Playback: 4 Channel / 1 Channel
• Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection, Alarm, Tag
• Playback Functions: Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
• Smartphone Playback: 4 Channel
• Backup Mode: USB Device(with format FAT 32 )/Network/FTP
• Network
• Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface
• Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
• DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET, EASY_PLANET
• Web Browser: Edge, IE8-11, Google Chrome, Firefox, Safari
• CMS Software: Support Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS
• Extra Stream: CIF/D1(1-30fps)
• Smartphone: iPhone, ipad, Android, Android pad
• Hard Disk Driver
• Interface Type: 2 SATA Interface
• Capacity: 2 SATA Hard Disk (2.5″/3.5″ SATA, Up to 16TB)
• General
• UTC Control: Yes
• USB Interface: 2 USB 2.0 Interfaces
• Power consumption: DC 12V/4A
