Magical sound – with the FT-710 Acoustic Enhanced Speaker System. Plus the magic of the most famous manufacturer in amateur radio – Yaesu! The same perfected SDR technology as the ‘big boys’ in a compact format, affordable for every budget – that’s the FT-710.
The FT-710 is Yaesu’s compact shortwave transceiver that adopts the SDR technology of the FT-DX101 and FT-DX10.
The FT-710 AESS (Acoustic Enhanced Speaker System) provides 100W of transmit power (adjustable from 5 to 100W). The RF input stage builds on the experience of the large FT-DX101 and FT-DX10 transceivers and uses SDR technology. A series of band filters for the amateur radio bands filter out unwanted SIgnals from outside the band. The high-resolution 250 MHz synthesiser allows simultaneous reception of multiple signals.
Operation is greatly simplified by the large 4.3″ colour display; as with its larger siblings, a mouse and/or keyboard can be connected for easier control. Clearly visible LEDs to the side of the large VFO knob indicate the current operating status (VFO-A, VFO-B, memory, clarifier/split). A ‘preset’ function helps to set all parameters for FT-8 operation super-fast and optimally.
The built-in antenna tuner adjusts not exactly tuned antennas in a flash. If an external tuner is needed, the FT-710 offers the possibility to connect the Yaesu FC-40 tuner.

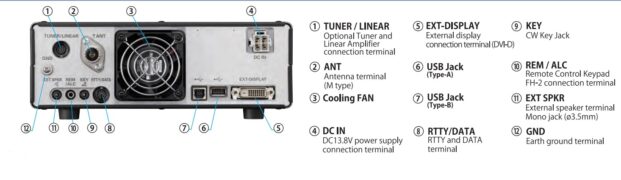

To improve the integration into the radio station, the FT-710 offers the possibility to connect an external monitor (DVI-D). In addition to the two USB ports (1x type A, 1x type B), there is also a port for network control. An SD memory card remembers all settings, memory contents and also records QSOs at the touch of a button. Firmare updates are also carried out very conveniently and securely via the SD card.
Like the SSM-75E, the SP-40 loudspeaker is included in the scope of delivery.
|Freq Range Receiver (kHz)||30 kHz – 75 MHz|
|4 m Band TX capable||Yes, modification required|
|6 m Band TX capable||Yes, as shipped|
