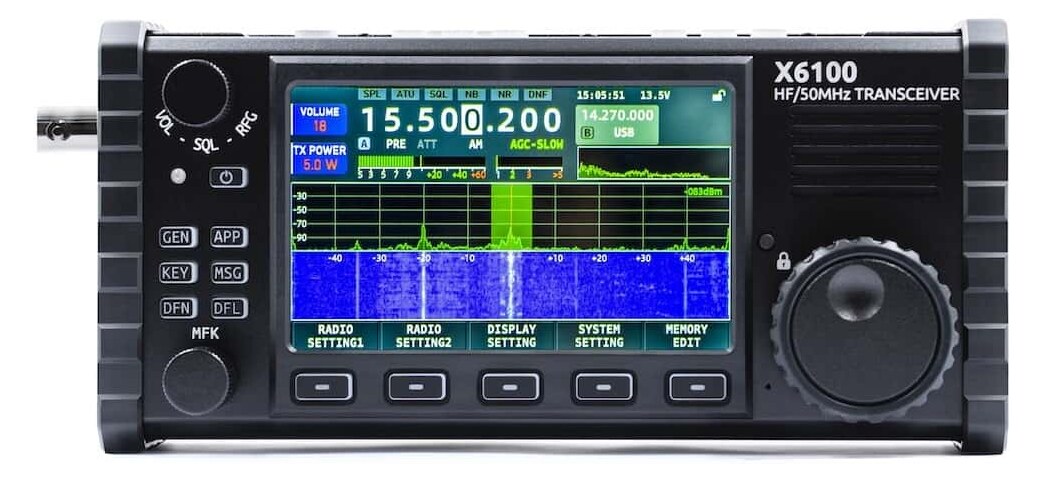

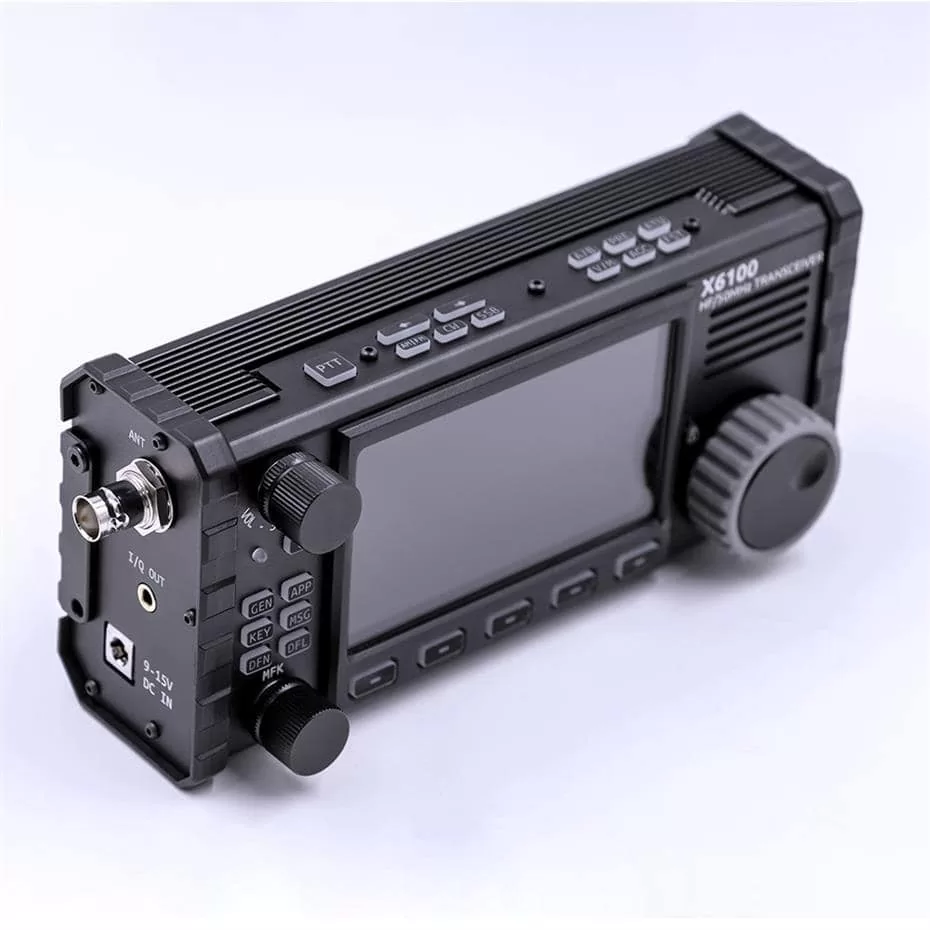

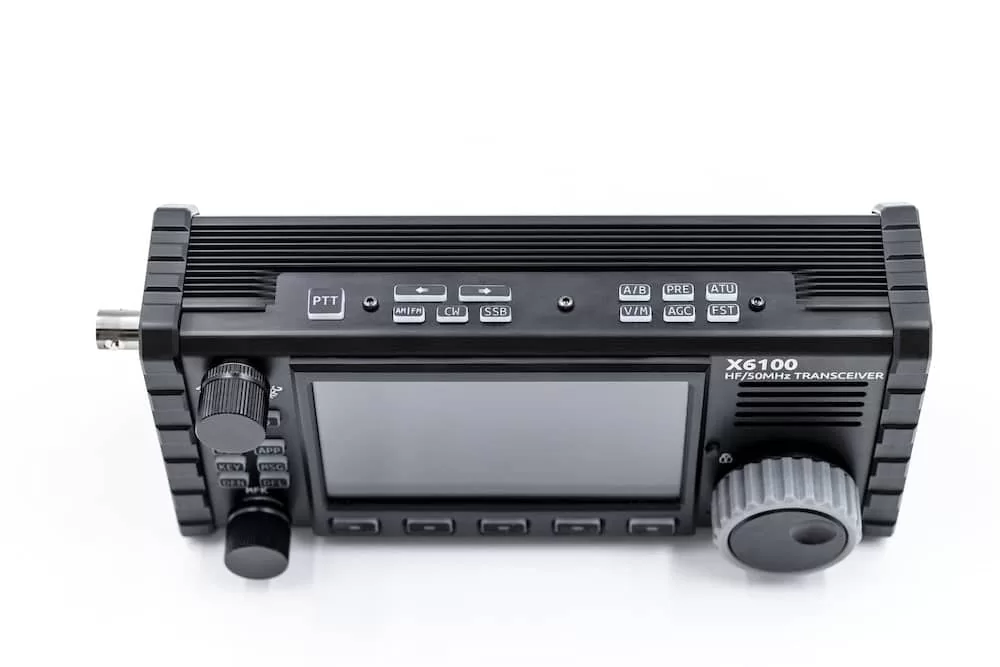

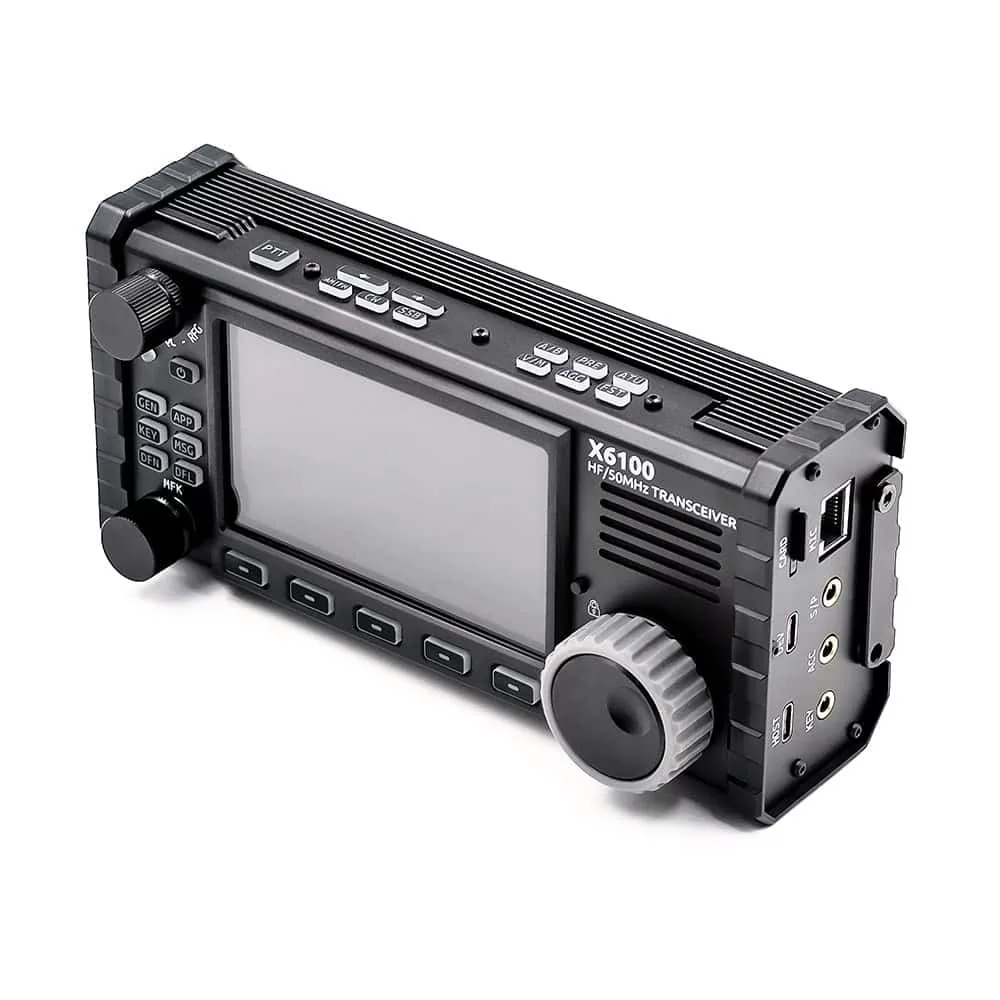

Xiegu X6100 is an ultra-portable SDR transceiver (Software Defined Radio) for HF and 6m. High performance and rich functionality is provided by a direct down-conversion and sampling architecture. With its compact size and smart form factor X6100 brings you a brand-new experience of amateur radio.
X6100 has independent baseband and RF units. The baseband unit provides control, advanced data processing, digital signal processing, multimedia interface functions, and can add new functions continuously through firmware updates. The RF unit is based on the SDR structure with separate transmit and receive paths. With a 24bit sampling rate and large dynamic RF front-end unit, the X6100 is a high performance transceiver that lets you work the world when you’re out on an adventure in nature, in the camper or on a beach far away.

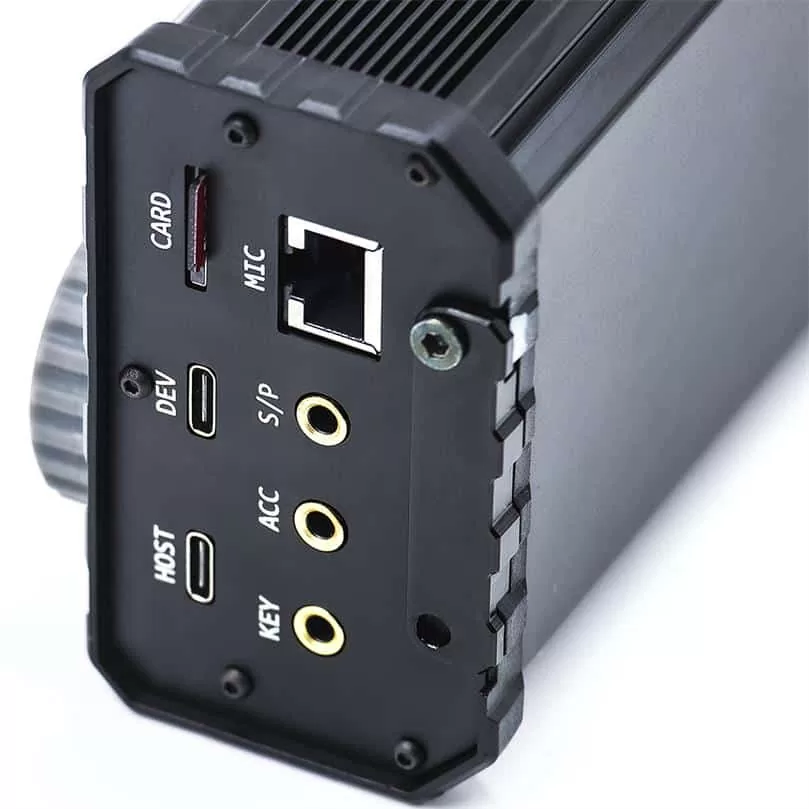

X6100 sports two USB interfaces, one USB to serial adapter with sound card and another to support mouse, keyboard and storage devices. A microSD card slot allows for backup and transfer of memory channels and voice keyer recordings. An XPA125B amplifier can connect via with a dedicated cable (optional accessory) to provide for 100W transmit power. External third-party SDR software applications like HDSDR can be connected via the I/Q signal output.
Xiegu X6100 Key Features
- HF/50MHz all mode including data
- 10 W transmit power with external power source, 5 W with internal battery
- 4″ high-resolution color screen, 800*480 pixels resolution
- Built-in rechargable large capacity lithium battery pack, 12V/3,5 Ah
- Built-in efficient automatic antenna tuner
- Standing wave scanner
- Voice memory keyer
- CW memory keyer
- Native Bluetooth and WiFi supports wireless audio, keyboard & mouse
- Onboard USB serial adapter with sound card
- Second USB host port to support mouse, keyboard and storage device
- High stability TCXO internal clock source
Xiegu X6100 General Specifications
- Frequency coverage: 0,5-30+50-54MHz (Transmit in Ham Bands)
- Operating modes: USB/LSB (J3E), CW (A1A), FM (F3E)，RTTY (F1B), AM (A3E)
- Minimum Frequency Step: 1 Hz
- External power supply voltage: DC9-15V
- Frequency stability: ±1.5ppm within 10~30min after startup @25°C: 1ppm/hour
- Antenna Impedance: 50 Ohm
- Antenna connector type: BNC
- Operating temperature range: 0C to +50C
- Current consumption: RX: <330mA, TX: <3A
Xiegu X6100 Receiver Specifications
- Frequency coverage: 0,5-30+50-54MHz
- Receive sensitivity (10dBS/N)
- (PRE=on, ATT=off, NB=off,NR=off, SSB/CW/AM = 10dB S/N, FM = 12dB SINAD)
- SSB/CW: 0.20 uV
- FM 28-30, 50-54 MHz 0.22 uV
- AM 0,55-1,79 MHz: 10 uV
- AM 1,8-30 MHz: 2 uV
- AM 50-54 MHz: 2 uV
- ADC: 24 bit
- Spectrum display bandwidth: 96 kHz
- Spectrum refresh rate: 25 frames/a
- Spectrum background noise: -140 dBm
- Audio output: 0,4W (4 Ohm ≥10% THD)
- 2kHz BDR (Critical frequency suppression): ≥110 dB
- RMDR: ≥85 dB
- IMD3: ≥95 dB
- MDS: -138 dBm
Xiegu X6100 Transmitter Specifications
-
- Frequency range
- 1.8~2.0 MHz
- 3.5~3.9 MHz
- 5.3515~5.3665 MHz
- 7.0~7.2 MHz
- 10.1~10.15 MHz
- 14.0~14.35 MHz
- 18.068~18.168 MHz
- 21.0~21.45 MHz
- 24.89~24.99 MHz
- 28.0~29.7 MHz
- 50~54 MHz
- Output Power: 10W (SSB/CW/FM) @13.8VDC
- 2.5W (AM carrier wave) @13.8VDC
- Output Power, internal battery: 5W
- 1.5W (AM carrier wave) @ battery
- Spurious suppression: 1.8~29.6MHz: ≥50dB
- 50-54 MHz ≥60 dB
- Carrier suppression: ≥50dB
- SSB Frequency Response: 300-2700Hz (-6dB)
- FM Modulation Swing; +/- 5kHz
- Mic Impedance: o,2-10k (600 Ohm typical)
- Antenna tuner tuning impedance range: 1:4.5
- Antenna tuner initial tuning time: ≥ 15s
- Antenna tuner memory recall time ≥ 0.2s
- Frequency range
Xiegu X6100 Wireless network/Bluetooth
- Wireless LAN standard: IEEE802.11b/g/n
- Authentication and encryption: WEP (64/128bit)
- WPA-PSK(TKIP)
- WPA2-PSK(AES)
- Frequency band: 2.4G
- Bluetooth version: 4.0
Xiegu X6100 General Specifications
- Dimensions: 180 x 86 x 49 mm
- Weight: 880 g (radio unit only)

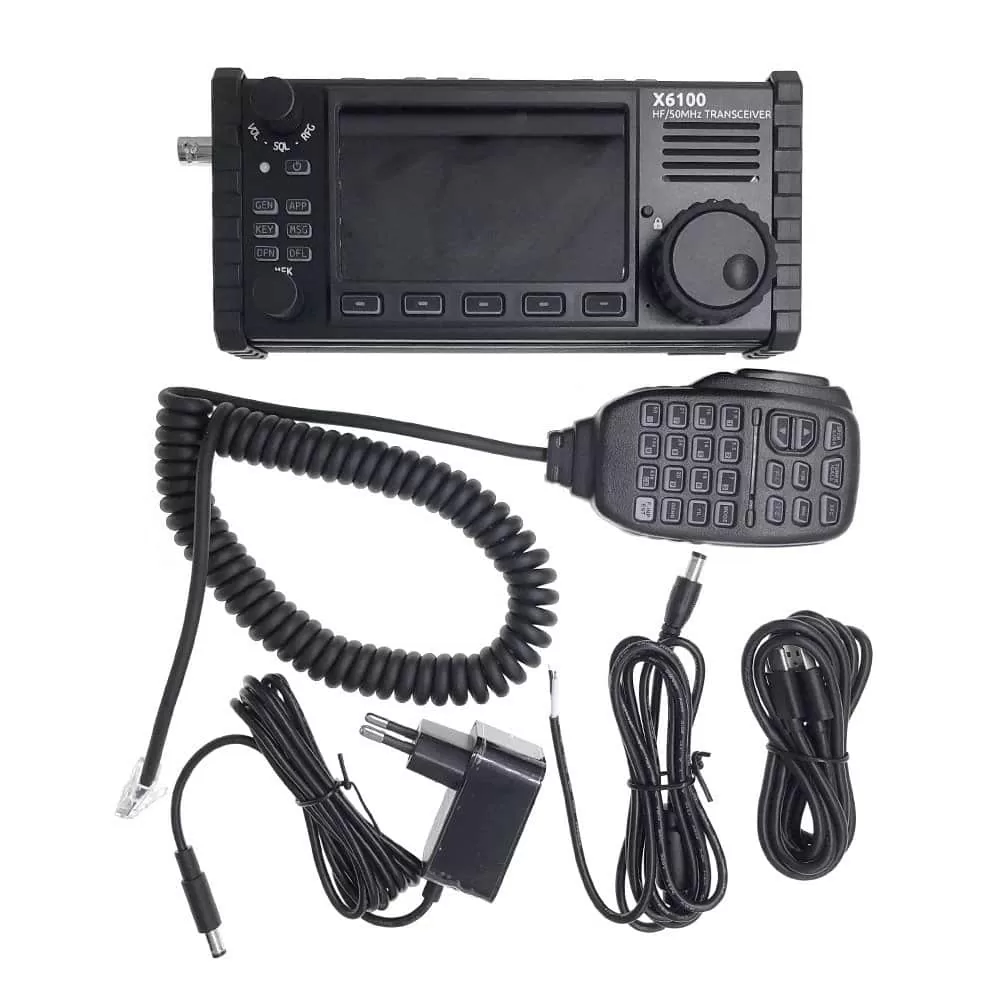

Xiegu X6100 In the Box
- X6100 radio unit complete with antenna tuner and internal rechargeable battery
- Microphone with backlit remote control keypad
- Serial cable for PC connection
- 12 Volt DC power cord
- English manual
- Xiegu Service Card
