IC-705

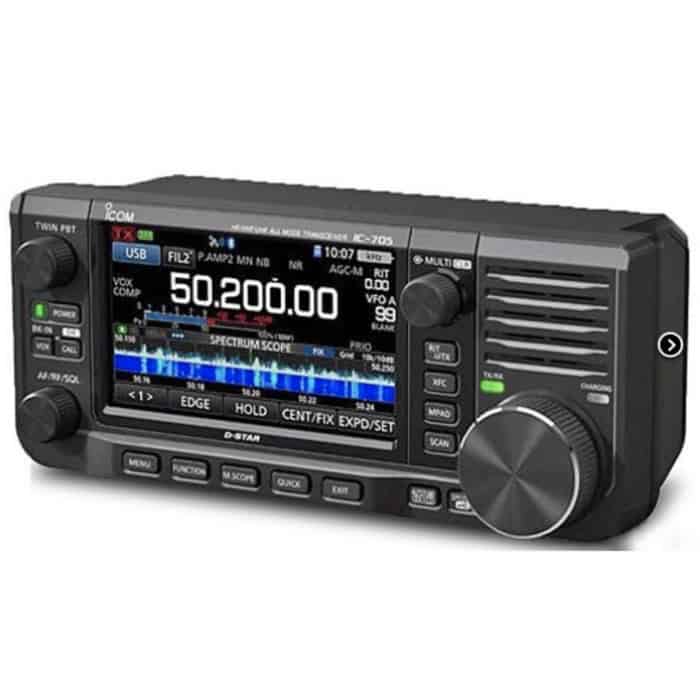

The New Icom IC-705 is an RF direct sampling VHF, UHF, HF, D-Star all mode 10W QRP portable transceiver* prototype (*when using external power supply)
- We now know that it is fitted Bluetooth and WiFi. This underlines the fact that it may well be able to offer remote control capabilities.
Direct sampling is up to 25MHz. Beyond that it is down conversion. This is one feature that separates it from the IC-7300 and IC-9700. Power on the attached battery is 5W. 10W can be achieved with and external 12c supply.
There will be an App. for smart-phone connection to remote control the IC-705.
Brief Specifications
- Receiver: 30kHz – 146MHz
- Receive: FM Broadcast & AM Air band included.
- Method: Direct sampling up to MHz
- Scope: Live Spectrum and Waterfall
- External Power: 13.8V
- Power: 10W down to 500mW (5W with battery)
- Bluetooth: Included for remote operation
- GPS: Included for D-Star
- SD Card Slot: Included
- Speaker Mic: Included
- Input: BNC
- Size: 200w x 80h x 85d (mm)Weight: 1kg
- Display: 4.5″ Colour Touch Screen (Same as IC-7300/9700
- Battery: BP-272 Rear Mounted (included)
-
RX [1] 0.0300 ~ 199.9990 MHz
400.0000 ~ 470.0000 MHzTX [2] 1.8000 ~ 1.9990 MHz
3.5000 ~ 3.9990 MHz
5.2550 ~ 5.4050 MHz [3]
7.0000 ~ 7.3000 MHz
10.1000 ~ 10.1500 MHz
14.0000 ~ 14.3500 MHz
18.0680 ~ 18.1680 MHz
21.0000 ~ 21.4500 MHz
24.8900 ~ 24.9900 MHz
28.0000 ~ 29.7000 MHz
50.0000 ~ 54.0000 MHz
70.0000 ~ 70.5000 MHz [4]
144.0000 ~ 148.0000 MHz
430.0000 ~ 450.0000 MHz
