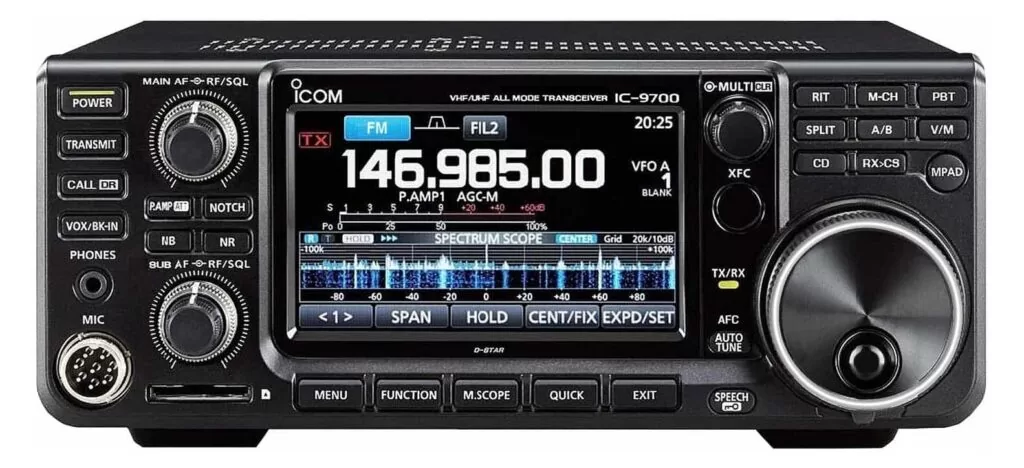

ICOM IC-9700 VHF/UH/1.2 GHz All Mode Base Transceiver

Specifically built for the VHF/UHF weak signal operator in mind, the IC-9700 is a RF direct sampling receiver for 2m and 70cm, with a single, down conversion for 23cm with an IF Sampled receiver between 311 – 371MHz. This design provides a quiet receiver with the power of Icom’s DSP technology along with a robust PA providing 100W on 2m, 75W on 70cm, and 10W on 23cm.

IC-9700 Band Management includes band specific memory channels and band specific receiver and transmitter settings. For transmit, users can make adjustments to RF power, TX power Limit, Limit Power and TX Delay by band. Basic receiver settings, like the Noise Blanker, Noise Reduction and others can be tweaked by band with a dynamic Notch and Filter may also be setup by band and mode.

Features for the ultra-advanced Icom IC-9700 include:
* Direct-Sampling SDR design
* RF Output of 100 Watts on 2m (144-148 MHz), 75 Watts on 70cm (430-450 MHz) and 10 Watts on 23 cm (1240-1300 MHz)
* All modes including FM, SSB, AM, CW, RTTY, Digital, D-Star Digital Voice and Digital Data
* Digital Data (DD) mode provides 128 kbps data communication
* D-STAR Terminal and Access Point mode (RS-MS3A/W)
* Dual D-STAR receive (decodes two voice streams simultaneously)
* Main and Sub RX
* Full Duplex (no V/V or U/U Capability)
* Smooth satellite operations with normal/reverse tracking and 99 satellite channels
* Supports 2 wave simultaneous reception (different bands/same or different mode)
* High definition Real-Time 4.3 inch TFT display
* Touchscreen interface (LCD touch-screen control)
* Main or Sub-Band Scope (Center/Fix mode +/-500 kHz Center Mode)
* Audio Scope
* CW full break-in
* 0.5ppm frequency stability < +/- 0.5ppm (–10°C to +60°C; 14°F to 140°F)
* Voice Recording/playback function (SD Memory Card)
* Ethernet Port – Internal Server for Internet remote control with optional RS-BA1 software
* USB audio and control connection
* DR Memories: 2,500

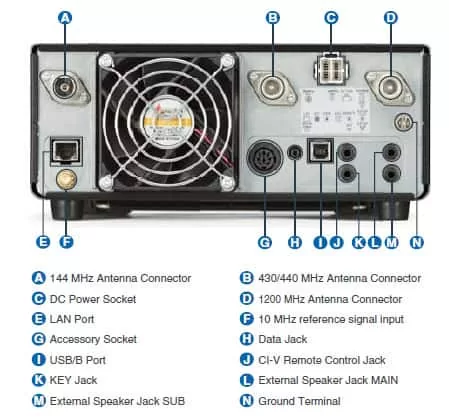

* Antenna connectors: 2m SO-239, 70cm Type N, 1.2 GHz Type N
