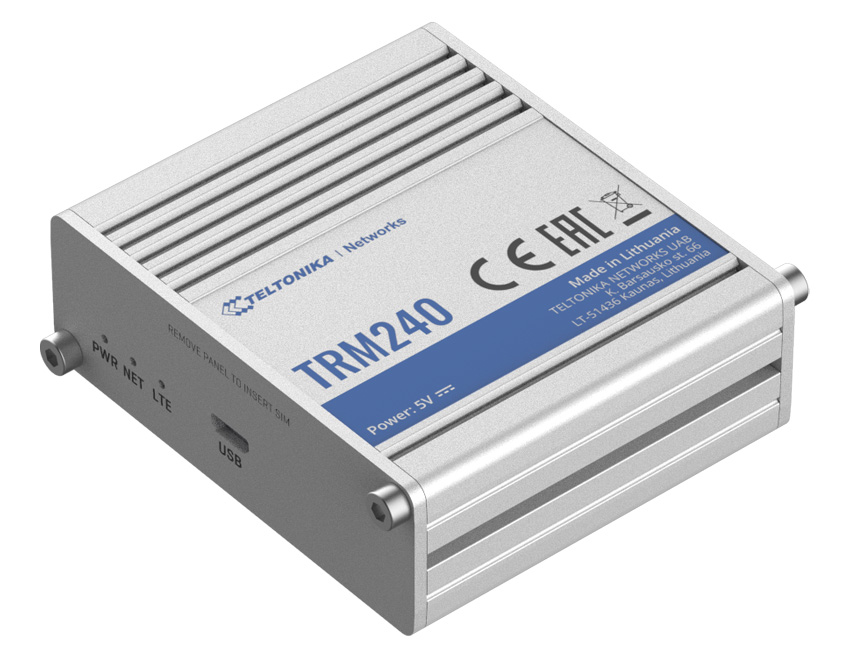

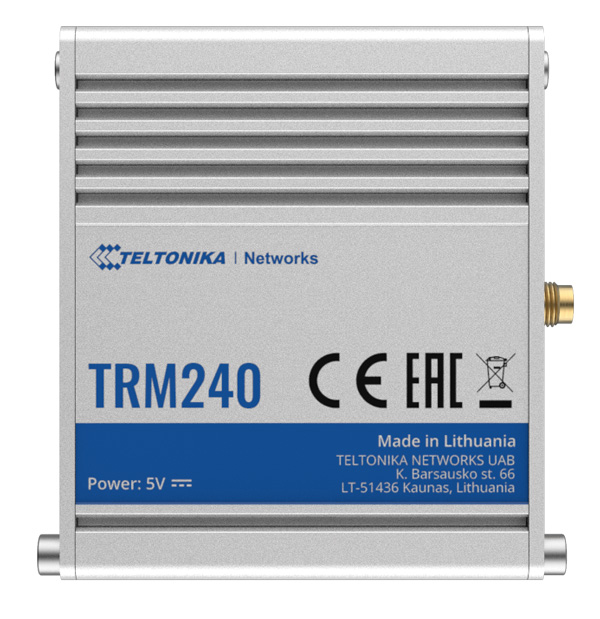

TELTONIKA Industrial cellular modem TRM240, LTE Cat 1, USB

TELTONIKA Industrial cellular modem TRM240, LTE Cat 1, USB

TRM250

• TELTONIKA Industrial cellular modem TRM240, LTE Cat 1, USB
• Connectivity, 4G/LTE (Cat 1), 3G, 2G
• Durability, Rugged aluminium housing
• USB Interface for internet accsess
• Efficiency, Low power consumption
• Compactness, Small size, easy installation
• Ease of use, Controlled using Network manager
• Τεχνικά χαρακτηριστικά
• Mobile LTE (Cat1) / 3G / 2G
• SIM slot Mini SIM (2FF)
• Antenna connector 1 x SMA for LTE
• Operating Voltage 5V – powered via microUSB
• Power consumption 3.2 W Max
• Configuration interface microUSB
• LED indicators Power, Network and LTE status LEDs
• Operating temperature -40 °C to 75 °C
• Operating humidity 10 % to 90 % non-condensing
• Casing material Aluminium housing
• Ingress Protection Rating IP30
• Dimensions 64.5 x 74.5 x 25 mm (L x W x H)
• Weight 131 g
• Management software Windows Connection Manager (NDIS driver)
• USB Serial Driver Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x
• RIL Driver Android 4.x/5.x/6.x/7.x/8.x
• NDIS Driver Windows 7/8/8.1/10
• Gobinet Driver Linux 2.6/3.x/4.1~4.14
• Linux qmi wwan Driver 3.x (3.4 and later)/4.1~4.14
• Protocols TCP/UDP/PPP/FTP(S)/HTTP(S)/NTP/PING/QMI/SSL
• Περιεχόμενα συσκευασίας
• TRM240 board
• 1x LTE antenna (swivel, SMA male)
• Micro-USB cable (0.8 m)
• 1x hex key
• QSG (Quick Start Guide)
• TELTONIKA Industrial cellular modem TRM250, 4G LTE Cat M1, USB
• Connectivity, 4G/LTE (Cat M1), NB-IoT, 2G
• Durability, Rugged aluminium housing
• USB Interface for internet accsess
• Efficiency, Low power consumption
• Compactness, Small size, easy installation
• Ease of use, Controlled using Network manager
• Τεχνικά χαρακτηριστικά
• Mobile: LTE (Cat-M1) / NB-IoT / EGPRS
• SIM slot: Mini SIM (2FF)
• Antenna connector: 1 x SMA
• Operating Voltage: 5V – powered via microUSB
• Power consumption: 3.6 W Max
• Configuration interface: microUSB
• LED indicators: Power and Network status LEDs
• Operating temperature: -40 °C to 75 °C
• Operating humidity: 10 % to 90 % non-condensing
• Casing material: Aluminium housing
• Ingress Protection Rating: IP30
• Dimensions: 64.5 x 74.5 x 25 mm (L x W x H)
• Weight: 130 g
• Management software: Windows Connection Manager (NDIS driver)
• USB Serial Driver: Windows 7/8/8.1/10, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x
• RIL Driver: Android 4.x/5.x/6.x/7.x/8.x
• Περιεχόμενα συσκευασίας
• TRM250 board
• 1x Mobile antenna (swivel, SMA male)
• Micro-USB cable (0.8 m)
• 1x hex key
• QSG (Quick Start Guide)
