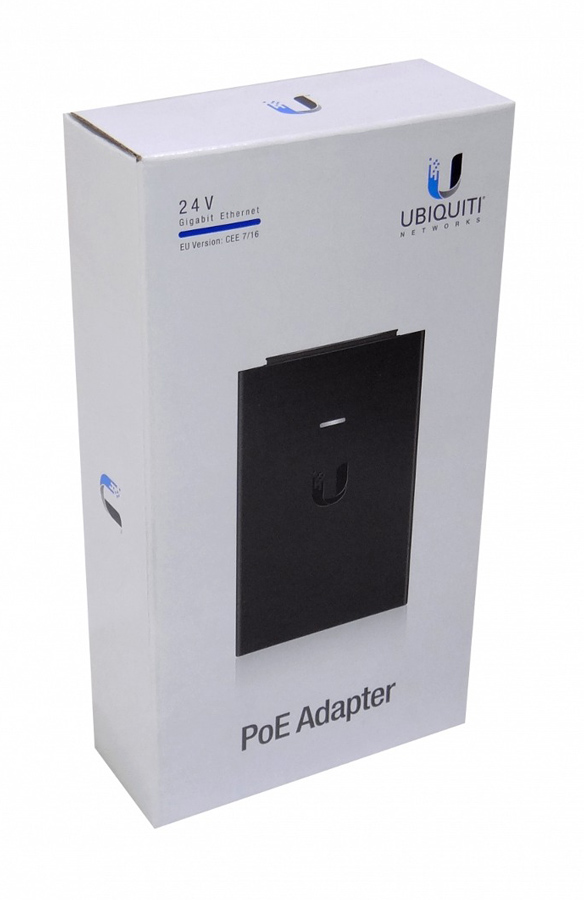

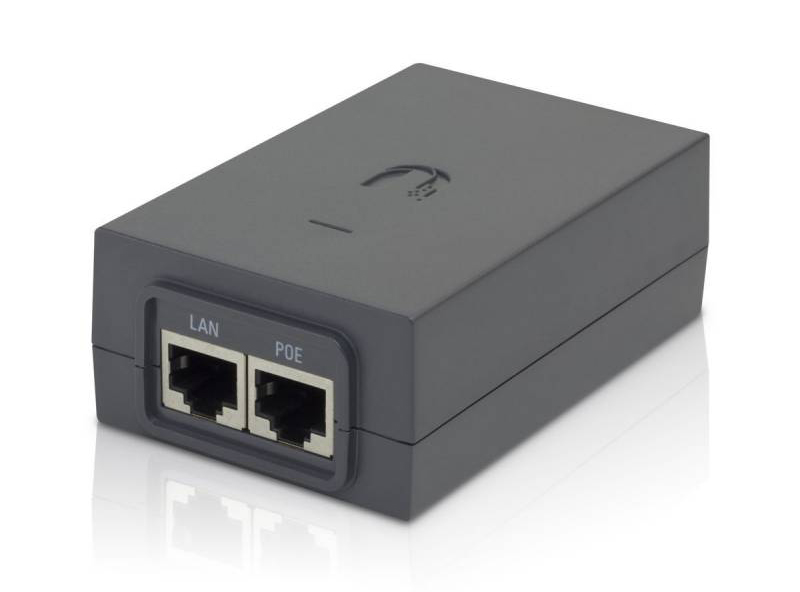

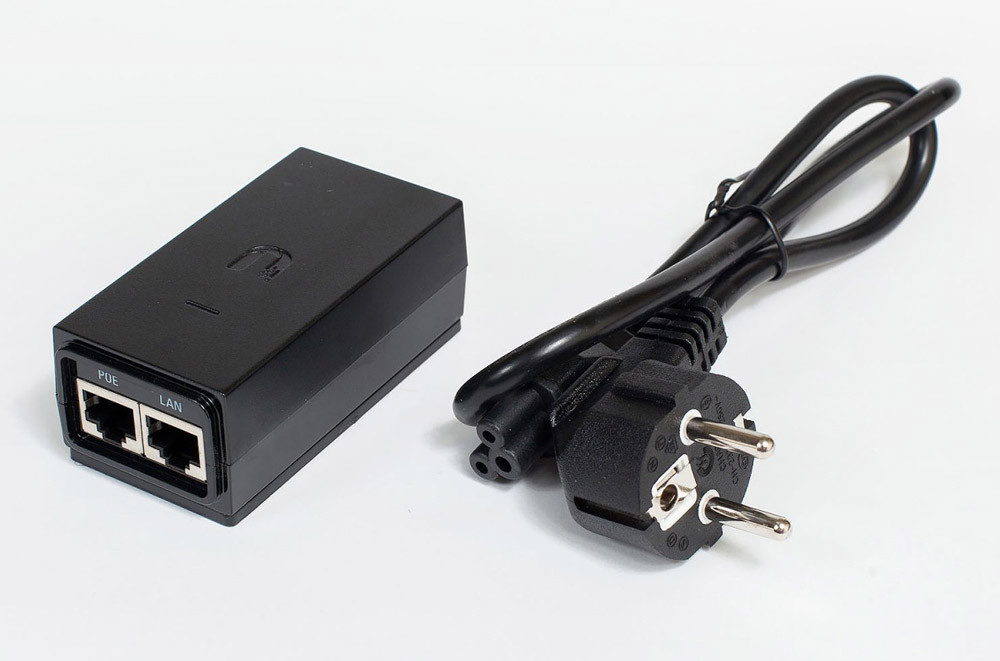

UBIQUITI Gigabit PoE Adapter POE-24-24W-G, 24V, 1A, 24W, με power cable

UBIQUITI Gigabit PoE Adapter POE-24-24W-G, 24V, 1A, 24W, με power cable

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

Τεχνικά χαρακτηριστικά:

• UBIQUITI Gigabit PoE Adapter POE-24-24W-G, 24V, 1A, 24W, με power cable
• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground
• Συμβατά μοντέλα: airFiber airMAX
• EdgeMAX mFi
• UniFi® AP
• UniFi Video / airVision
• Output Voltage: 24VDC @ 1.0A
• LAN Activity Indicator: No
• Gigabit LAN Port: Yes
• Remote Reset Capability: Yes
• Reset Button: Yes
• Input Voltage: 90-260VAC @ 47-63 Hz
• Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
• Efficiency: 80+%
• Output Ripple: 1% Max
• Switching Frequency: 65 kHz
• Line Regulation: ± 1%
• Load Regulation: ± 3%
• 4-Pair Powering: Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
• Operating Temperature: 0 to 40°C
• Storage Temperature: -30 to 70°C
• Operating Humidity: 35 to 95% Noncondensing
• AC Connector: IEC-320 C6
• Data IN / POE: RJ45 Shielded Socket
• Surge Protection: Difference and Common Mode
• Clamping Protection: 11V Data, 60V Power
• Max. Surge Discharge: 1500A (8/20 µs) Power
• Peak Pulse Current: 36A (10/1000 µs) Data
• Compliance: IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B
• Dimensions: 88 x 57 x 33 mm
• Weight: 158.5 g
