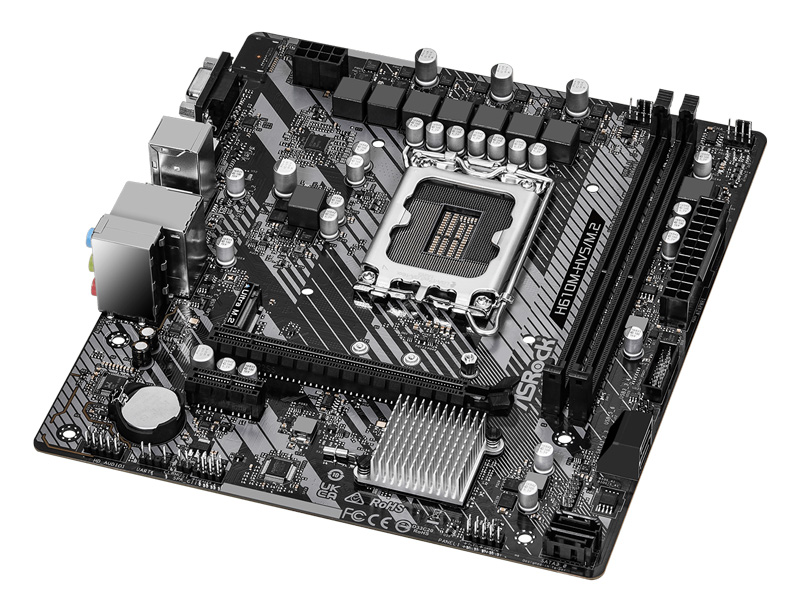

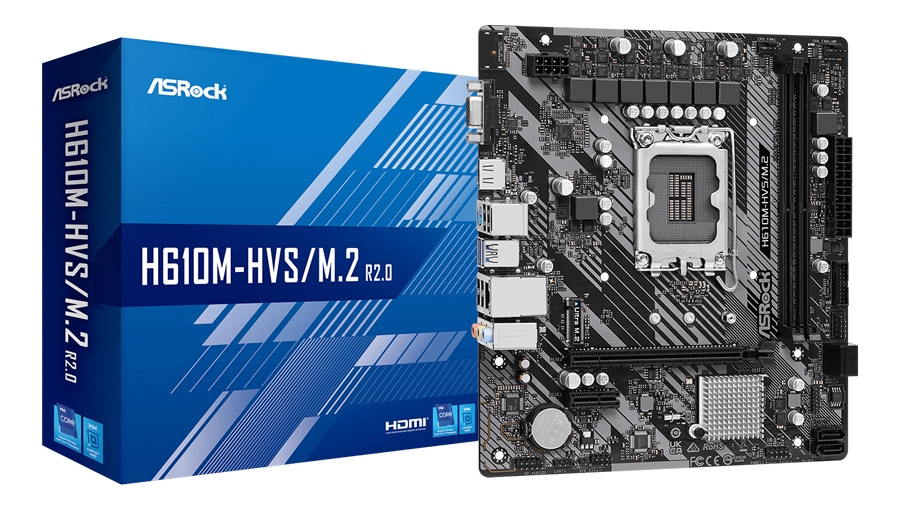

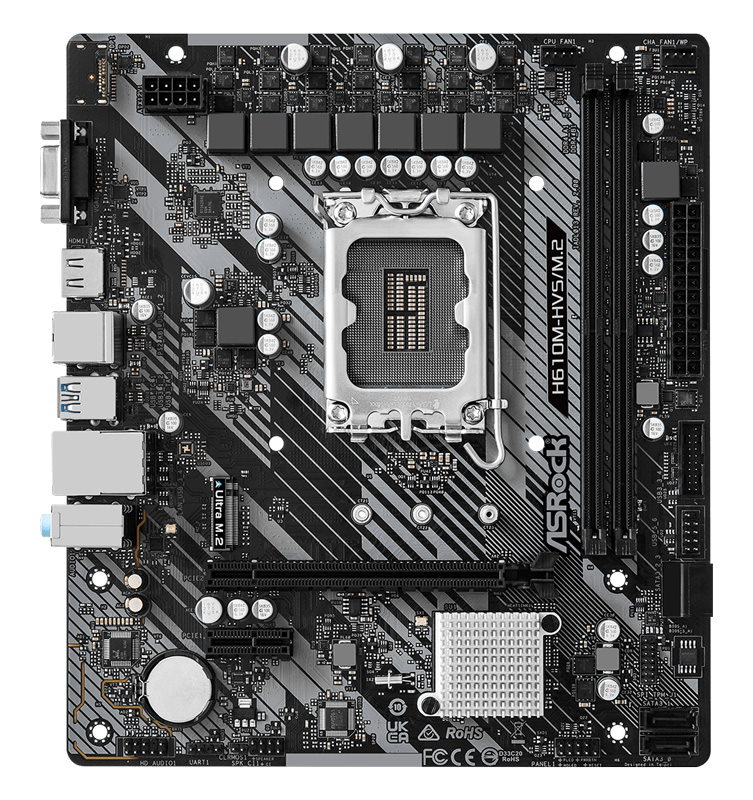

ASROCK μητρική H610M-HVS/M.2 R2.0, 2x DDR4, s1700, USB 3.2 Gen1, mATX

ASROCK μητρική H610M-HVS/M.2 R2.0, 2x DDR4, s1700, USB 3.2 Gen1, mATX

Η H610M-HVS/M.2 R2.0 της Asrock είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket s1700 και βασίζεται στο chipset H610 της Intel.

CPU: Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700), 7 Power Phase design, Intel® Hybrid Technology, Intel® Turbo Boost Max 3.0 Technology

LAN: PCIE x1 Gigabit LAN 10/100/1000 Mb/s, 1x Realtek RTL8111H, Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, PXE

Connector:

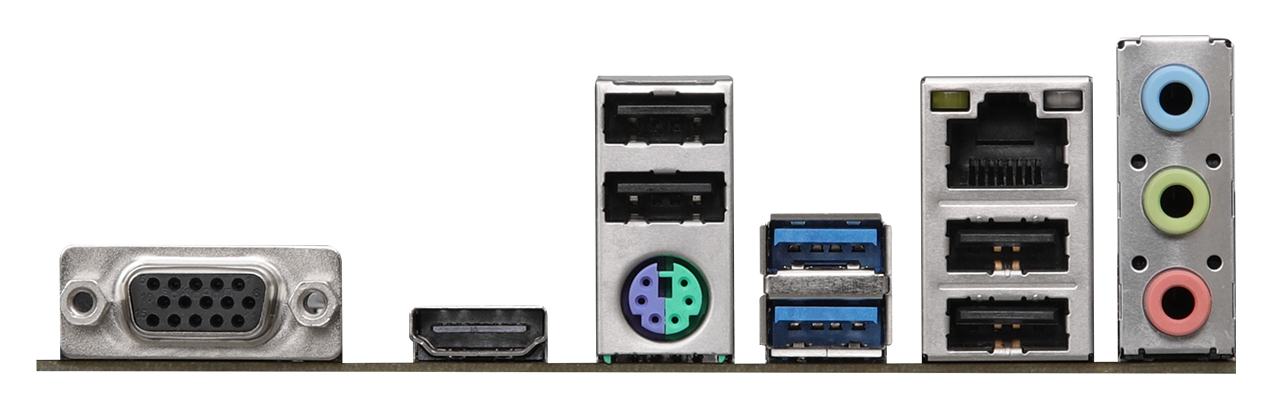

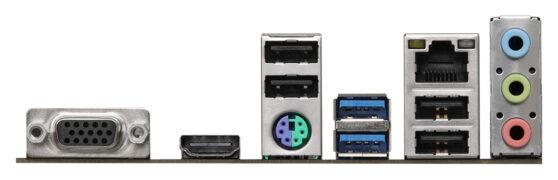

Rear Panel I/O:

• ASROCK μητρική H610M-HVS/M.2 R2.0, 2x DDR4, s1700, USB 3.2 Gen1, mATX
• Διαθέτει δυο εξόδους γραφικών: D-Sub και HDMI.
• Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
• 7 Phase Power Design
• Supports DDR4 3200MHz
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options: HDMI, D-Sub
• Realtek ALC897 7.1 CH HD Audio Codec
• 4x SATA3
• 1x Ultra M.2 (PCIe Gen3 x4)
• 4x USB 3.2 Gen1 (2 Rear, 2 Front)
• 6x USB 2.0 (4 Rear, 2 Front)
• Realtek Gigabit LAN
• Τεχνικά χαρακτηριστικά
• Chipset: Intel H610
• Memory: 2x DDR4 DIMM Slots, Max. capacity of system memory: 64GB
• Audio: 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec), Surge Protection
• Slots: 1x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode, Chipset:1x PCIe 3.0 x1 Slot (PCIE1)
• Storage: 1x Ultra M.2 Socket (M2_2, Key M), 4x SATA3 6.0 Gb/s Connectors
• Graphics: HDMI & D-Sub, Intel® Xe Graphics Architecture (Gen 12)
• Form Factor: Micro ATX Form Factor: 8.76-in x 7.4-in, 22.3 cm x 18.8 cm
• OS: Microsoft Windows 10 64-bit / 11 64-bit
• Accessories: Quick Installation Guide, Support CD, I/O Shield, 2x SATA Data Cables, 1x Screw for M.2 Socket
• 1x SPI TPM Header
• 1x Chassis Intrusion and Speaker Header
• 1x CPU Fan Connector (4-pin)*
• 1x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
• 1x 24 pin ATX Power Connector
• 1x 8 pin 12V Power Connector
• 1x Front Panel Audio Connector
• 1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
• 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
• 1x PS/2 Mouse/Keyboard Port
• 1x D-Sub Port
• 1x HDMI Port
• 2x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 4x USB 2.0 Ports (Supports ESD Protection)
• 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone
