SIRIO WY140-6N Κεραία Yagi VHF Βάσεως

Specifications:

• Type:6 elements Yagi
• Radiation:Directional
• Polarization:Linear Vertical or Horizontal
• Systems: 2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz
• Gain:8.35 dBd – 10.5 dBi
• Max Power:200 W (CW)
• Grounding protection:DC-Ground
• Connector:N-female

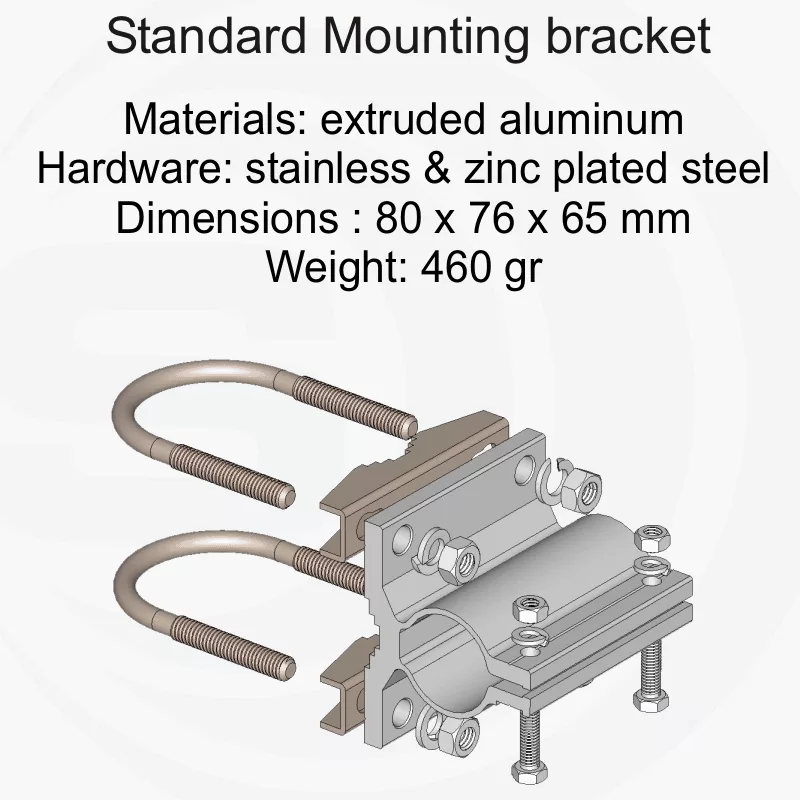

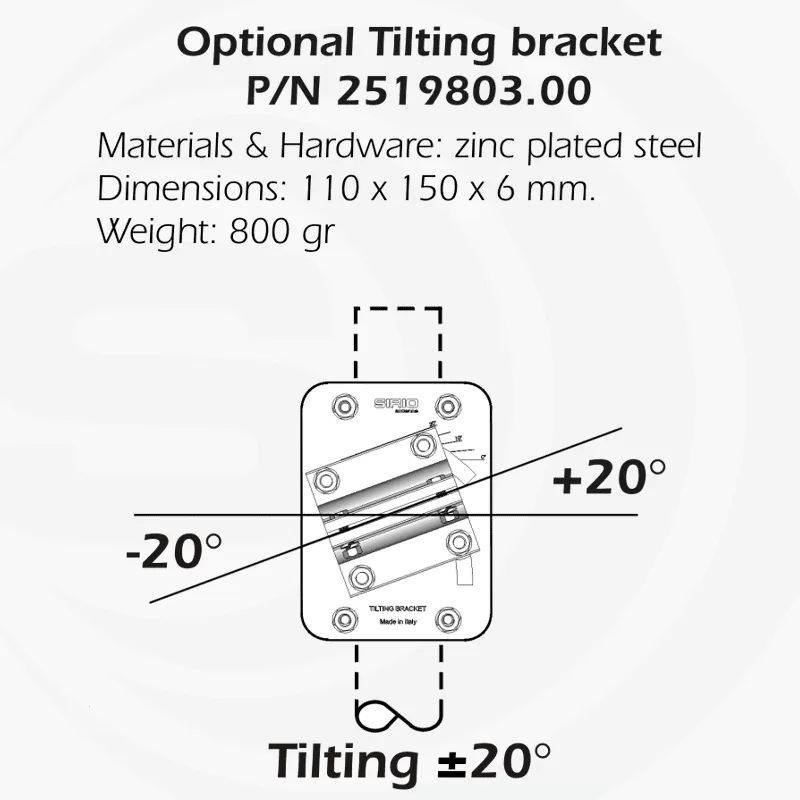

• Mounting type:On-Mast

Frequency range:

• WY140-6N: 140-160 MHz @ SWR ≤1.5 No tuning required
• WY155-6N: 155-175 MHz @ SWR ≤1.5 No tuning required

Mechanical Data:

• Materials:Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber

Dimensions (approx):

• WY140-6N: 2010 x 1085 mm / 6.59 x 3.56 ft
• WY155-6N: 2010 x 985 mm / 6.59 x 3.23 ft

Weight (approx):

• WY140-6N: 2440 gr / 5.38 lb
• WY155-6N: 2390 gr / 5.27 lb
