FEATURES:
– Base station antenna, Wide-band
– Unity-gain, Omnidirectional
– Suitable for land and marine service
– Protection from static discharges DC-Ground
– Perfect protection against the worst weather conditions
– Designed to work without Ground Plane
– Stainless steel hardwares
Part Number: P/N 2115020/145
ELECTRICAL DATA:
– Type: dipole
– Frequency range @ SWR ≤ 1.5: 145-175 MHz
– Impedance: 50Ω
– Radiation (H-plane): 360° omnidirectional
– Radiation (E-plane): beamwidth @ -3 dB = 78°
– Polarization: linear vertical
– Gain: 0 dBd – 2.15 dBi
– Max. Power (CW) @ 30°C: 100 Watts
– Grounding protection: All metal part are DC-grounded, the inner conductor shows a DC-short
– Connector: N-female with rubber protection cap
MECHANICAL DATA:
– Materials: White fiberglass radome Ø 28.6mm, anodized 6063-t5 aluminium, brass, stainless steel, copper, EPDM rubber
– Wind load / resistance: 53 N @ 150 Km/h / 180 Km/h
– Wind surface: 0.044 m²
– Height (approx.): 1380 mm
– Weight (approx.): 1315 gr
– Operating temperature: -40°C to +80°C

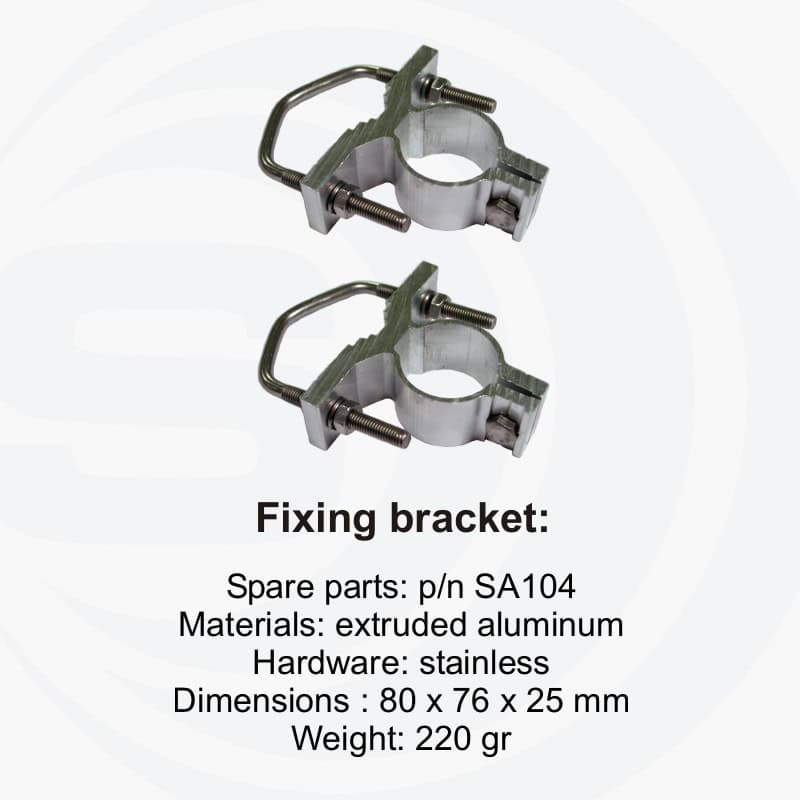

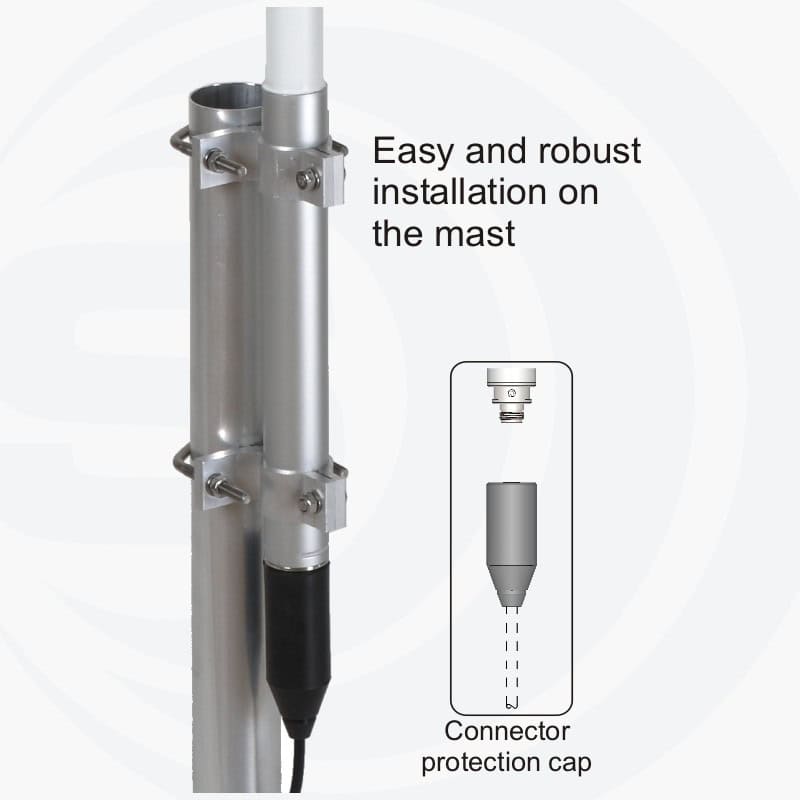

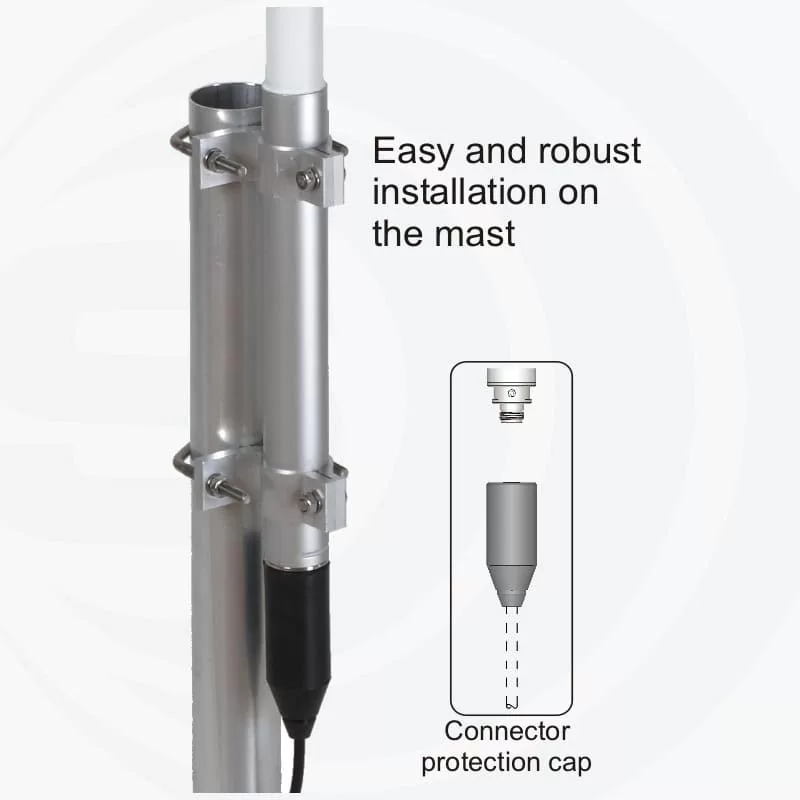

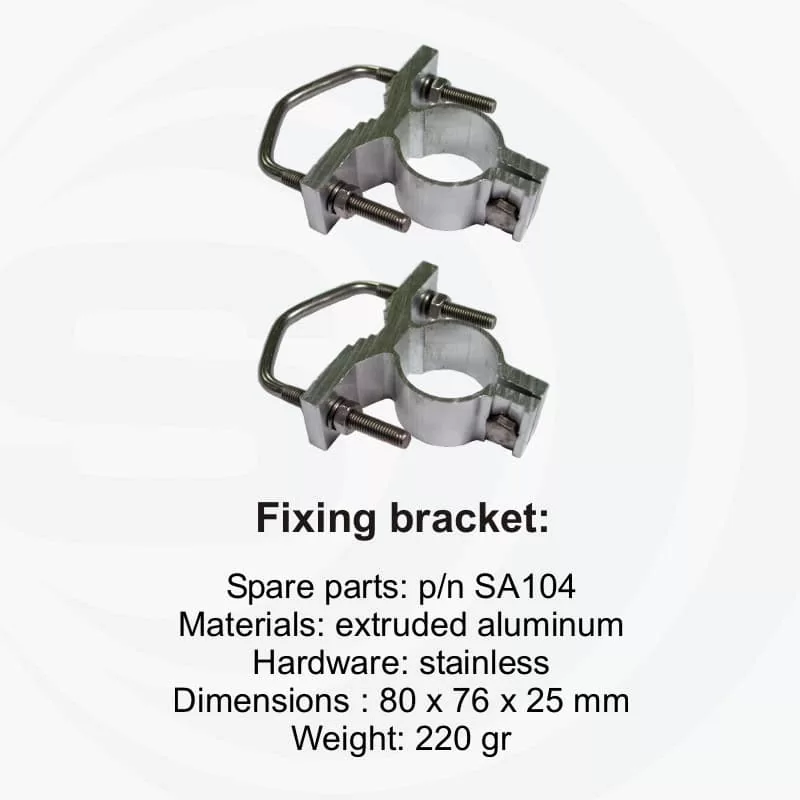

– Mounting mast: Ø 35-54 mm
