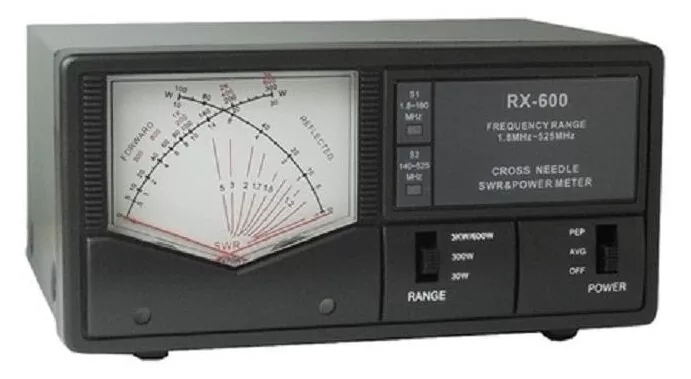

MAAS RX-600 SWR & PWR Meter

Cross needle SWR/POWER meter with two separate inputs & outputs. Input 1 = 1.8 to 160 MHz / Input 2 = 140-525 MHz.

Specifications:

• Frequency range 1.8 – 160 MHz / 140-525 MHz
• Performance 0.5 W – 3 KW (switchable 30 W / 300 W / 3KW)
• Minimum power for SWR measurement: 0.5 W
• Measurement accuracy @ 30W Range: / -5% @ 300W
• Range: / -5% @ 3KW Range: / -7.5%
• Equipment illuminated display (13.8 V DC required for back lighting)
• Status LED for input 1 or 2 AVG / PEP

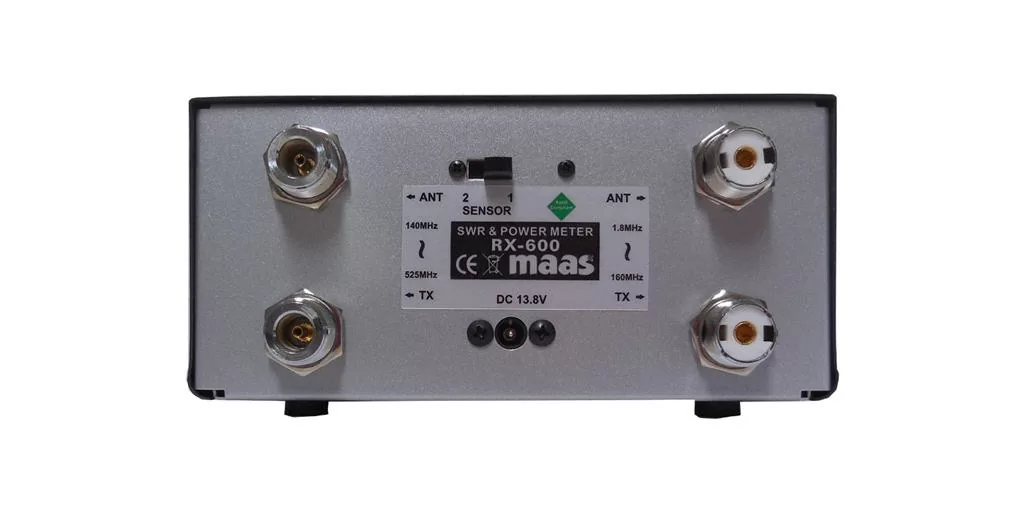

• switching DC cable included Connections N-female connectors (for 140-525 MHz)
• SO 239 connectors (for 1.8 – 160 MHz)
• Insertion loss: 0.2 dB
• Dimensions (W x H x D in mm) 150 x 65 x 100 (without protruding parts)
• Weight approx 720g
