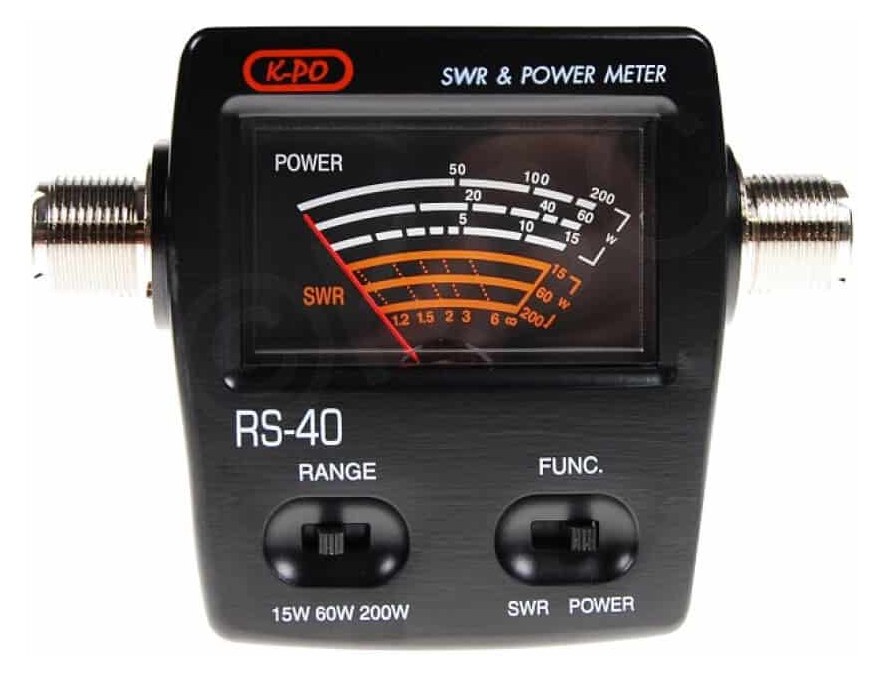

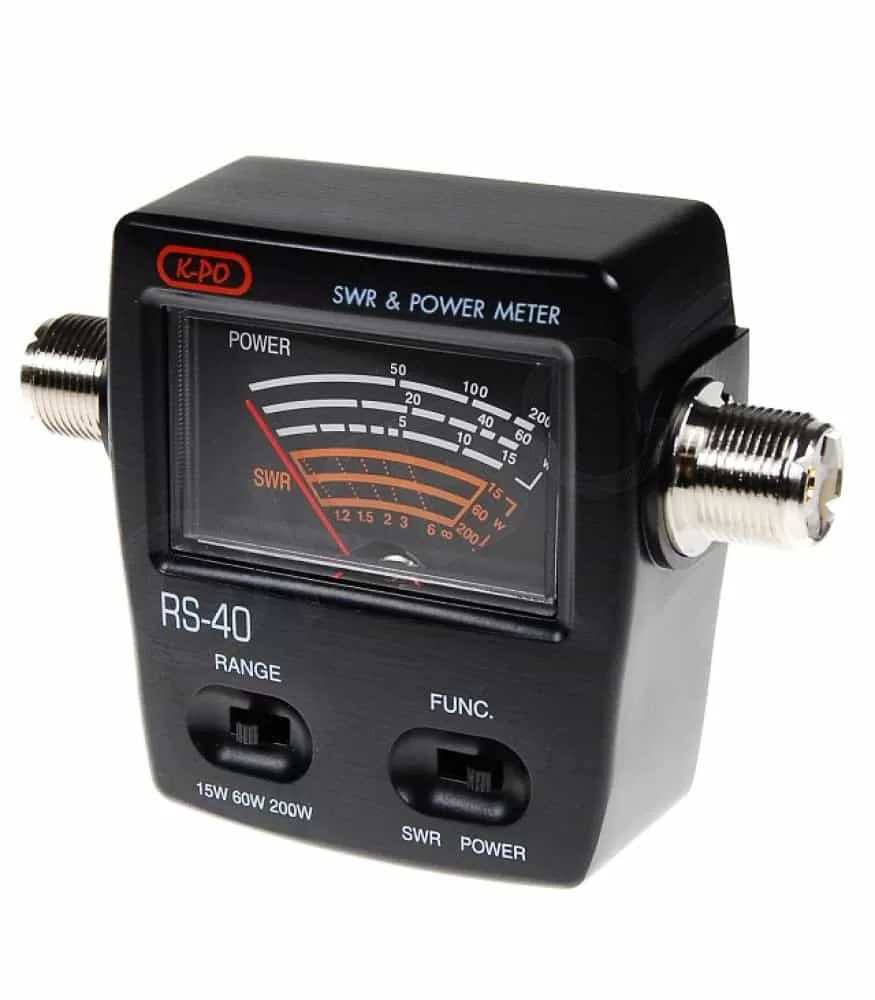

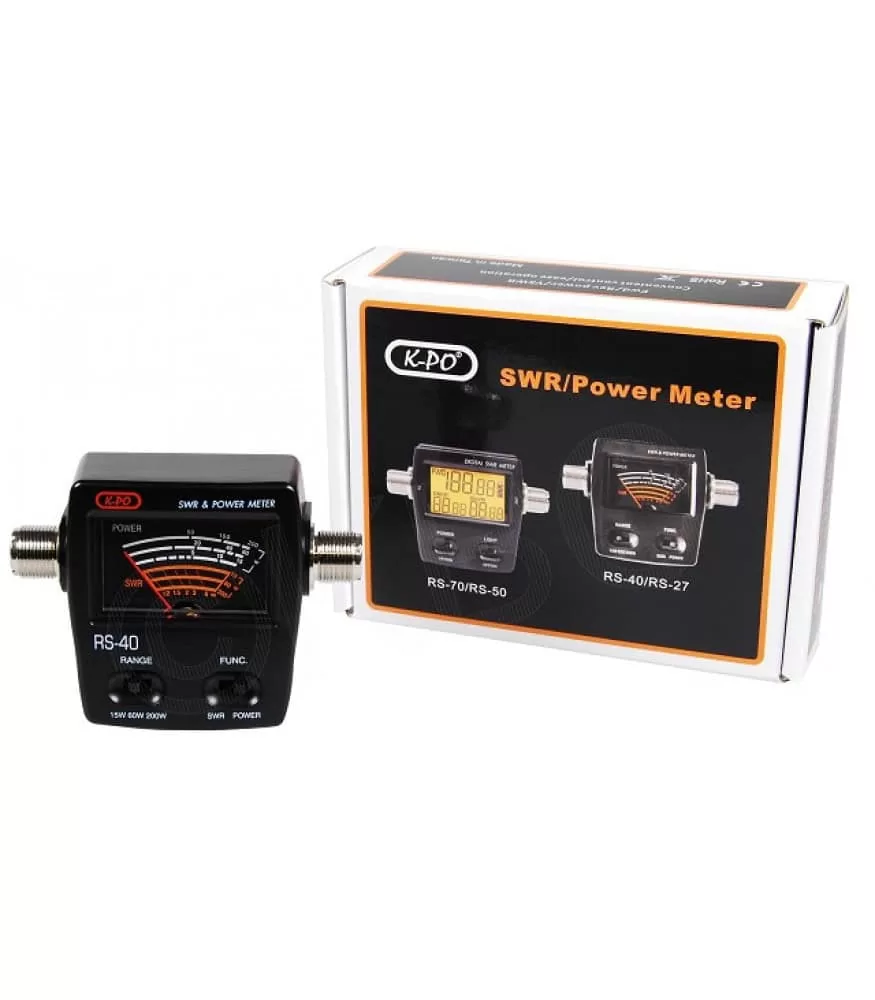

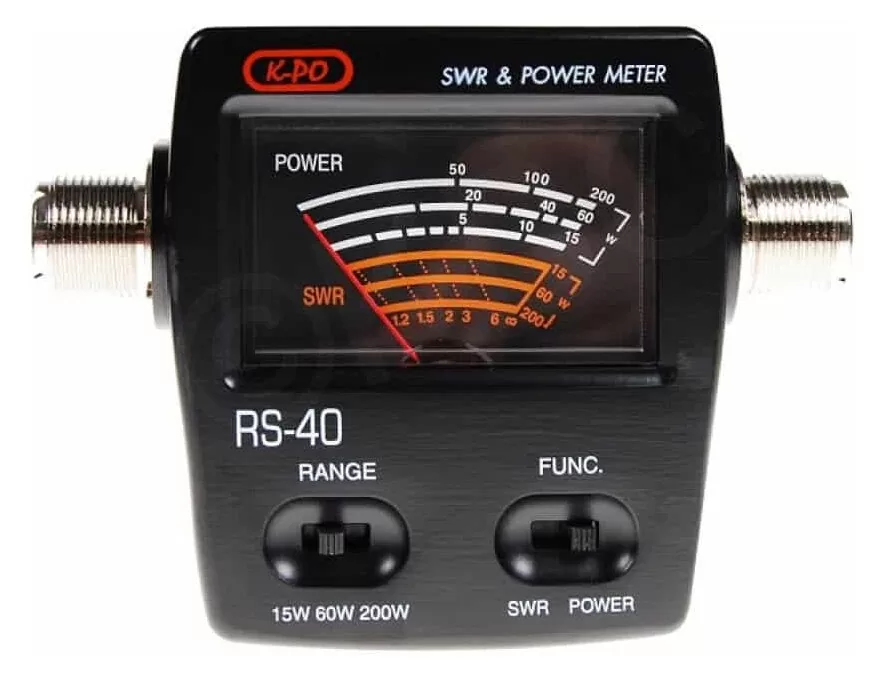

K-PO RS-40 SWR & Watt Meter 140-150 / 430-450 MHz

Features:

• Clear analogue meter
• Direct read out without calibration
• Low insertion loss structure, can be connected permanently in your setup

Specifications:

• Frequency range: 140-150 / 430-450 MHz
• Measurable power range: 0-200W (15/60/200W switch)
• Maximum power: 200W
• Accuracy 15W range: +/- 10% (AVG)
• Accuracy 60/200W range: +/- 5% (AVG)
• Minimum power for measurement: 1W
• Insertion loss: 0.3 dB or lower
• Testing functions: Forward, SWR
• Impedance: 50 Ohm
• Dimensions (W x H x D): 70 x 78 x 30 mm
• Weight: 180 gram

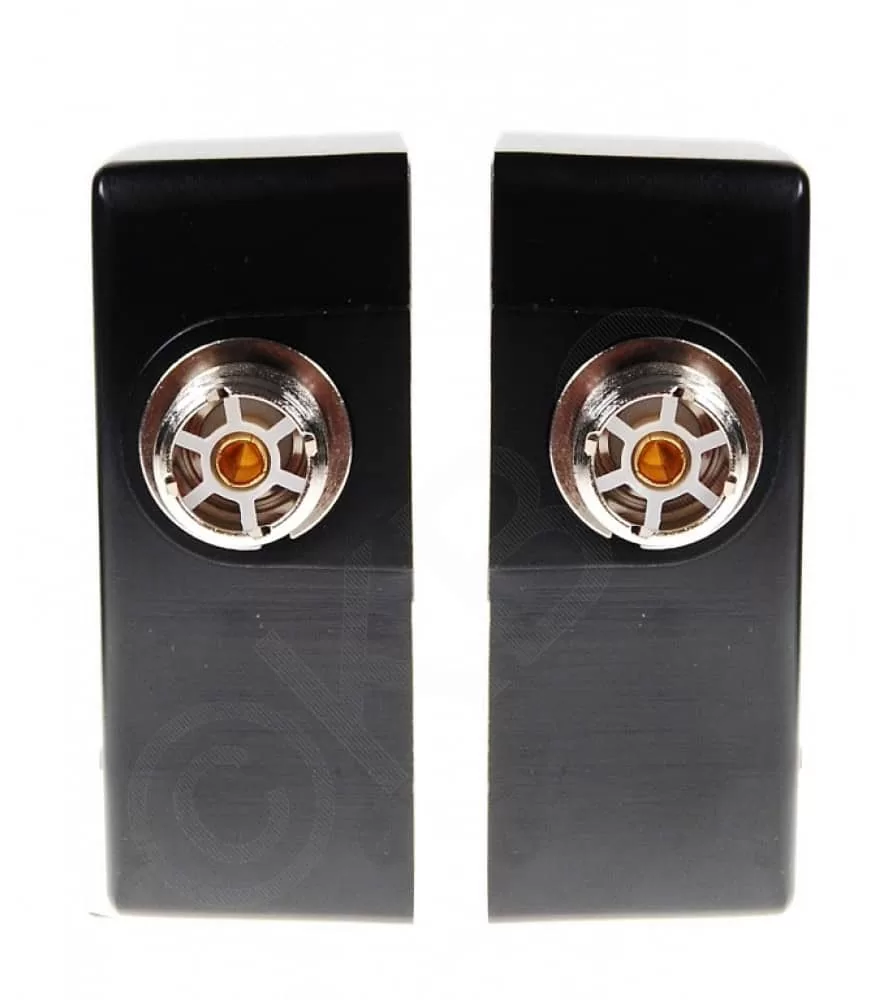

• Connectors: 2x SO-239 (UHF-female)
