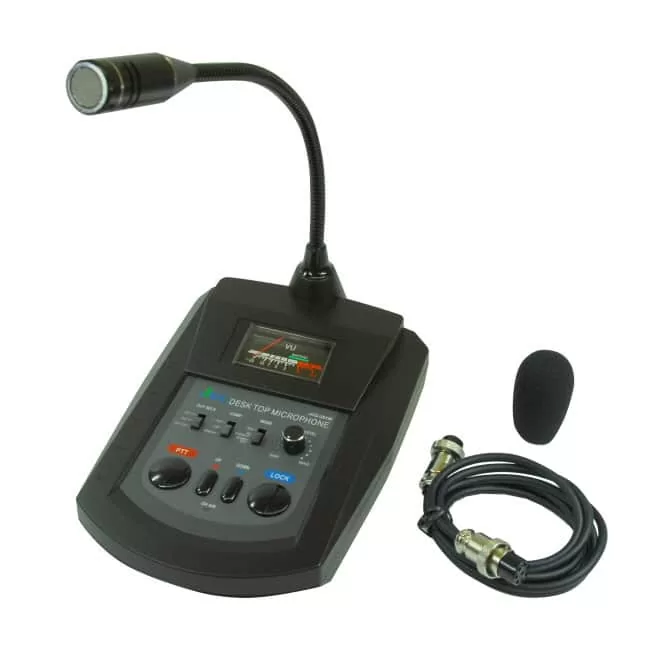

JCD-201M Μικρόφωνο Βάσεως 8P

A new high spec base station microphone suitable for both Amateur radios and modern CB radios.
Supplied with 1 lead, wired to suit your radio. Extra leads are available (see below).

• Selectable for 2 sets of transceivers at once by slide switch.
• High Sensitivity Electret Condenser Microphone Element.
• High Quality Compressor Amplifier ( High – Low selectable ) built-in. It sends out constant and optimum level without distortion regardless of audio input level.
• Equipped with FM/SSB Audio Quality Selector Switch for optimum operation. The Electret Condenser Microphone ensures clearer voice quality in FM position and better voice quality on SSB.
• Non-Modulation Prevention Circuit built-in.
  After continuous transmitting for a few minutes, the alarm circuit will be activated with alarm sound for 30 seconds. Then, the condition returns to receiving mode automatically.
• Battery-Check Circuit built-in.
  Turn the power switch on ( by selecting ”FM’ or ”SSB” position ), and the level meter indicates the battery condition with power voltage for a few seconds.]
• Optional Foot Switch
  Optional foot switch can be plugged into the socket on the rear of the microphone for foot operated PTT.Amplification:
  High – 45dB
  Low – 35dB
  ManualDual Microphone Connectors Output:
• Output A 8 Pin Standard Microphone Plug
  Output B 8 Pin Standard Microphone Plug
  Front panel switch controlled.Meter – Dual DisplayVU (Volume Unit)
  Battery Indicator
  1-1/2″ H x 2″ WButtons :

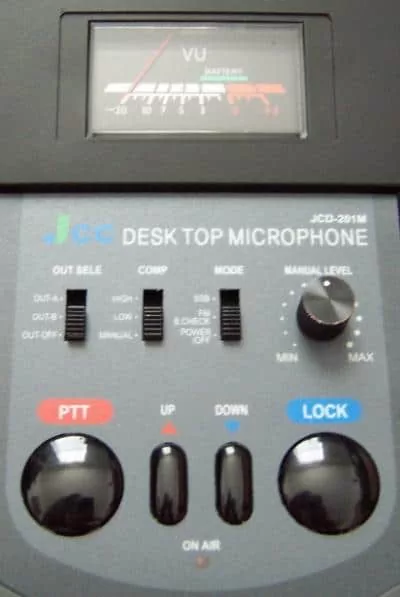

  Output Select :  [Out A] [Out B] [Out-Off] Compression Level:   [High] [Low] [Manual] Manual Compression Control Knob:  [Minimum] [Maximum] Mode:  [SSB] [FM] [Battery-Check] Channel Control Switch:  [Up] [Down] Key Controls:  [PTT] [Lock]Output Voltage:
  Amplification – 0.3mv (Lapse)
  Variable Amplification: 0-70mv(Lapse)Output Resistance:
  500 Ohm – 100 kOhmBatteries Required:
  3 ~ AAA
