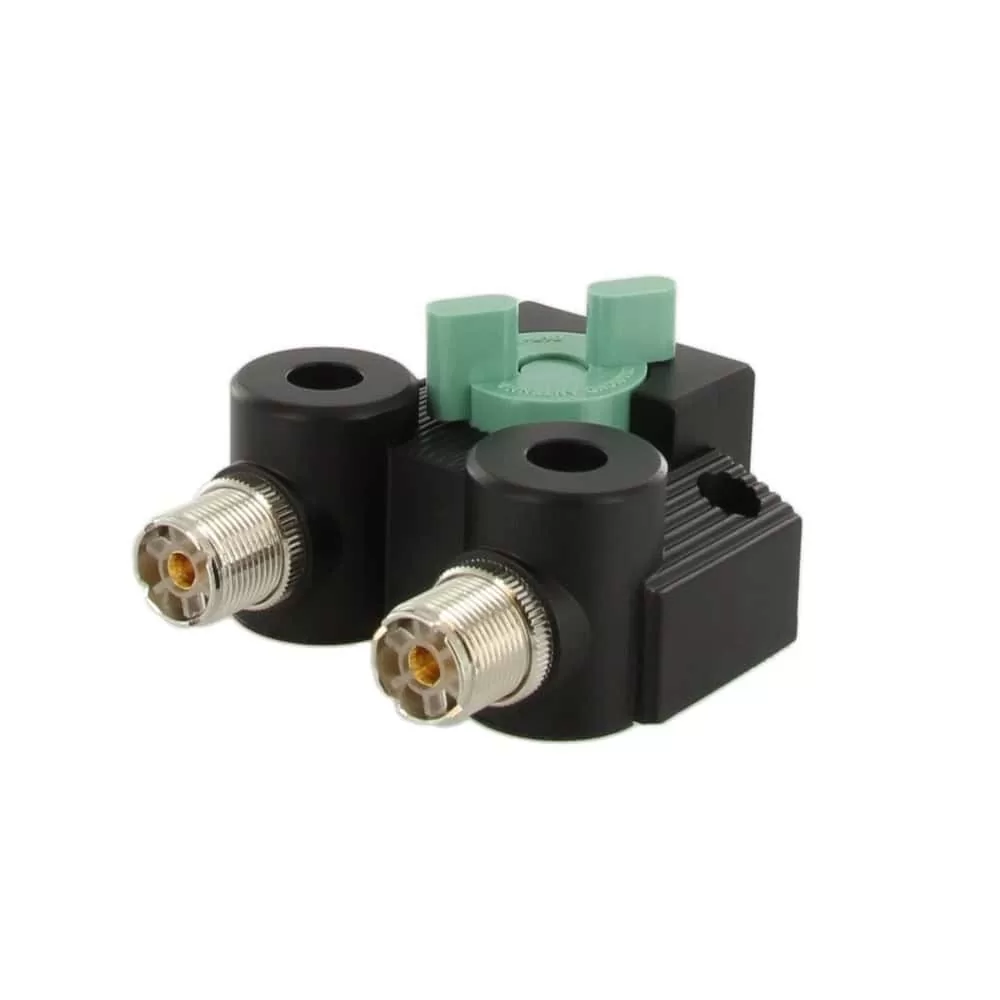

Diamond CX-210A Ομοαξονικός διακόπτης 2 θέσεων) SO-239 SOCKETS

The Diamond CX-210A 2-way Coax Switch SO-239 sockets 2-way Coax Switch * Sockets SO-239* Power 1.5kW (DC-30MHz), 1kW 30-150MHz, 500W (150-500 MHz), 250W (500-1000MHz) * Isolation 70 dB at 200MHz, 60dB at 1000MHz* Range DC-1000MHz* Size 71 x 57 x 42mm * Weight 440g.

Specifications:

• Frequency: 0-3000 MHz
• Power : 0-    30 MHz: 1500 watts CW
• Power: 30-  150 MHz: 1000 watts CW
• Power   150-  500 MHz: 500 watts CW
• Power   500-1000 MHz: 250 watts CW
• Power 1000-3000 MHz: 150 watts CW
• Insertion Loss: 0-   500 MHz: 0.05 dB
• Insertion Loss: 500-1000 MHz: 0.1 dB
• Insertion Loss: 1000-2000 MHz: 0.15 dB
• Insertion Loss: 2000-3000 MHz: 0.2 dB
• Isolation: 0-   200 MHz: 70 dB
• Isolation: 200-1000 MHz: 60 dB
• Isolation: 1000-2000 MHz: 55 dB
• Isolation: 2000-3000 MHz: 50 dB
• Impedance: 50 ohms
