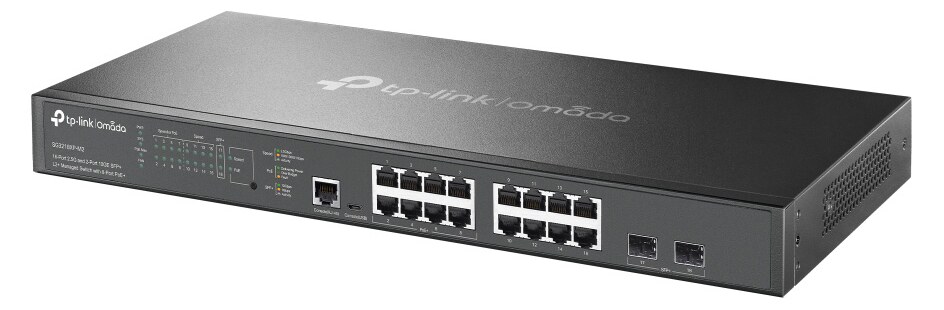

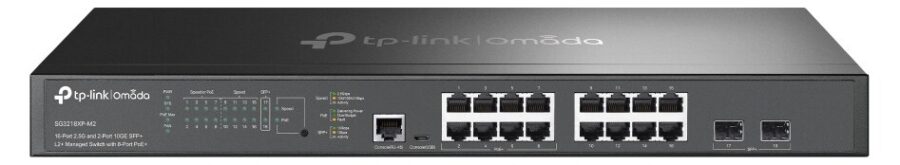

TP-LINK L2+ managed switch SG3218XP-M2, 16x 2.5Gbps θύρες, PoE+, V1.0

TP-LINK L2+ managed switch SG3218XP-M2, 16x 2.5Gbps θύρες, PoE+, V1.0

Υποστήριξη IP-MAC-Port Binding, ACL, Port Security, προστασία DoS, Storm Control, DHCP Snooping, 802.1X, Radius Authentication και επιπλέον μηχανισμούς ασφαλείας.

Quality of Service: priority queues, 802.1p CoS/DSCP priority, Queue scheduling, SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR, Bandwidth Control, Port/Flow-based Rating Limiting, Smoother Performance, Action for Flows: QoS remark (802.1P Remark, DSCP Remark)

L3 Features: 32 IPv4/IPv6 Interfaces, Static Routing, 48 static routes, Static ARP, 128 Static Entries, Proxy ARP, Gratuitous ARP, DHCP Server, DHCP Relay, DHCP Interface Relay, DHCP VLAN Relay, DHCP L2 Relay

L2 and L2+ Features: Link Aggregation, static link aggregation, 802.3ad LACP, Up to 8 aggregation groups, containing 8 ports per group, Spanning Tree Protocol, 802.1d STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protect, BPDU Filter, Root Protect, Loopback Detection, Port based, VLAN based, Flow Control, 802.3x Flow Control, HOL Blocking Prevention, Mirroring, Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Tx/Rx/Both

L2 Multicast: IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, IGMP Authentication, IGMP Authentication, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast, MVR, Multicast Filtering: 256 profiles and 16 entries per profile

Advanced Features: Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule

VLAN: VLAN Group, Max 4K VLAN Groups, 802.1Q Tagged VLAN, MAC VLAN: 256 Entries, Protocol VLAN: Protocol Template 16, Protocol VLAN 16, GVRP, VLAN VPN (QinQ), Port-Based QinQ, Selective QinQ, Voice VLAN

Access Control List: Time-based ACL, MAC ACL, Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type, IP ACL, Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority, Combined ACL, Packet Content ACL, IPv6 ACL, Policy, Mirroring, Redirect, Rate Limit, QoS Remark, ACL apply to Port/VLAN

Security: IP-MAC-Port Binding, 512 Entries, DHCP Snooping, ARP Inspection, IPv4 Source Guard: 100 Entries, IPv6-MAC-Port Binding, 512 Entries, DHCPv6 Snooping, ND Detection, IPv6 Source Guard: 100 Entries, DoS Defend, Static/Dynamic Port Security, Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control, kbps/ratio control mode, 802.1X, Port base authentication, Mac base authentication, VLAN Assignment, MAB, Guest VLAN, Support Radius authentication andaccountability, AAA (including TACACS+), Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control

IPv6: IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 ACL, IPv6 Interface, Static IPv6 Routing, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications, DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

MIBs: MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB

Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller

Management Features: Web-based GUI, Command Line Interface (CLI) through the console port, telnet, SNMP v1/v2c/v3, Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP AutoInstall, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log

SG3218XP-M2

• TP-LINK L2+ managed switch SG3218XP-M2, 16x 2.5Gbps θύρες, PoE+, V1.0
• Το switch της TP-LINK σας επιτρέπει να επεκτείνετε το ενσύρματο δίκτυο σας με 16x 2.5Gbps θύρες και 2x SFP+ 10Gbps θύρες.
• Διαθέτει ανθεκτικό μεταλλικό σώμα και μπορεί να τοποθετηθεί σε rack.
• 16x θύρες RJ45 2.5Gbps

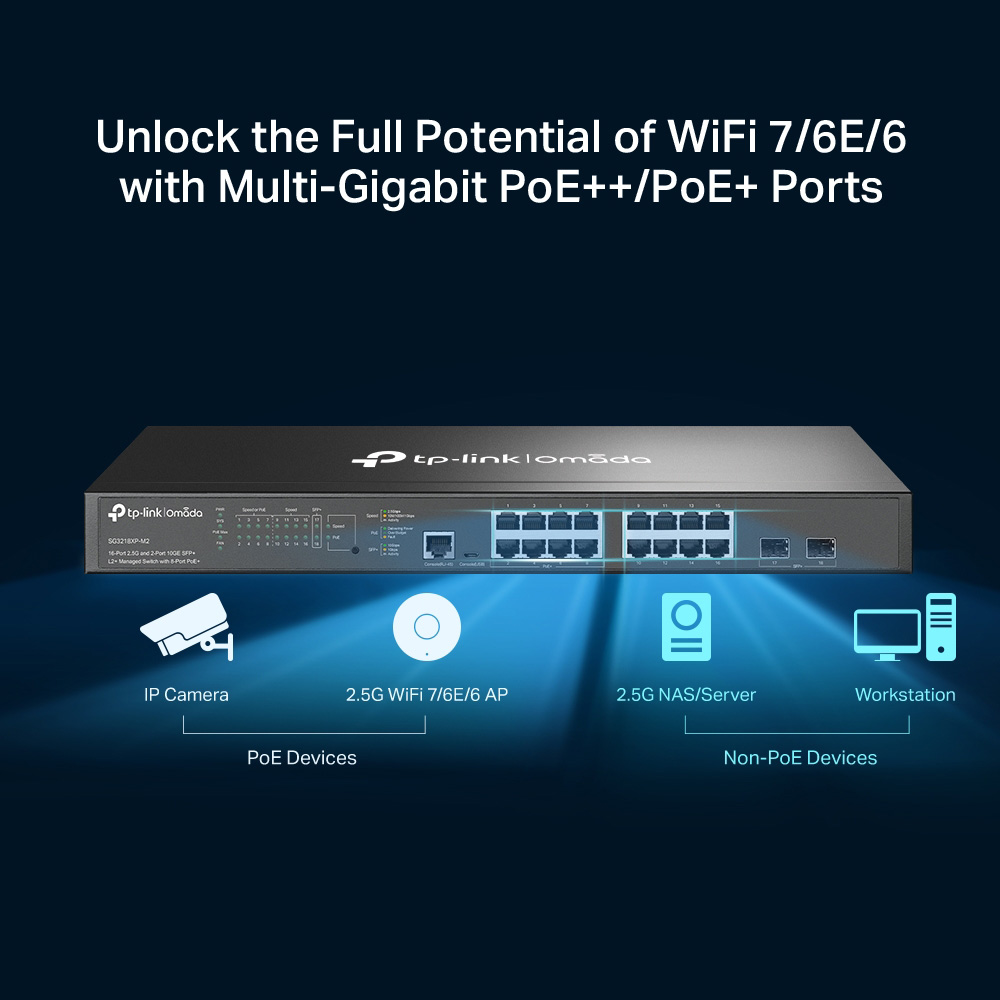

• Με 8 θύρες PoE+ 2.5Gbps και 8 θύρες 2.5Gbps χωρίς PoE, αξιοποιεί πλήρως τις δυνατότητες των access points WiFi 7/6E/6

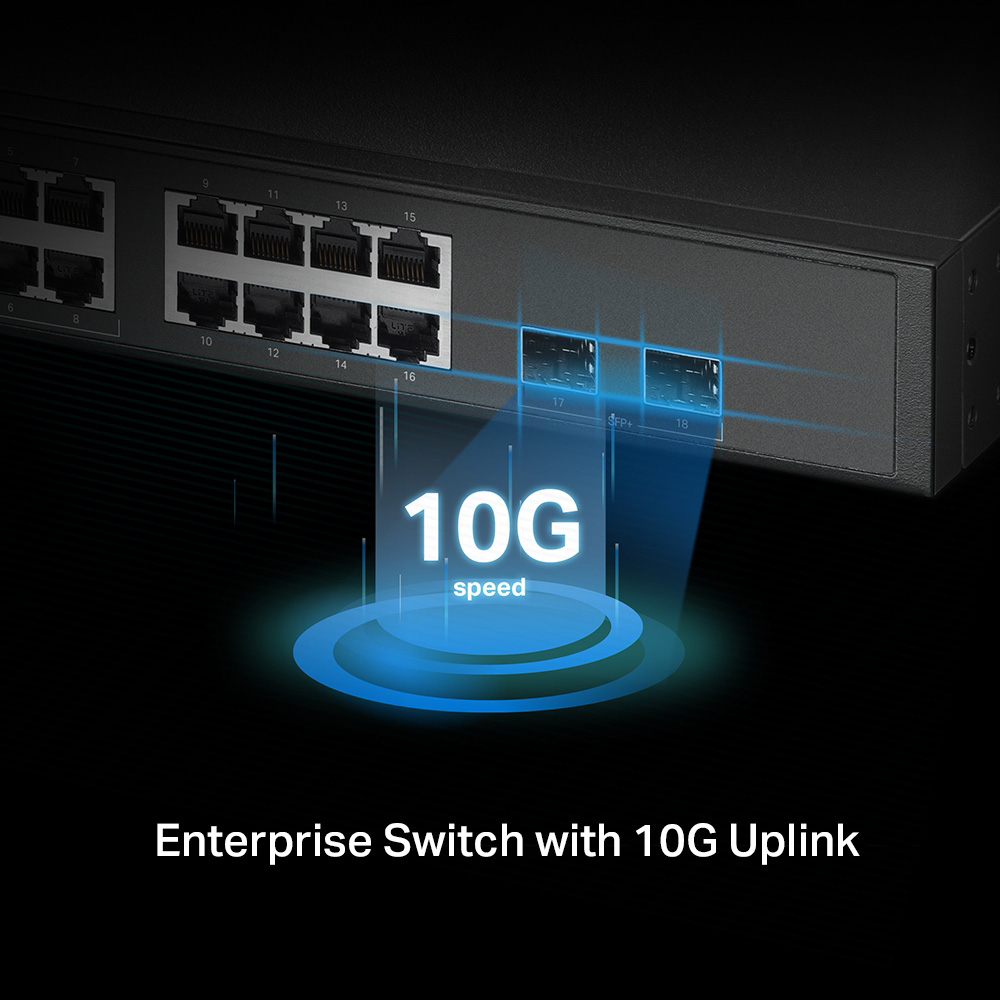

• 2x θύρες SFP+ 10Gbps
• Με 2 θύρες SFP+ 10Gbps για συνδέσεις υψηλού bandwidth.
• Ισχύς PoE 240W
• 8 θύρες PoE+ (802.3af/at) με συνολική ισχύ 240W για αξιόπιστη τροφοδοσία συσκευών.
• Κεντρική διαχείριση cloud
• Κεντρική διαχείριση μέσω cloud από web interface ή την εφαρμογή Omada.
• Static routing
• Βελτιστοποιεί τη δρομολόγηση της εσωτερικής κίνησης για αποδοτικότερη χρήση των πόρων του δικτύου.
• Ενισχυμένη ασφάλεια
• Βελτιστοποίηση φωνής & βίντεο
• Υποστήριξη QoS επιπέδων L2/L3/L4 και IGMP Snooping για ομαλή και απρόσκοπτη μετάδοση πολυμέσων.
• Συμβατή Εφαρμογή: TP-Link Omada
• APP για Android συσκευή https://play.google.com/store/apps/details?id=com.tplink.omada
• APP για iOS συσκευή https://apps.apple.com/app/tp-link-omada/id1327615864
• Τεχνικά χαρακτηριστικά
• Hardware Features
• Interface: 6x 2.5 Gbps RJ45 Ports, 2x 10G SFP+ Slots, 1x RJ45 Console Port, 1x Micro-USB Console Port
• Fan Quantity: 2

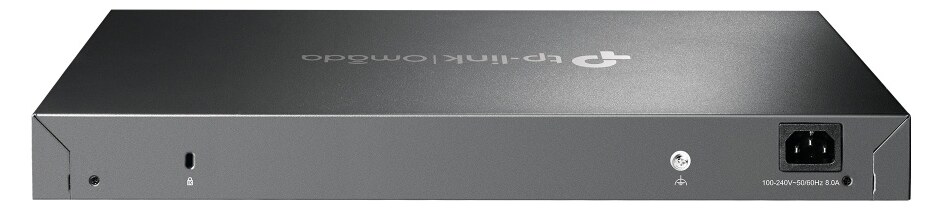

• Power Supply: 100-240 V AC~50/60 Hz
• PoE Ports (RJ45): Standard: 802.3at/af compliant, PoE+ Ports(802.3at PoE): 8 Ports, up to 30 W per port, Power Budget: 240 W
• Dimensions ( W x D x H ): 440 x 180 x 44mm
• Mounting: Rack Mountable
• Max. Power Consumption: 299.4 W (110V/60Hz)(with 240 W PD connected)
• Max. Heat Dissipation: 1021.64 BTU/h (110 V/60 Hz)(with 240 W PD connected)
• Performance
• Switching Capacity: 120 Gbps
• Packet Forwarding Rate: 89.28 Mpps
• MAC Address Table: 16 K
• Packet Buffer Memory: 12 Mbit
• Jumbo Frame: 9 KB
• Software Features
• Management Features
• Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
• Others
• Operating Temperature: 0 ~ 50 °C
• Operating Humidity: 10–90% RH non-condensing
• Περιεχόμενα συσκευασίας
• Power Cord
• Rackmount Kit
• Rubber Feet
• Quick Installation Guide
