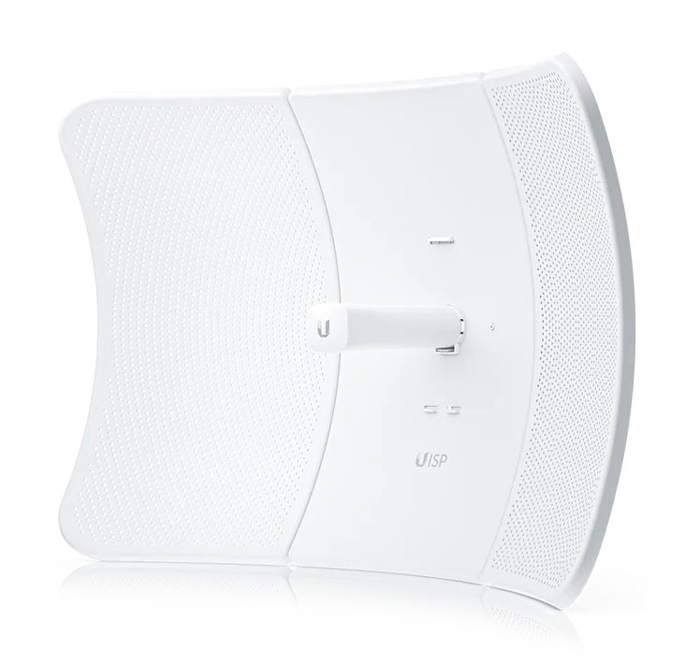

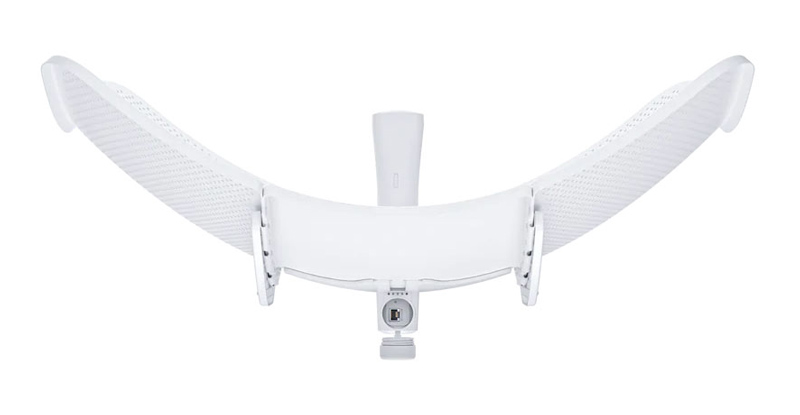

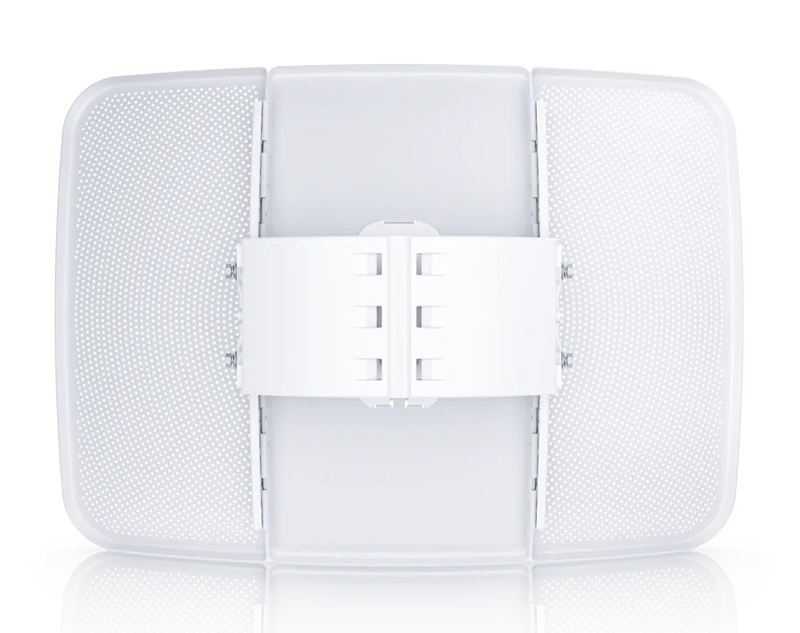

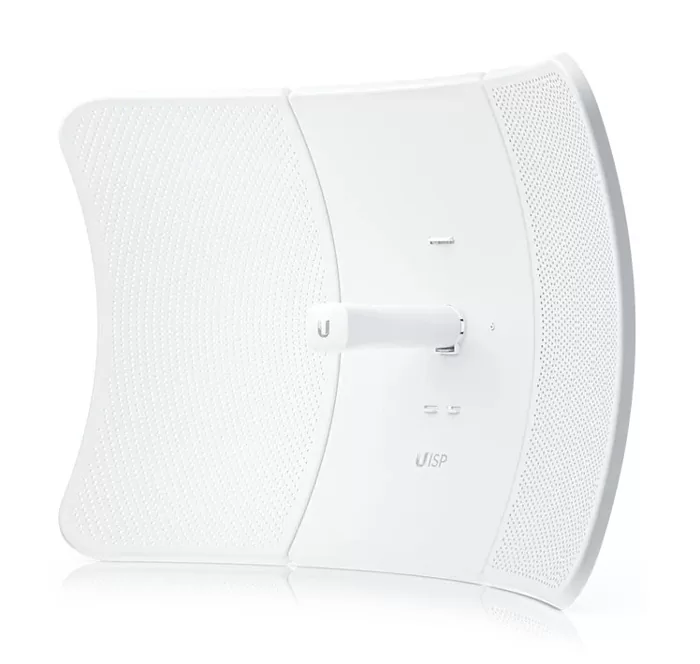

UBIQUITI CPE UISP airMAX LiteBeam LBE-5AC-XR, 450+ Mbps, 5GHz, IPX6

UBIQUITI CPE UISP airMAX LiteBeam LBE-5AC-XR, 450+ Mbps, 5GHz, IPX6

Το LBE-5AC-XR είναι ένα υψηλής απόδοσης CPE, εξωτερικού χώρου, σχεδιασμένο να προσφέρει γρήγορο ασύρματο δίκτυο σε μεγάλες αποστάσεις.

• UBIQUITI CPE UISP airMAX LiteBeam LBE-5AC-XR, 450+ Mbps, 5GHz, IPX6
• Χάρη στην ενσωματωμένη κεραία υψηλής απολαβής, παρέχει ταχύτητες έως 450+ Mbps στη συχνότητα 5 GHz.
• Ρυθμίζεται εύκολα μέσω smartphone και της εφαρμογής UISP Mobile.
• Proprietary airMAX ac chipset
• Ultra-lightweight aluminum alloy and UV-stabilized polycarbonate
• High-gain antenna with InnerFeed technology
• Establishes high-speed, extremely-long-distance links
• Integrated GPS
• Link planning support via ISP Design Center
• Dedicated management radio for quick device setup via the UISP Mobile app
• Συμβατή εφαρμογή: UISP Mobile
• APP για Android συσκευή: https://play.google.com/store/apps/details?id=com.ubnt.umobile&hl=el&gl=US
• APP για iOS συσκευή: https://apps.apple.com/us/app/uisp-mobile/id1183022489
• Τεχνικά χαρακτηριστικά
• Hardware
• Networking interfaces: (1) GbE RJ45 port
• Button: Factory reset
• LEDs: Power/ethernet
• RF connections: Internal
• Max. power consumption: 7W
• Power method: Passive PoE 2-pair (4, 5+; 7, 😎
• Power supply: 24VDC, 0.5A Gigabit PoE adapter (included)
• Supported voltage range: 22-26VDC
• Operating temperature: -40 to 70°C
• Operating humidity: 5 to 95% non-condensing
• System
• Maximum throughput: 450+ Mbps
• Encryption: WPA2-PSK (AES)
• Software
• OS: airOS®
• Modes: PtMP, PtP
• Services: SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
• Utilities: airView®, speed test, alignment, discovery, ping, traceroute, constellation
• Management interface: Dedicated management radio for quick device setup via the UISP™ Mobile app, WEB UI
• Minimum software requirements: Modern Web browser or Android/iOS smartphone
• RF
• Operating frequency: 5.15 to 5.85 GHz, Depends on regulatory region.
• Max. conducted TX power: 25 dBm
• Management radio: 2400 – 2483.5 MHz
• Channel bandwidth: 10/20/30/40/50/60/80 MHz
• Antenna Gain: 29 dBi
• Isolation: 20 dB
• Beamwidth: HPOL: 3 dB: 5.5°, 6 dB: 7.5° / VPOL: 3 dB: 5.5°, 6 dB: 7.5° / Elevation: 3 dB: 5.5°, 6 dB: 7.5°
• Electrical downtilt: 0°
• Mechanical
• Dimensions: 747 x 525 x 347 mm
• Weight: 3.2 kg
• Enclosure materials: Aluminum alloy, UV stabilized polycarbonate
• Mount material: UV stabilized polycarbonate
• Mount: Integrated pole mount (included), Pole compatibility: Φ35-60 mm
• Wind loading: 1100 N at 200 km/h (247.29 lbf at 125 mph)
• Weatherproofing: IPX6
• Περιεχόμενα συσκευασίας
• Reflection panels
• Pivot panels
• LiteBeam AC XR InnerFeed
• Rear housing
• Mounting bracket
• Hardware kit
• Metal straps
• Gigabit PoE adapter (24V, 0.5A)
