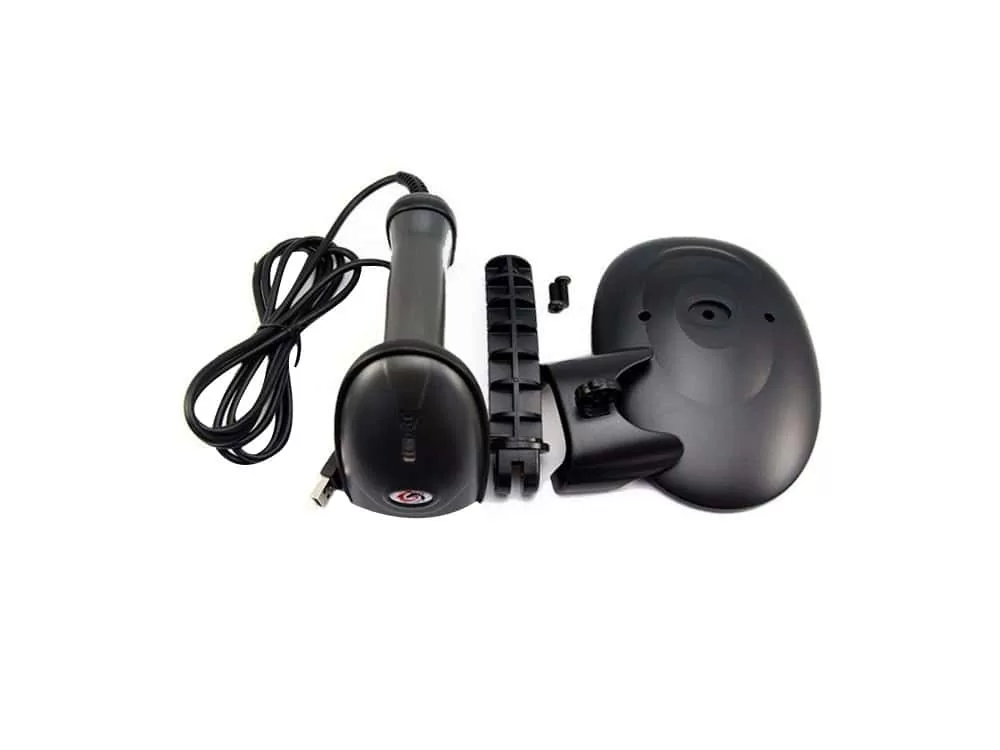

XL-6322 Barcode Scanner

Model Number: XL-6322A

• Light Source: Visible Laser Diode 650nm
• Scan Pattern: Single Scan
• Decode Rate: 300 times/second
• Scan Precision: 3mil
• Scan Width: 30mm scan window, 220mm@200mm
• Scan Depth of Field: 0-330mm (0.33mm pcs0.9)
• Elevation Angle: 65°
• Deflection Angle: 55°
• Support Interface: PS-2(KB); RS-232; USB-HID; USB-Virtual COM
• Print Contrast: 10% UPC/EAN 100>#/strong###
• Mention Pattern: Buzzer, Indicator
• Scan Mode: Automatic & Continuous & Manual
• Size: L × W × H: 175mm × 73mm × 102mm
• Weight: 246g
• Material: ABS+PC
• Voltage: 5VDC
• Operating Current: 85mA
• Static Current: 30mA
• Laser Class: Meet the Grade I National Criteria for Laser Safety
• EMC: CE& FCC DOC compliance
• Operating Temperature: – 0°C to 50°C
• Storage Temperature: – 40°C to 70°C
• Humidity: 5% to 85% relative humidity, non-condensing
• Light Levels: Daylight,3000-8000LUX
• Shock: Designed to withstand 1.5M drops

Decoding Capability: EAN-8/EAN-13/UPC-A/UPC-E/Code 39/Code 93/Code 128/EAN128/Codaber/Industoal 2 of 5/ Interleave 2 of 5/Matrix 2 of 5/MSI。
