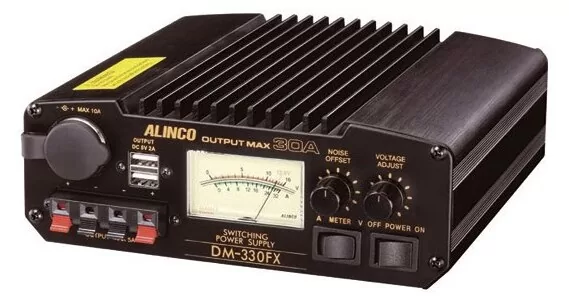

Alinco DM-330FXE Switch Mode Power Supply with USB ports (30 Αmpere)

DM-330FXE

This switch mode power supply packs a lot of features into a compact, lightweight design that boasts a 9-15VDC variable output and delivers up to 25 amps, 30 peak, and a pair of front panel mounted USB ports too.

Unlike a lot of imported switch mode supplies, the DM-330FXE is electrically very quiet, and if you do find noise, the patented Noise Offset Circuit lets you move any offending noise to another frequency.

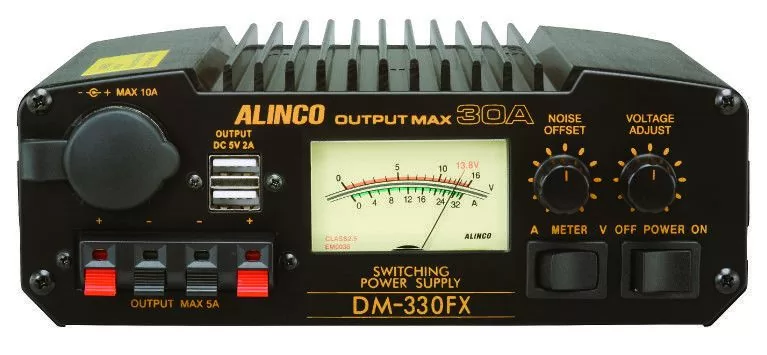

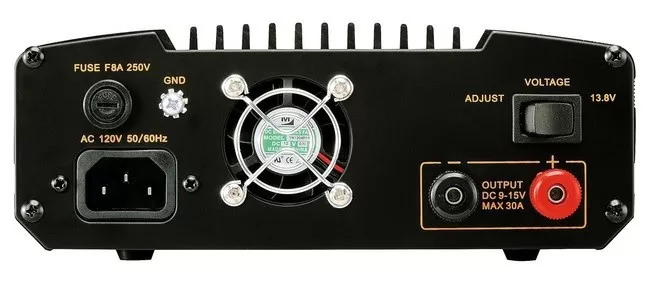

Other features include a large, illuminated volt/amp meter, rear panel binding posts (30A peak),front panel cigar plug type outlet (10A), 2 x pairs of snap-in terminals (5A Max)
and 2 x USB ports (2A Max), and front panel voltage adjust control.

• DM-330FXE
• 25-30A switch mode power supply
• Input Voltage : 240VAC
• Output Voltage : 9~15VDC variable
• Output Voltage Variation :  Less than 3%
• Protection : short circuit, automatic current limiting over 30A, over temperature
• Output Current : 30A (Max), 25A (Continuous)
• Ripple : less than 50m Vp-p at rated load
• Fuse : 4A (FXE)
• Meter : single volt / current meter, backlit
• Size : 190 x 69 x 181mm  WHD
• Weight : Approx 2.5kg with AC lead
• Warranty :1 year
