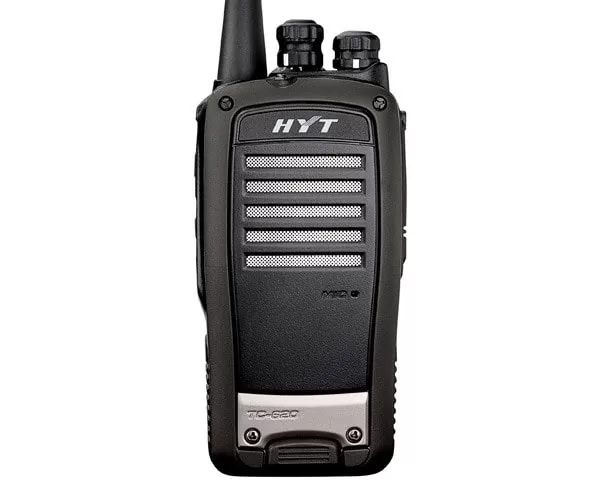

Hytera TC-620 Φορητός επαγγελματικός πομποδέκτης VHF ή UHF

• Hytera TC-620 is an analogue, licenced radio from Hytera
• The HYT TC620 is a tough durable portable radio that has advanced speaker protection technique.
• The TC620 has superior audio and is ideal for use in the Property management, logistics and warehousing Hospitality, restaurant, supermarket and service industry.
• HYT TC-620 | The HYT TC-620 from Apex Radio Systems Ltd is a tough durable portable radio that has advanced speaker protection technique. It has superior audio and is ideal for use in the Property management, logistics and warehousing Hospitality, restaurant, supermarket and service industry.
• The TC620 UHF radio has 5 watts transmit power, higher than most other UHF handportables available.
• The HYT TC-620 from Apex Radio Systems Ltd offers traditional analogue communications in a small lightweight package at an affordable cost.

Τεχνικά χαρκτηριστικά

Frequency Range	136-174MHz; 400-420/420-450/440-470/450-470/470-490MHzMHz
Channel Capacity	16
Channel Spacing	25 /12.5KHz
Operating Voltage	7.4V
Standard Battery	1200mAh (Li-ion)
Battery Life (5-5-90 Duty Cycle)	More than 9 hours (1200mAh) More than 14 hours (2000mAh)
Frequency Stability	±2.5ppm
Antenna Impedance	50Ω
Dimensions (H×W×D) (with battery, without antenna)	117mm×54mm×31mm
Weight (with antenna & battery)	275 g
Transmitter
RF Power Output	5W/2W
Modulation	F3E
Spurious and Harmonics	-36dBm<(1GHz) -30dBm>(1GHz)
FM Noise	40/35dB
Audio Distortion	≤5 %
Receiver
Sensitivity	0.25/0.28 μV
Selectivity	70/60dB
Intermodulation	≥60dB
Spurious Response Rejection	≥70dB
S/N	45/40dB
Rated Audio Power Output	800mW
Rated Audio Distortion	≤5%

Super Features

·Superior Audio Clarity

A 40mm diameter speaker and high audio power can ensure clear, crisp and strong audio, even in noisy environments.

·Reliable Mechanical Design

Battery latch is apt to become loose after long time use, and even occasionally causes your radio to shut off automatically. All these will affect your working efficiency. Hytera proprietary battery latch mechanism is applied to TC-620 radios. It delivers secure connection between battery and radio, no matter how long the radio has been in use.

·Enhanced Speaker Protection

An extra protecting stencil adds more protection for your radio speaker against hard substances such as iron nails and thin sticks, and also against water intrusion.

·Added Benefit for Your Business

The TC-620 abandons conventional black body, and employs fashionable grey rubber housing as well as a metal nameplate, to add more benefit for your business.

Main Features

·High/Low Power Switchable

By simple pressing one button, users can switch to low power when communicating within limited range coverage or switch to high power when further distance is required. High transmit power optimizes range coverage while low transmit power conserves battery consumption, all at the user’s control.

·Programmable 12.5kHz / 25kHz Channel Spacing

The feature enables flexibility and easy migration of channel spacing requirements when the need arises, with no need to buy new radios.

·Monitor

Allows users to monitor the activity on the current channel. The feature is especially helpful for receiving a weak signal.

·Battery Save

The Battery Save feature is automatically activated once no activity on the channel and no operation performed, for extended operation time.

·Low Battery Alert

Alert users to recharge the battery should the battery level run low.

·Busy Channel Lockout

A channel already in use is not available to other users.

·Time-out Timer

The feature allows for more efficient use of channels by limiting the amount of time of each transmission.

·PC Programmable

You are able to customize the features of each radio for each user.

·Wired Clone

Easily copy the features of one radio to another.

·CTCSS/CDCSS

Set up workgroups/users with unique CDCSS/CTCSS to prevent unwanted conversations on the same frequency.

·Selectable Squelch Level (0-9)

Helps minimize interference from undesired weak signals and helps weak signals be heard.

·Channel Scan

The channel scan feature enables the radio to continuously scan each channel in the scan list for activity. Simply press a side function button to activate scanning. When activity is detected on a channel the scan process will stop and you will hear the transmission.

·Voice Operated Transmit (VOX)

Enjoy the convenience of hands-free operation when used with optional accessories.

Recommended Applications

·Property management

·Logistics

·Warehousing

·Hospitality

·Restaurant

·Supermarket

PRODUCT PACKAGE:

• Handportable
• Lithium Battery
• Charger
• Antenna
• Belt Clip
• Manual
