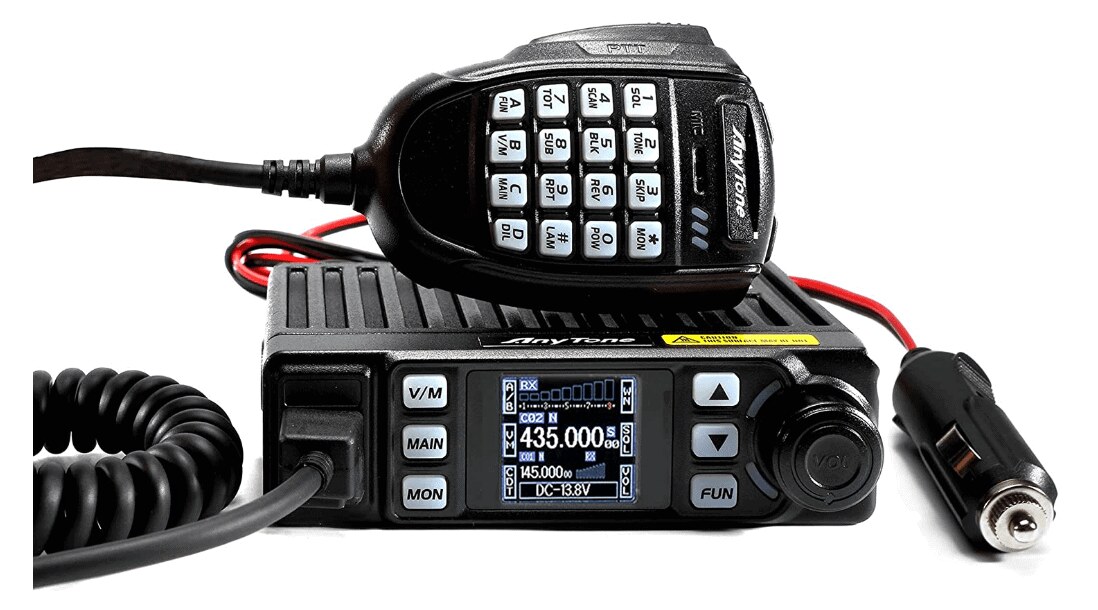

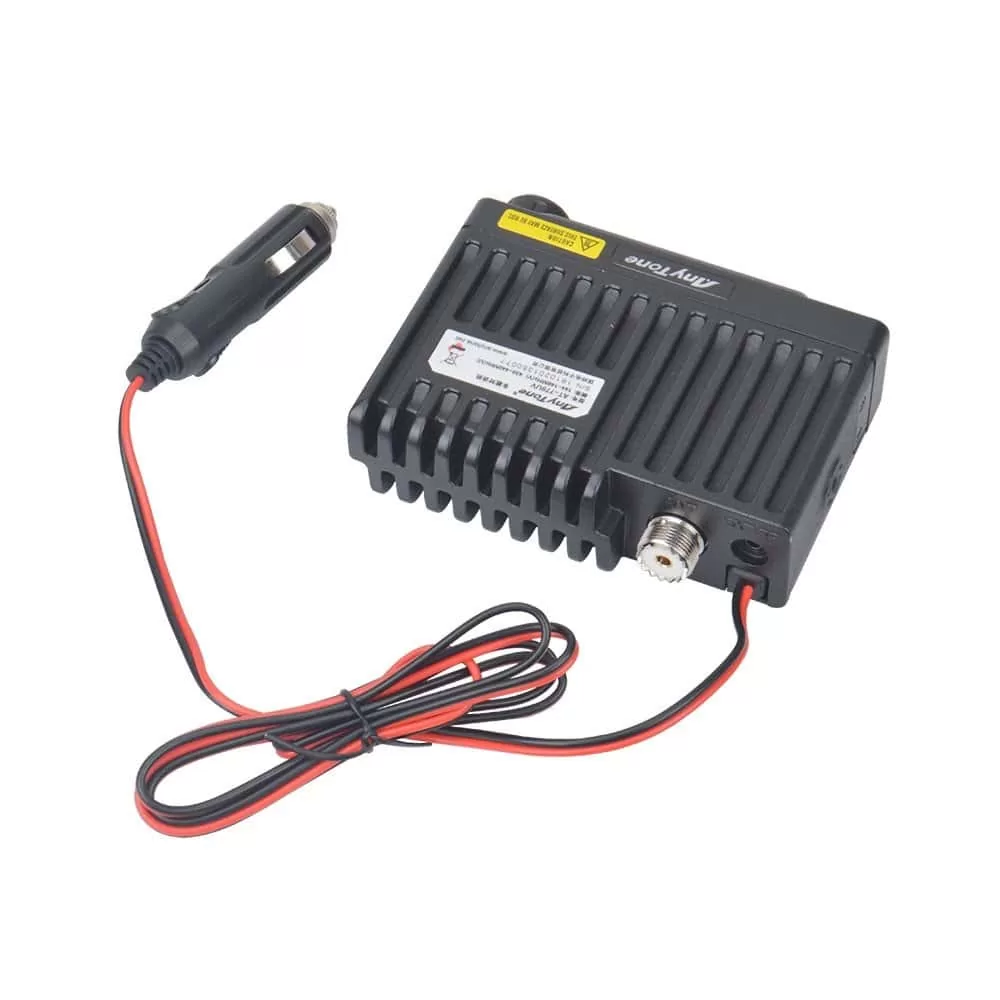

Anytone AT-779UV Mini VHF/UHF Mobile Radio

• Compander function
• Tone Pulse frequency
• Noise Reduction
• VOX functions
• Emergency Alarm
• Squelch Level setting

GENERAL SPECIFICATIIONS

1. Channel Spacing: 12.5K

2. Channel Number: 500 channels

3. Operating Voltage:DC13.8V±15%

4. Squelch: Carrier/CTCSS/DCS/5tone/2tone/DTMF

5. Frequency Stability: ±2.5ppm

6. Operating Temperature: -20℃~+60℃

7. Dimensions: 4.88” (W) x 3.97” (D) x 1.42” (H)

8. Weight: 1.88lbs (Main unit about 0.99lbs)

RECEIVER

1. Sensitivity (12dBm SINDA): ≤0.25μV (wide), ≤0.35μV (narrow)

2. Adjacent Channel Selectivity:≥70dB, ≥60dB

3. Audio Response: +1~-3dB (0.3~3KHz), +1~-3dB (0.3~3KHz)

4. Hum & Noise: ≥45dB, ≥40dB

5. Audio distortion: ≤3%

6. Audio power output: >2W@10%

TRANSMITTER

1. Output Power: 462.5625-462.7125MHz (5W), 462.550-467.725MHz (18W)

2. Modulation: 16KΦF3E, 11KΦF3E

3. Adjacent Channel Power: ≥70dB，≥60dB

4. Hum & Noise：≥40dB，≥36dB

5. Spurious Emission：≥60dB，≥60dB

6. Audio Response：+1~-3dB (0.3~3KHz)

7. Audio Distortion：≤5%
