Wouxun KG-UV8G Φορητός Πομποδέκτης VHF/UHF 10W

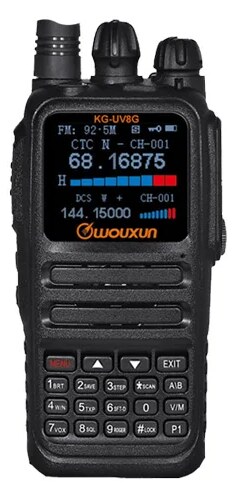

Wouxun KG-UV8G 2/4M Colour Screen Two Way Handheld Transceiver.

FEATURES:

• Memory Channels 999
• QT/DQT Encoding / Decoding , QT / DQT Scan
• VOX and SOS Funcion
• Multi Definition for Sidekeys
• Incoming Message Display Caller ID display
• DTMF Encoding and Decoding
• All Calls , Group Calls And Selective Calls
• Dual Display ,Two Independent Operation System
• Large Color Screen
• Duplex Work Mode and Dual Receiving
• Cross Band Repeater
• Power on Message Editable
• Wide / Narrow Bandwidth Selection (25KHZ / 12.5KHz)
• Chinese and English Voice Guide
• Chinese and English Screen Display
• Bright Flashlight illumination
• Reverse Frequency
• Single-Tone Pulse Frequency : 1000 / 1450 / 1750 / 2100Hz
• Stopwatch
• Remote Alarm
• Priority Scan Function
• Voice Compander

TECHNICAL SPECIFICATIONS:

Integration:

• Frequency Range: Suitable for Different Countries or Areas, 66-88MHz and 136-174MHz
• Step: 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
• Channel Number: 999
• Work Mode: F2D / F3E
• Operating Temperature: -20℃～+40℃
• Voltage: 7.4 VDC
• Antenna Impedance: 50Ω

Receiver:

• Adjacent Channel Selectivity; Wide ≤70dB, Narrow ≤60dB
• Inter Modulation: Wide ≤65dB, Narrow ≤60dB
• Spurious Response: Wide ≤70dB, Narrow ≤70dB
• Audio Response: Wide +1~-3dB(0.3~3KHz), Narrow +1~-3dB(0.3~3KHz)
• Signal to Noise Ratio: Wide ≥45dB, Narrow ≥40dB
• Audio Distortion: ≤5%
• Audio Power: ≤500mW
• Sensitivity UHF/VHF：0.25µV（12dB SINAD）

Transmitter:

• Adjacent Channel Selectivity: Wide ≥70dB, Narrow ≥60dB
• Type of Modulation: Wide 16K F3E, Narrow 11K F3E
• Spurious: Wide ≥60dB, Narrow ≥60dB
• Audio Response: Wide +1~-3dB(0.3~3KHz), Narrow +1~-3dB(0.3~3KHz)
• Max Frequency Deviation: Wide ±5KHz, Narrow ±2.5KHz
• Frequency Stability ±2.5PPM
• Audio Distortion ≤5%
• Output Power UHF: 8W / 5W / 1W , VHF: 10W / 7W / 1W
