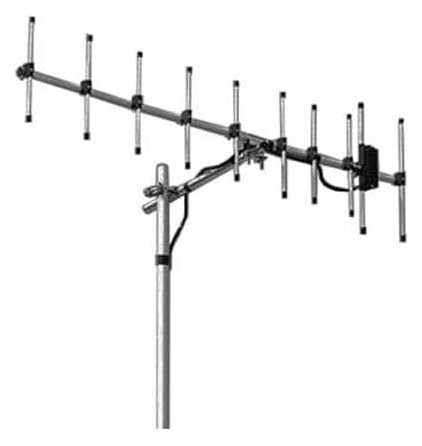

Diamond A430S10R2 Antenna UHF Base, 10-Elements Beam, 430 – 440 MHz

FEATURES, FUNCTIONS AND SPECIFICATIONS:

Antenna UHF Base, 10-Elements Beam, 430 – 440 MHz, Max Power 50 Watt, Fain 13.1 dBi.
Connector: UHF-Female (MJ).
Model: A430S10R (10 Elements)
Frequency: 430 to 440 MHz
Gain: 13.1 dBi
Max. Power Rating: 50 Watt FM
Impedance: 50 Ohm
VSWR:Less than 1.4:1
Weight: 0.64 kg
Dimensions: 1190 mm x 370 mm x 73 mm
Mast Diameter Accepted (mm): 25 mm to 47 mm (with support boom element for single antenna)
Connector: MJ (UHF-Female)
FB Ratio: More than 15 dB
Wind Surface Area: 0.07 m2
Turning Radius: approx. 820 mm

PACKING INCLUDES:
1 Pc of A430S10
