Diamond D130 25-1300 Mhz (175cm)

The Diamond D-130 antenna is the first ultra wide-band antenna on the market which can cover amateur radio, air traffic control and other various utility frequency bands and, in addition, even some amateur radio frequency bands within covering frequency range can be transmitted with this antenna alone.

The D-130 is designed to be able to assemble very easily.. Rust free stainless steal is used in major component parts to have the antenna rust resistant and durable.

Its very compact and lightweight design enables it to be installed at any convenient place. Ideal for “shop” to scan mulitple bands from one coax.

Specs:-

•  Frequency Rx: 25-1300MHz
•  Tx: 50MHz (20W), 144MHz (200W)
•  Type Discone
• Impedance 50 Ohms
• Length 1.7m
•  Max Radius length 42cm
• Mast size 25-50mm
• Weight 1kg

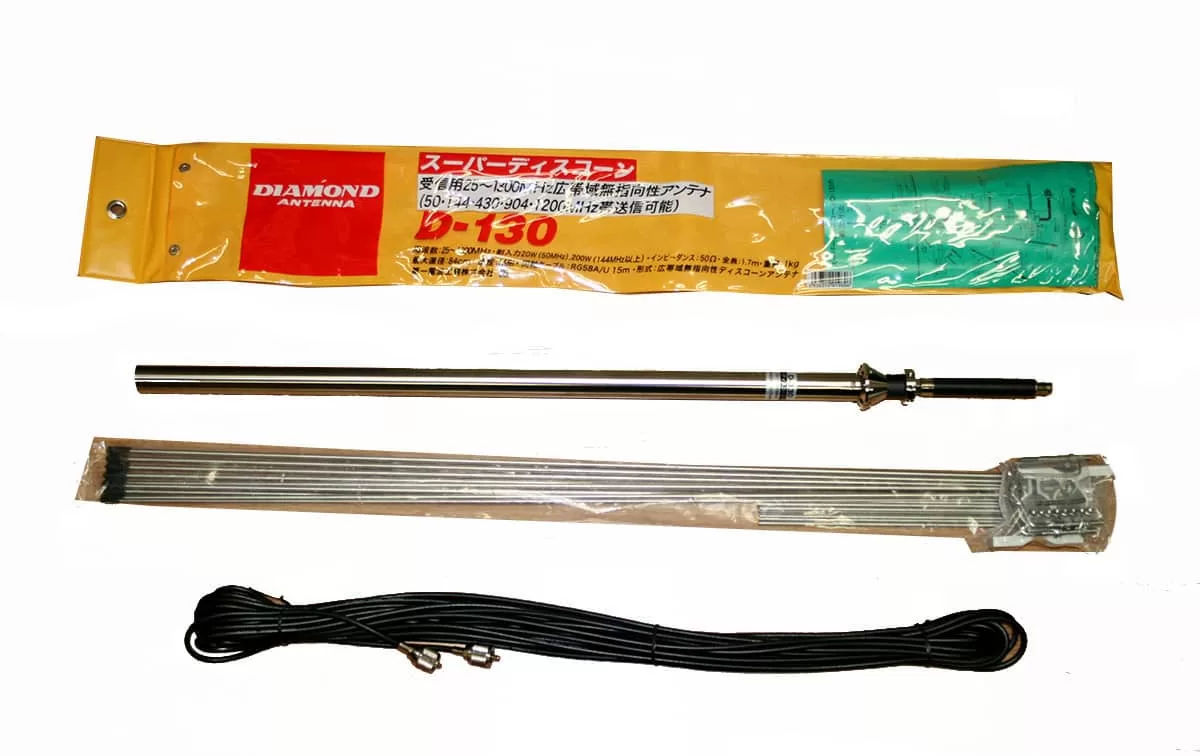

Discone antenna with wide frequency coverage on receive 25 to 1300MHz and covers 6m (20W) and 2m (200W) when used with a transmitter. This model is supplied with 15m RG58A/U and 2 x PL-259 plugs.
