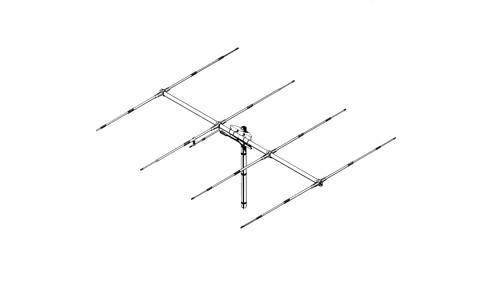

Type: | 4 elements Yagi |
Radiation: | Directional |
Polarization: | Linear Horizontal |
Frequency range: | 26.5 … 30 MHz Tunable |
Systems: | 10m-HAM |
Gain: | 11 dBd, 13.15 dBi |
Bandwidth: | ≥ 850KHz @ SWR ≤ 2 |
Max Power: | 1000 Watts (CW) continuous 3000 Watts (CW) short time |
Grounding protection: | All metal parts are DC-grounded, the inner conductor is coupled capacitively |
Connector: | UHF-female (SO-239) |
Materials: | Aluminium, Galvanized steel, Zamak |
Dimensions (approx): | 5846 x 4030 x 100 mm / 19.18 x 13.22 x 0.33 ft |
Weight (approx): | 6100 gr / 13.45 lb |

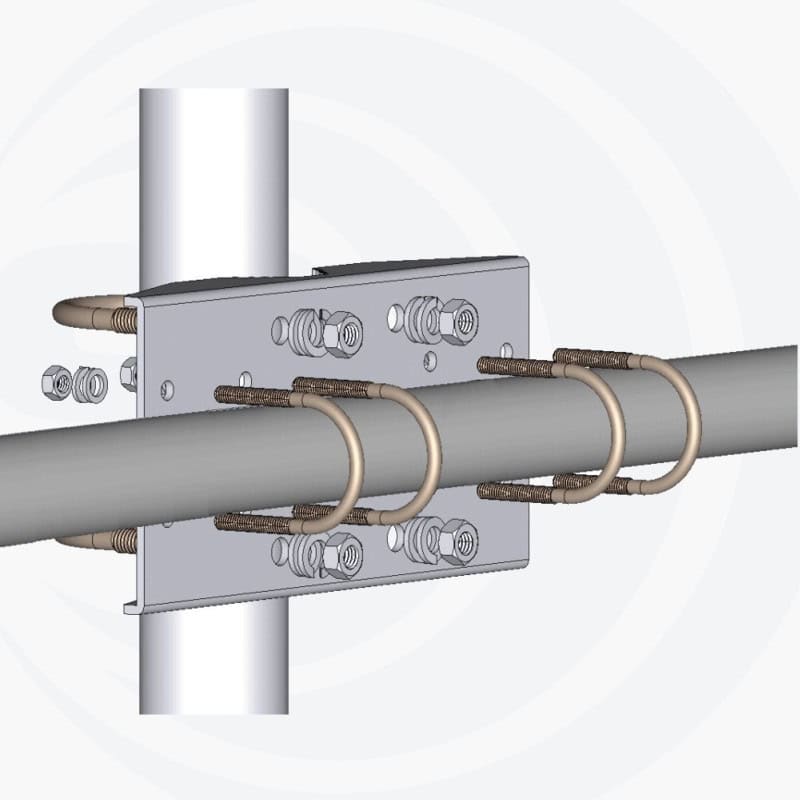

Mounting type: | On-Mast |
