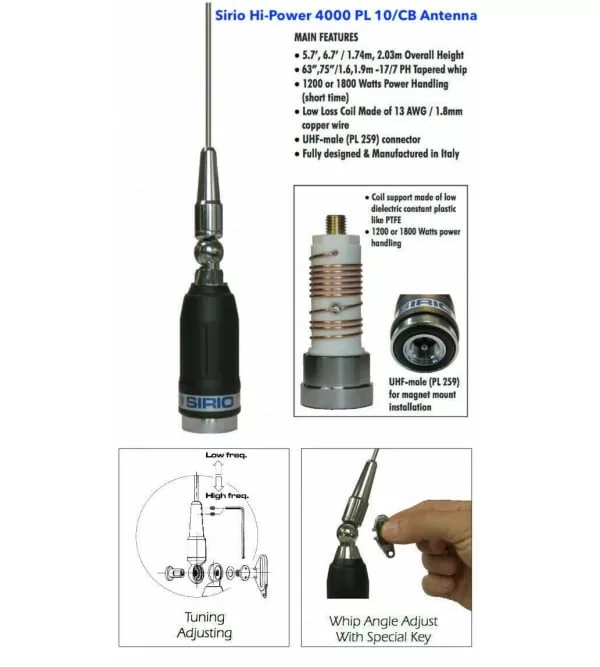

SIRIO MEGAWATT 4000 PL (2.035m)

Features:
CB & 10m Mobile antennas
High power handling capability
Tunable from 27 to 30 MHz
Protection from static discharges DC-Ground
17/7 PH tapered stainless steel whip
Supplied with special screw and anti-theft safety key
180° inclination and adjustable whip, detachable for car-wash
Suitable for magnetic mount

Part Numbers:
P/N 2211605.05 MEGAWATT 4000 PL

Electrical Data:
Type: base loaded
Frequency range: 27 … 30 MHz
Bandwidth @ SWR ≤ 2:
MEGAWATT 3000: ≥ 1890 KHz (170 channel)
MEGAWATT 4000: ≥ 2580 KHz (230 channel)

Max. power:
MEGAWATT 4000: 600 Watts (CW) continuous, 1800 Watts (CW) short time

Mounting:
MEGAWATT Series N : N-PL mount, hole Ø 12.5mm / 0.5 in
MEGAWATT Series PL: UHF-male (PL 259)
Mechanical Data:
Materials: Brass, Copper, Nylon, Stainless Steel
Height (approx.): MEGAWATT 3000: 1735 mm / 5.7 ft
MEGAWATT 4000: 2035 mm / 6.68 ft
Weight (approx.): 450 gr / 1 lb
