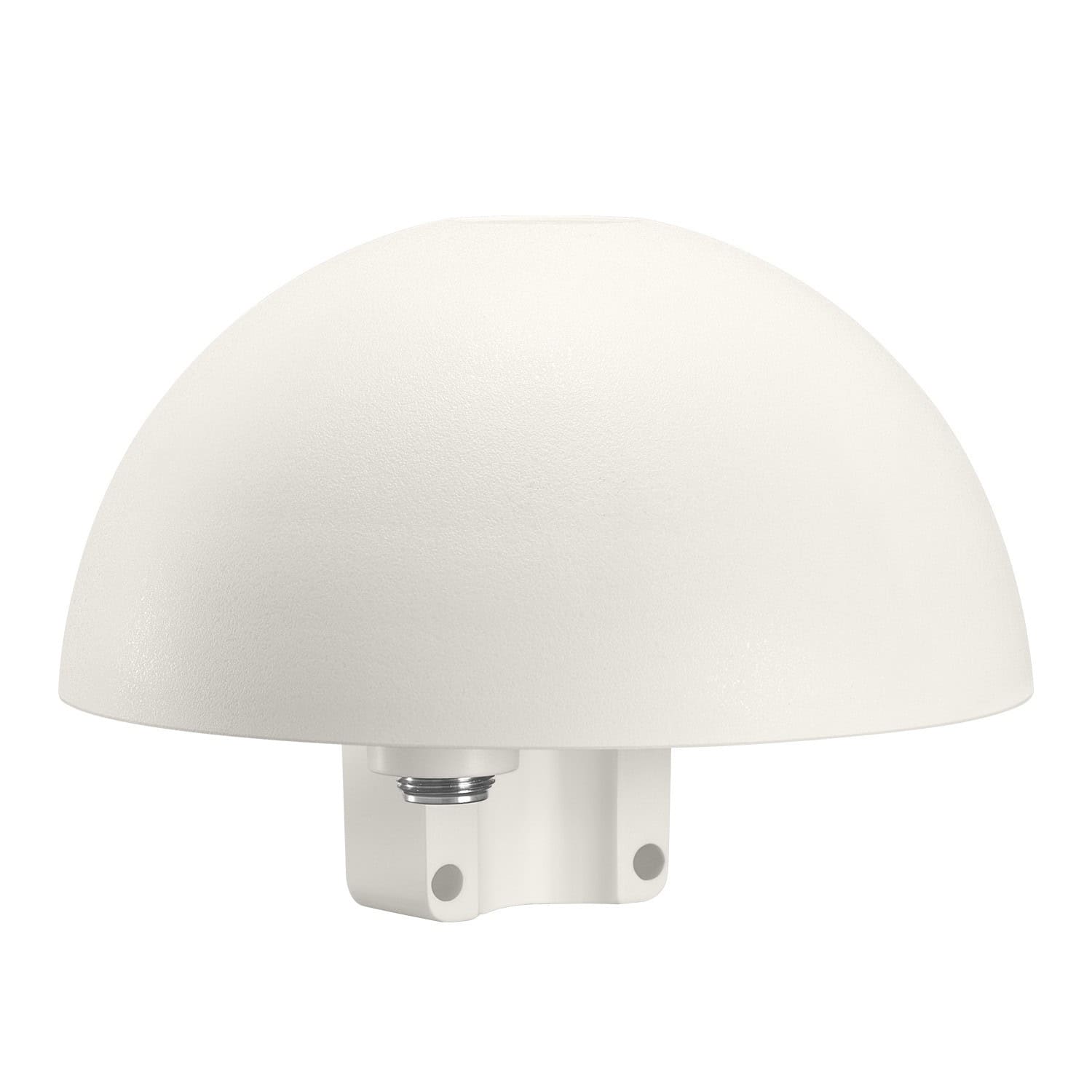

・Pole mount passive antenna.
・Connect to the IC-SAT100 with the OPC-2113 (10 m, 32.8 ft) or user supplied coaxial cable.
Specifications
Frequency range | 1575.42 – 1626.48 MHz |
---|---|
Dimensions | 160.0 (dia) × 80.5 (H) mm, 6.3 (dia)× 3.2 (H) inch |
Weight | 350 g; 12.3 oz |
Operating temperature range | –30˚C to +60˚C, –22˚F ~ +140˚F |
VSWR | Maximum 1.7 |
IP rating | IP66 |
