Comet CMX-400 SWR & Power Meter 200W 140-525 MHz

Cross Needle VHF/UHF SWR/Power Meter.

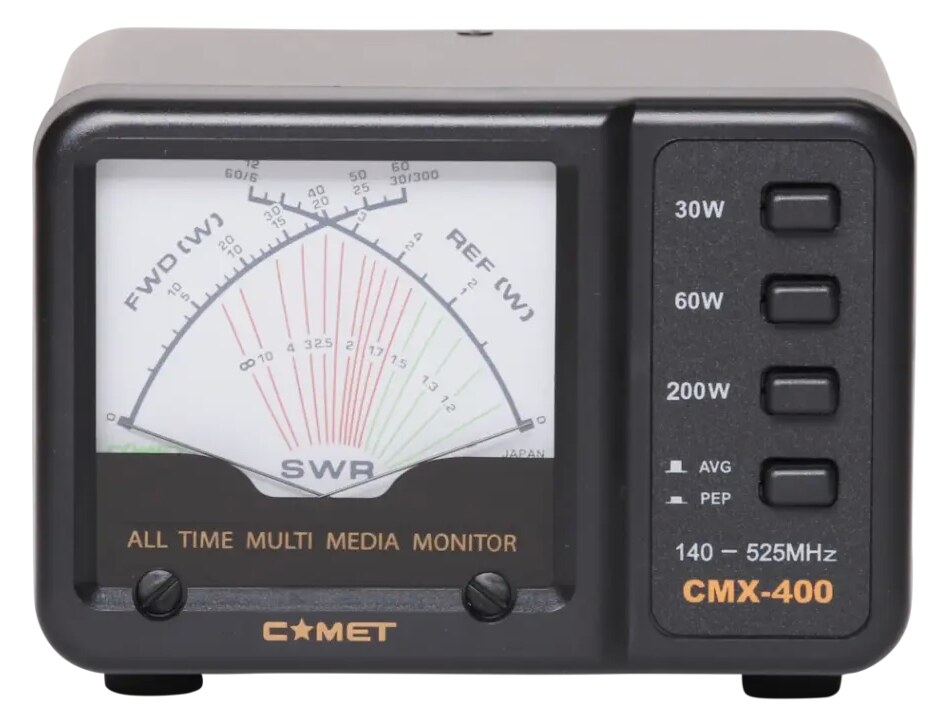

New CMX-400 meter, up to 200 watts power handling on VHF/UHF 140~525Mhz. A large, clear cross-needle display reads FWD/REF and SWR simultaneously, and to minimize power loss CMX-400 has a built-in low-loss sensor. The meter is very well-illuminated in red and green.

Technical Specifications:

• Frequency Range: 140~525Mhz
• Power Handling: up to 200 Watts
• Power Ranges: 30/60/200 Watts
• Impedance: 50 Ohms
• VSWR: 1.2 Or Less
• Insertion Loss: 0.2dB Or Less
• Min Power for SWR Measurement: approx. 6 watts
• Connector: SO-239 Type
• Power requirements for Illumination: 11~15 Volts
• Dimensions: 120mm (W) x 80mm (H) x 105mm (D)
• Weight: approx. 630 g
