mAT-K100 Automatic Tuner For Kenwood & Icom Transceivers

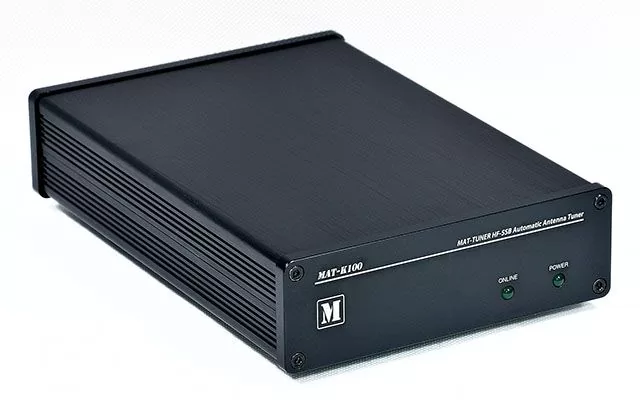

The mAT-K100 is an automatic antenna tuner specially designed for modern Kenwood and ICOM HF transceivers.  It has two control cables to choose from: mAT-CI (Icom) and mAT-CK (Kenwood).  mAT-CK for Kenwood is included standard with the tuner. mAT-CI is sold as an option.

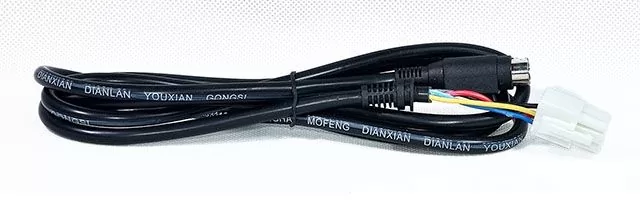

Compatible with the AT-300 Kenwood tuner interface.  Connect provided mAT-CK cable to tuner and transceiver for tuner operation from the radio front panel.  Compatible transceivers include TS-50, TS-450/690, TS480SAT (excluding HX version), TS-570, TS-590, TS-850, TS-870, TS-890, TS-990, TS-2000.

The mAT-K100 provides automatic antenna tuning across the entire HF spectrum plus 6 meters at power levels up to 120 watts. It will tune dipoles, verticals, yagis, long wire, or virtually any other coax-fed antenna.  Impedance matching range of 5 to 1500 ohms far exceeds the capability of the internal automatic antenna tuner.

120 watts power handling capability.

Superior build quality with machined, black oxidized aluminum case and excellent multi-layer circuit boards.

Specifications:

• 1.8-54 MHz continuous coverage
• 0.1-120 watts SSB/CW power, 30 watts on PSK and digital modes.  100 watts max SSB/CW above 50 MHz.
• Tuning time 0.1-5 seconds for full tune cycle.  0.1 second to return to previously stored memory.
• 16,000 frequency memories
• Impedance matching range 5 to 1500 ohms
• Dimensions 7 7/8″ deep, 5 1/8″ wide, 1 5/8″ height (20 x 13 x 4 cm)
• Weight 1 lb 12 oz (0.8 kg)
