Tecsun PL-320 Ραδιόφωνο Παγκοσμίου Λήψεως AM/FM/LW/SW DSP

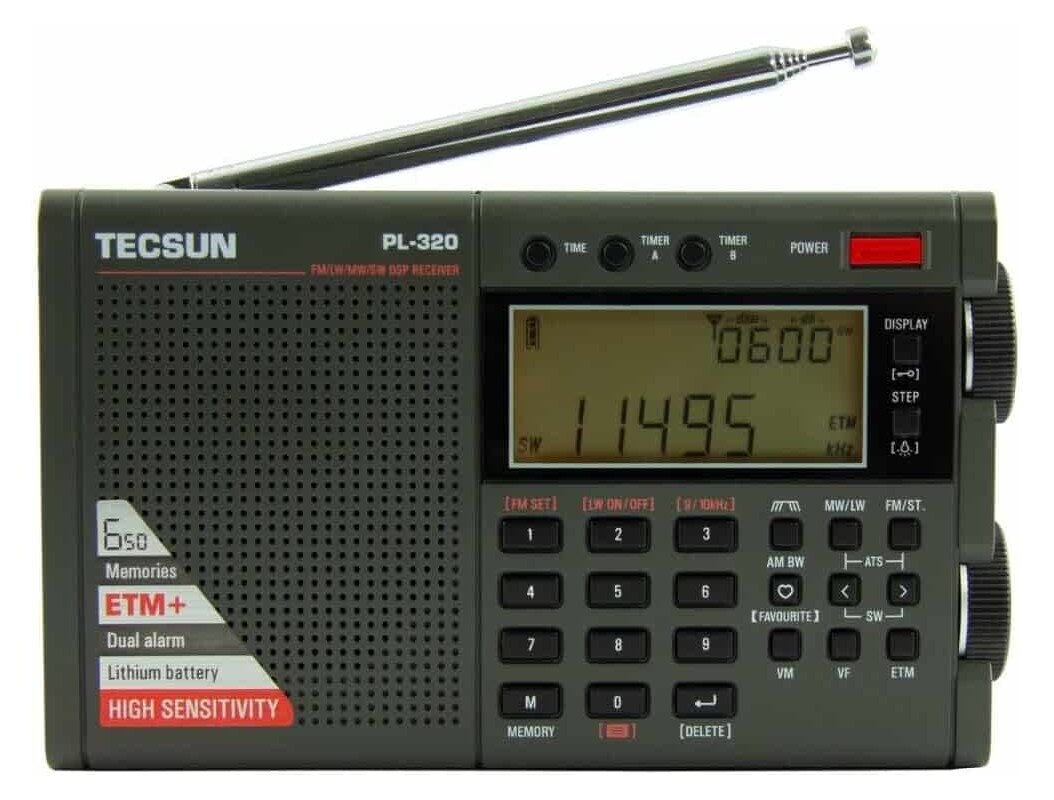

TECSUN PL-320 is a PLL DSP radio receiver for listening to FM, Longwave (LW), AM / Medium Wave (MW) and Shortwave (SW) frequency bands.

The DSP microchip digitizes the analog radio signal which, in combination with the PLL (Phase-Locked Loop) circuitry, greatly improves the radio’s sensitivity, selectivity, S/N ratio and anti-interference capability.

The PL-320 receiver has Tecsun’s new ETM+ feature, which gives the possibility of setting up time-specific memories for long wave (LW), medium wave (AM) and shortwave (SW). For quick access to your most listened to radio station, the keypad provides a shortcut by pressing the ‘Favourite’ button. Its compact size is ideal for travelling. Let the radio wake you up in the morning by setting the alarm, or set the sleep timer to auto turn-off the device while listening before going to sleep. Charge the battery by connecting the radio to a 5V USB charger, one similar to those used for most smartphones and tablets.

Package Contents

• Tecsun PL-320

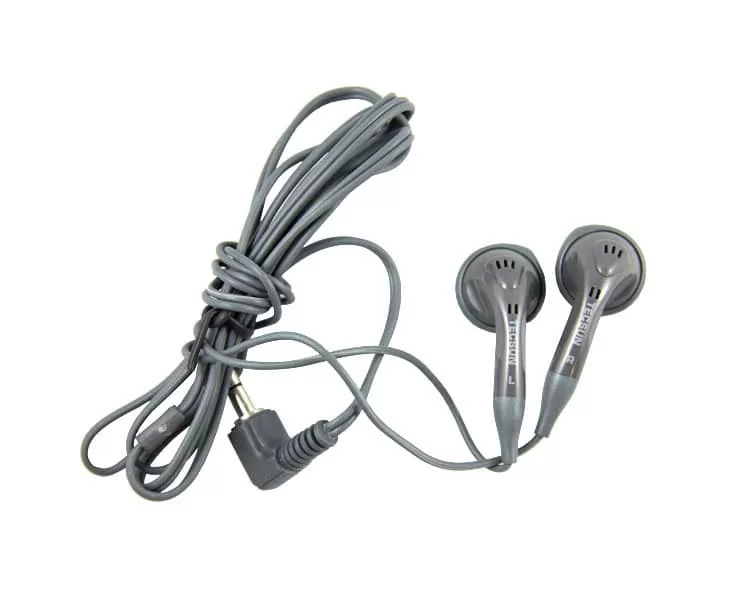

• Tecsun stereo earphones
• USB charging cable

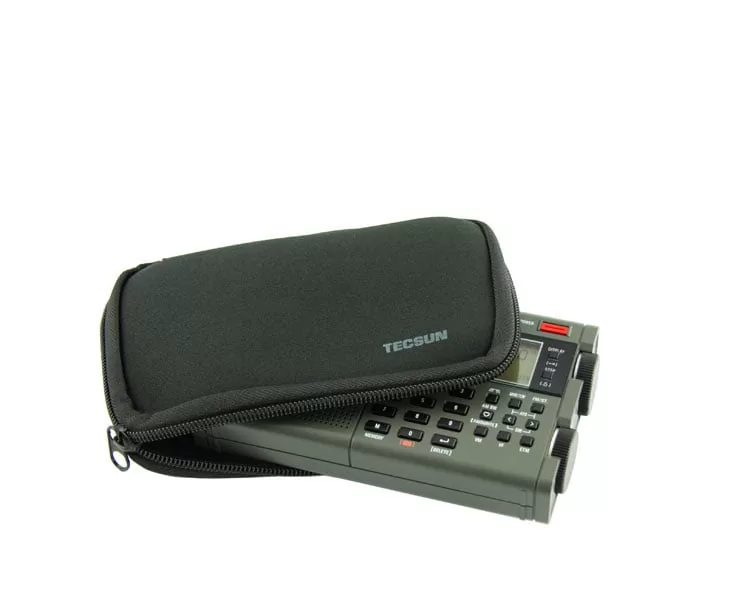

• Tecsun zippered pouch
• English manual

Special Features

• ‘Favourite’ key: Shortcut to your favorite station
• ETM+
• Antenna socket (3.5mm) for FM / SW
• AM bandwidth settings:
  • LW/MW: 2.5, 3.5, 5.0 and 9.0 kHz
  • SW: 2.5, 3.5, 5.0 and 9.0 kHz

Frequency Range

• FM:    64 – 108 MHz
  • 64.0 – 108 MHz
  • 76.0 – 108 MHz
  • 87.0 – 108 MHz
  • 88.0 – 108 MHz

Tuning steps of 100 kHz

Fine tuning steps of 10 kHz

• MW:  520 – 1710 kHz
  • 522 – 1620 kHz (tuning steps of 9 kHz)
  • 520 – 1710 kHz (tuning steps 10 kHz)

Tuning steps of 9 kHz or 10 kHz

Fine tuning steps of 1 kHz

• LW:   153 kHz to 513 kHz

Tuning steps of 9 kHz

Fine tuning steps of 1 kHz

• SW:   1711 kHz to 29999 kHz

Tuning steps of 5 kHz

Fine tuning steps of 1 kHz

Tuning Methods

• Direct keypad entry
• Auto scan
• Manual dial tuning

Storing Stations Methods

• Manually: Tune into a station using the knob and then store them
• Storing stations during auto-scan
• Auto Tuning Storage (ATS): Automatically tune and store stations
• (Recall stations by browsing the memory manually or by auto-scan)
• Enhanced Tuning Mode (ETM+): Create time-specific memories for LW/MW/SW

Basic Features

• Signal strength and S/N ratio indication
• Clock & Alarm (24-hour format)
• 650 stations storage locations
• FM stereo / mono selection
• Set to independent alarms (Timer A and Timer B)
• Alarm by radio
• Snooze function – 5 minutes
• Sleep timer from 1 – 120 minutes
• LCD backlight (always-on or auto-off)
• Keylock function

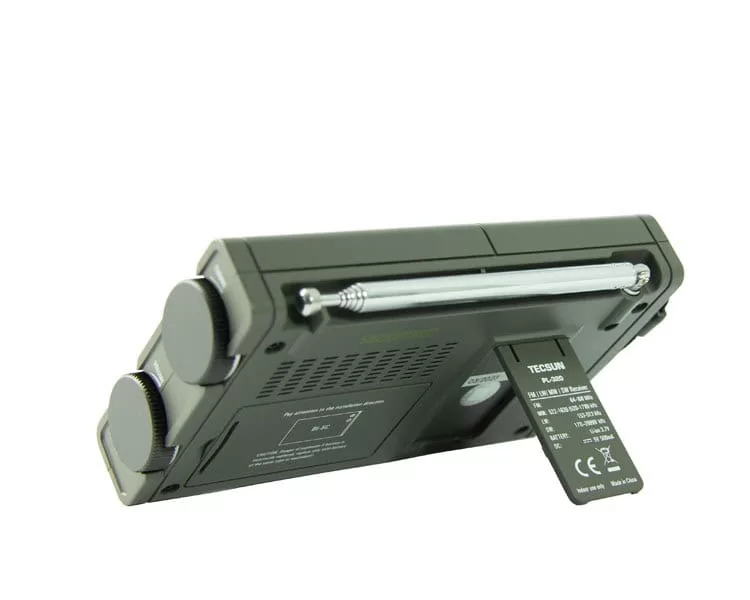

• Kickstand

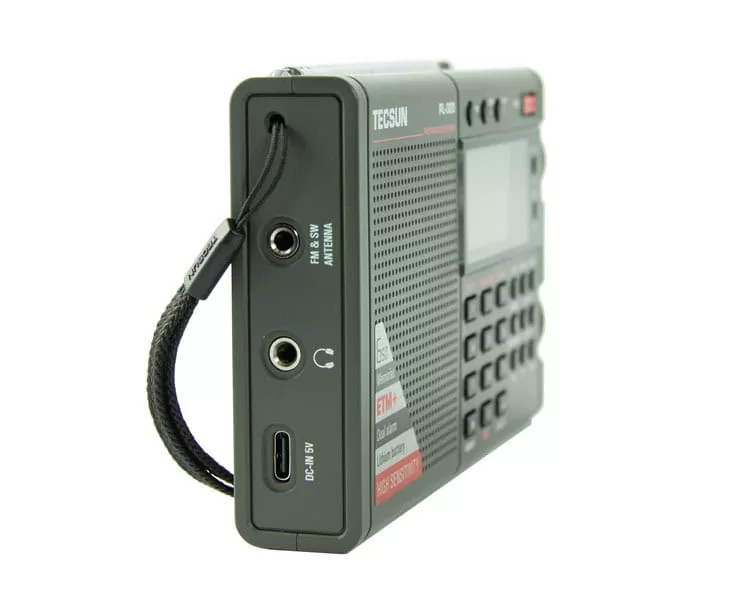

• Antenna socket (3.5mm) for FM / SW
• Earphone jack (3.5 mm; 1/8 inch; 32 ~ 150Ω)
• Speaker (8Ω, 0.25W)
• USB-C charging socket
• Built-in Charging System to charge lithium (Li-ion) rechargeable battery

Power / Charging

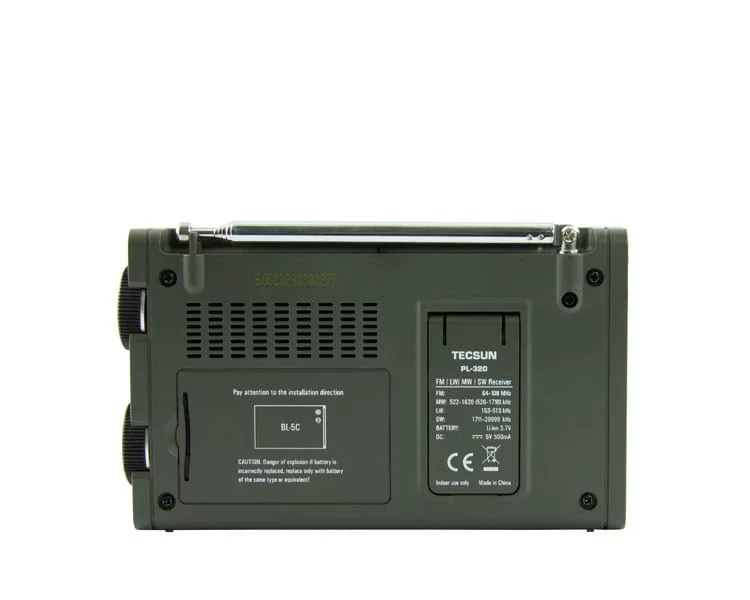

• Battery power: BL-5C lithium (Li-ion) battery
• DC power (for FM only): 5V
• Charging/Power: DC 5V / 500mA

Unit Size

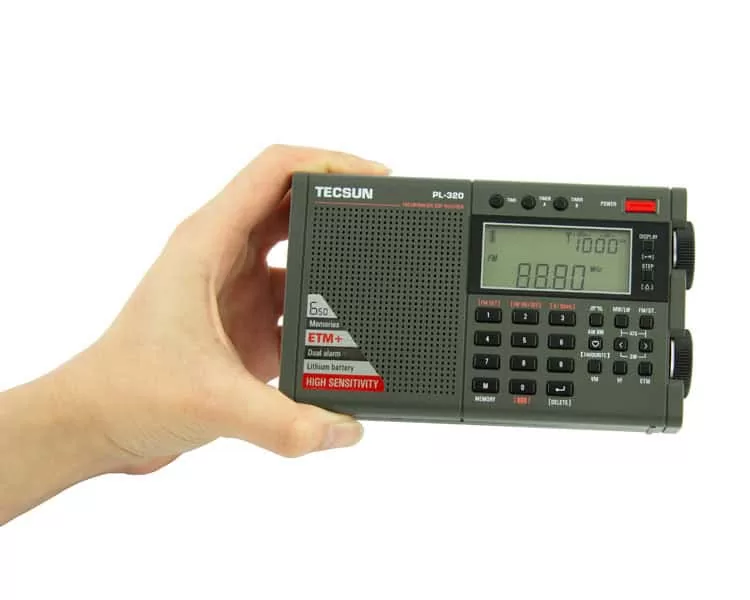

• 139 x 85 x 26 mm (W x H x D)

Specifications

• Sensitivity:
  • FM (S / N = 30dB) < 3uV
  • MW (S / N = 26dB) < 1mV/m
  • LW (S / N = 26dB) < 10mV/m
  • SW (S / N = 26dB) < 20uV

• Selectivity:
  • FM > 60dB
  • MW / LW > 60dB
  • SW > 60dB

• IF Frequency (DSP):
  • AM: 45 kHz
  • FM: 128kHz

• FM Stereo Crosstalk: 35dB

• Output Power: Approx. 200mW
