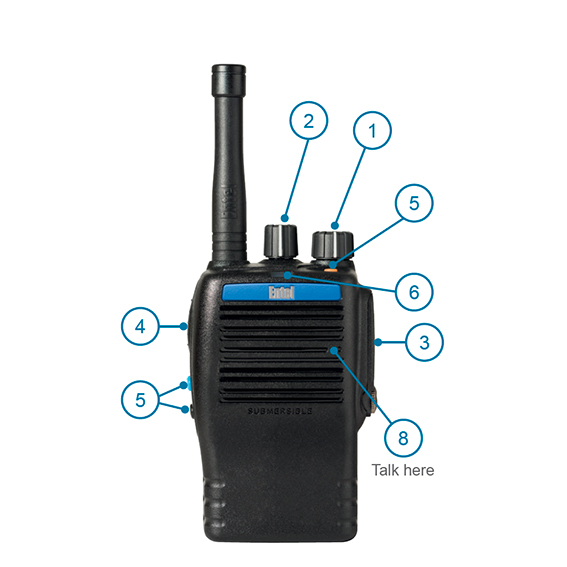

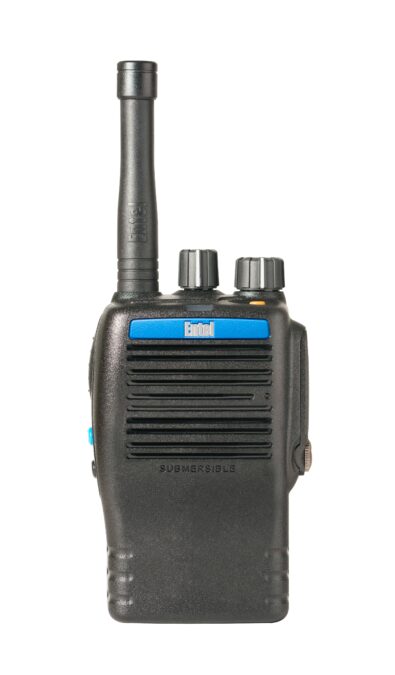

Entel DX582M-IS Intrinsically Safe Radio

KEY FEATURES

• Analogue & DMR Modes
• 16 Channels, 1 Zone
• IP68 Submersible (2m, 4 hours)
• Compliant to MILSTD construction 810C/D/E/F
• Salt Water anti-corrosion chassis coating
• 3 watts loudest & best clarity audio – in class
• Programmable buttons
• Gold plated accessory connector
• Locking accessory connector
• Accessory audio tailoring optimises audio for each accessory

• General
  Frequency Range	450 – 470MHz
  Channels / Zones	16 / 1
  Channel Spacing	25 KHz / 12.5 KHz
  Vocoder	AMBE+2
  Operating Voltage	7.6V
  Battery	CNB450E-IS 2200mAh Lithium-ion
  Weight	259g – with CNB450E-IS
  Overall Dimensions (HxWxD)	97mm x 59.5mm x 37mm (with CNB450E-IS)
  Frequency Stability	±0.5ppm
  Antenna Impedance	50 ohms
  Operating Temperature	-20°C to +55°C
  Dust and Liquid Intrusion	IP68 (2 meters depth for 4 hours)
  Drop Test	Compliant MIL-STD 810 C/D/E/F
  Packing Test	Compliant MIL-STD 810 C/D/E/F
  Vibration & Shock	Compliant MIL-STD 810 C/D/E/F
  Air Interface DMR	Compliant with ETSI TS 102 361
  Battery Endurance (5/5/90 duty cycle @ 4W)	Analogue 14 hours Digital 21 hours
  Battery care information:	Visit entel.co.uk/battery_care

  Transmitter
  Power Output	4W (high) – 1W (low)
  Modulation Limiting	±5.0KHz / ±2.5KHz
  FM Hum and Noise	>-45dB / >-40dB
  Unwanted Emissions	<0.25uW
  Adjacent Channel Power	>70dBc / >60dBc
  Audio Response (FM)	300Hz to 3KHz -6dB /Octave
  Audio Distortion	<5%
  FM Modulation	16K0F3E / 8K0F3E
  4FSK Digital Modulation	7K60FXE / 7K60FXD

  Receiver
  Digital Sensitivity	-116dBm (0.2uV) for 5% BER
  Analogue Sensitivity	-116dBm (0.2uV) for 12dB Sinad
  Intermodulation Response	>68dB
  Adjacent Channel Selectivity	>70dB / >60dB
  Spurious Rejection	>70dB
  Rated Audio Output	3 Watts
  Audio Distortion	<5%
  Hum and Noise	>-45dB / >-40dB
  Audio Response	300Hz to 3KHz -6dB /Octave
  Conducted Spurious Emissions	<2nW from 30MHz to 2GHz
