Electrical Data:

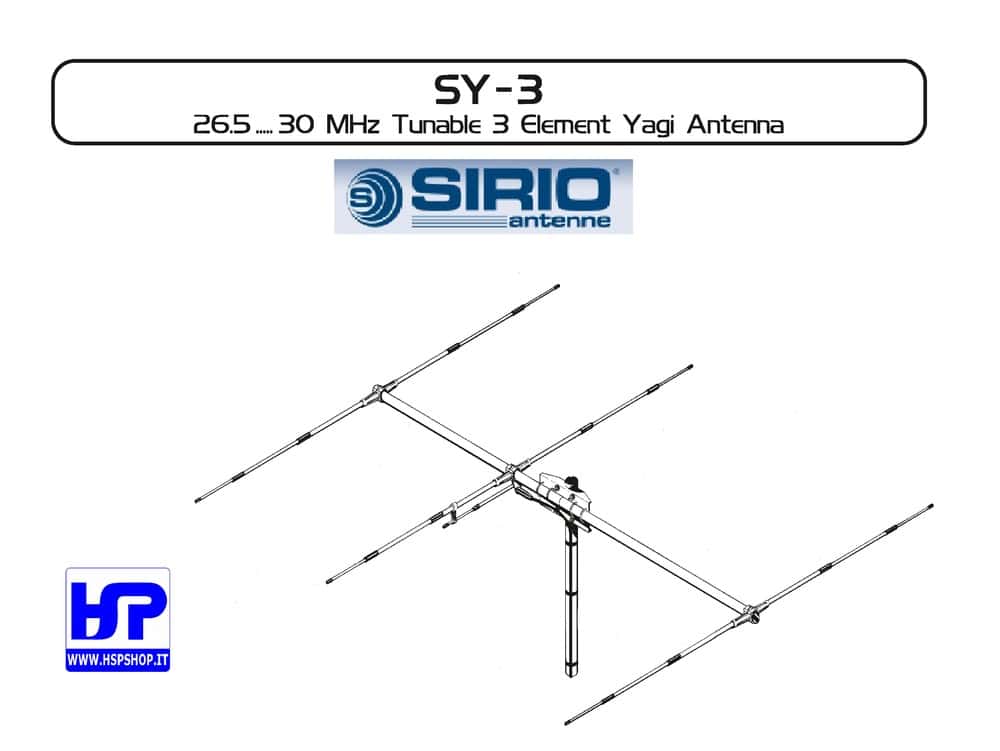

| Type: | 3 elements Yagi |
| Radiation: | Directional |
| Polarization: | Linear Horizontal |
| Frequency range: | 26.5 … 30 MHz Tunable |
| Systems: | 10m-HAM |
| Gain: | 8.5 dBd, 10.65 dBi |
| Bandwidth: | ≥ 1.2MHz @ SWR ≤ 2 |
| Max Power: | 1000 Watts (CW) continuous 3000 Watts (CW) short time |
| Grounding protection: | All metal parts are DC-grounded, the inner conductor is coupled capacitively |
| Connector: | UHF-female (SO-239) |
Mechanical Data:
| Materials: | Aluminium, Galvanized steel, Zamak |
| Dimensions (approx): | 5942 x 2710 x 100 mm / 19.49 x 8.89 x 0.33 ft |
| Weight (approx): | 4700 gr / 10.36 lb |

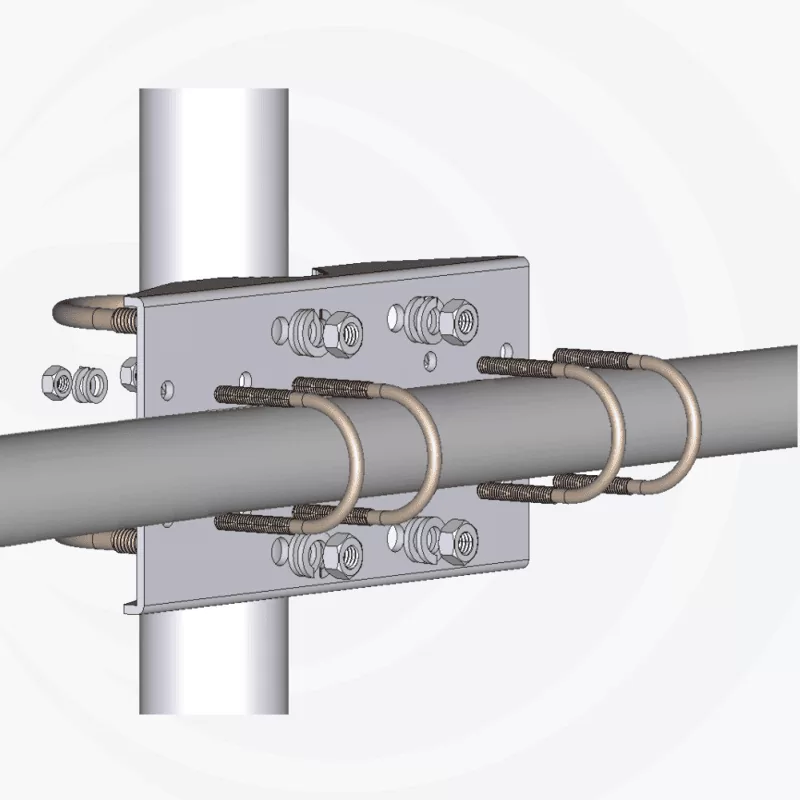

| Mounting type: | On-Mast |
