AOR SA7000 Super wide band base aerial system Antenna 30K-2GHZ

AOR SA7000 Wide Range Antenna

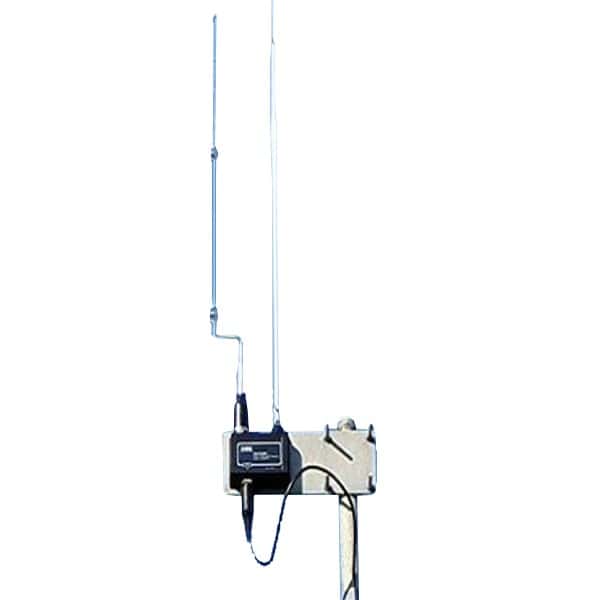

The AOR SA7000 super wide range receiving antenna covers from 30 kHz to 2 GHz. This 6 foot (1.8 m) passive antenna has two vertical elements with a built-in duplexer. The aerial is designed for areas where space is a problem or when an unobtrusive installation is essential. The SA7000 is a passive arrangement providing two whip elements: a long element for short wave up to 30 MHz and a second shorter loaded whip aerial for frequencies up to 2 GHz, the loading coils are tuned around 150 and 800 MHz to enhance performance of the VHF and UHF bands. A single coaxial lead feeds both whips in a weather proof enclosure which in turn bolts to a suitable supporting mast (not provided).

The SA7000 is easy to assemble and use, an instruction sheet is supplied with the aerial, “V” bolts and clamps are included but a small stub mast will be required for installation which should be as high as possible and in clear space. This antenna includes 50 feet of RG-58 coax lead-in with a PL-259 to plug into the antenna base and a 50 ohm BNC plug to go into the radio.

The SA7000 is a strong single antenna choice for the AOR AR8200 Mark III, AR5000, AR8600, ICOM R1500, R2500, PCR100, PCR1000, PCR1500, PCR2500, Yaesu VR5000 or other wideband receiver with a single antenna input.
