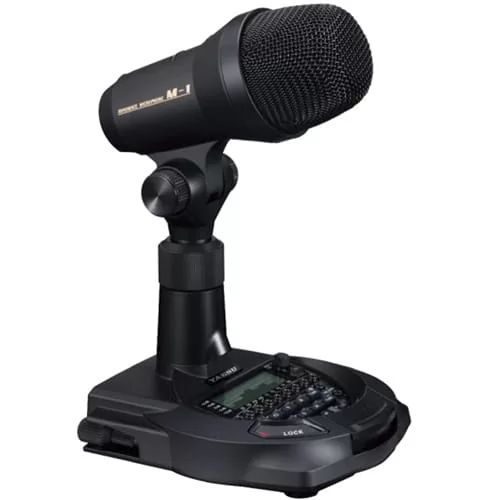

YAESU M-1 Reference microphone
The M-1 Reference Microphone is the ultimate, high-quality, innovative desktop microphone, dedicated to the most discriminating Ham Radio Operators. It features combined Condenser and Dynamic microphone elements.
For a one-time special Yaesu are offering a 60th Anniversary version of the M-1, embellished with an elegant gold ring. Please understand that Yaesu are producing only a limited quantity of the special version and take orders for these units on first-come first-serve basis.
The M-1 Reference Microphone is the ultimate, high-quality, innovative desktop microphone, dedicated to the most discriminating Ham Radio Operators. It features combined Condenser and Dynamic microphone elements.
The Condenser Microphone Element produces greater frequency response and clear, crisp audio characteristics perfect for being heard on crowd bands and in big DX pile-ups, while the Dynamic Microphone Element delivers the rich low-mid tonalities, favored for local QSOs. The response of each microphone element may be adjusted independently using the internal Nine (9) Band Graphic Equalizer. Each element has a separate volume control for independent adjustment of output levels. The output of each microphone may be selected separately, or they may be combined to produce the most pleasant tonality.
Other included features are; Recording and playback capability (20 seconds), to confirm the audio tonality; Large red TX LED Indicator; Large Graphic Equalizer and Frequency Response Scope LCD Display with anti-reflective coating; Headphone jack; Touch PTT keylock; Built-in low-cut filter to shape the low frequency response; Cannon-type (XLR) output plug connector; and Audio output volume control for headphones. Two screwdrivers are included to precisely adjust the graphic equalizer and microphone gains.
- TBC (Treble Boost Cowling)
- Microphone cable
- AC adapter
- Operating Manual
Specifications:
- Microphone Type: Dynamic microphone and Condenser microphone
- Supply Voltage: DC5.0V /- 5 %
- Frequency Response: 30~17000Hz
- Sensitivity: – 60 dB (1kHz 0 dB=1V/1Pa)
- Microphone Impedance: 600 Ohms
- Headphone Output Impedance: 16 Ohms (TYP)
- Headphone Output Level: 15 mW (TYP)
- RX AUDIO IN (Input Level): 100 mVrms (TYP)
- Dimensions (W x H x D): 5.5″ x 11.0″ x 6.0″ (140 x 280 x 152 mm) * H: (Maximum with microphone flat)
- Weight: 2.11 lbs ( 960 g) w/o cable
