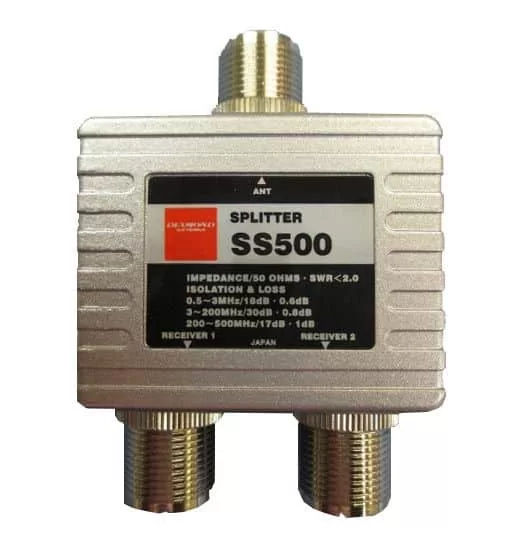

Diamond SS-500 Wideband Antenna splitter 500 MHz

Serves to connect two antennas to one receiver or vice versa – one antenna to two receivers. This device contains a wideband transformation network which combines both inputs and transforms the impedance. Further this networks isolates both inputs against each other.
The insertion loss up to 200MHz is less or equal than 0.8dB, isolation between both inputs is 30dB (@3-200MHz).
Due to the high isolation between the two inputs the SS-500 can combine any two antennas, also with different frequency ranges, without one antenna shortening the other antenna.
50 Ω impedance, SWR better than 2:1, Size 80x60x30mm, Connector 3x PL female. This splitter/combiner is not suitable for transmission.
