HAMKING DX-720D Duplexer: 1.6-30 or 140-150 MHz / 400-460 MHz DX720D

HamKing DX-720D

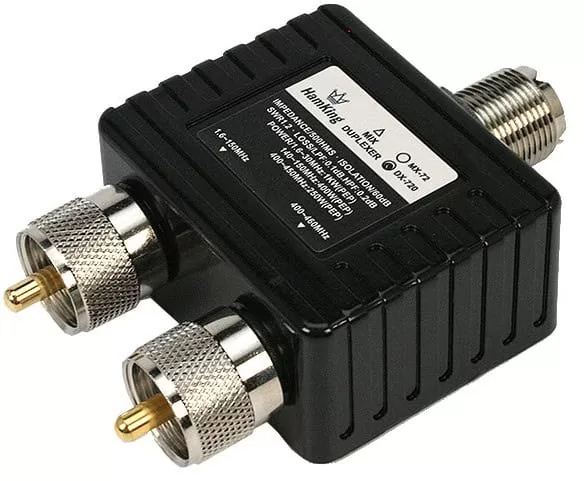

The HamKing DX-720D is a high-quality HF/VHF/UHF duplexer, equipped with one UHF-female connector and two UHF-male connectors for the split frequency bands of 1.6 – 150 MHz and 400 – 460 MHz.

Product Info:

Type: Duplexer
Product code: 6112
Barcode: 8718375101322

Electrical Data:

Frequency band: HF/VHF/UHF/
Frequency:1.6-30/140-150/400-460 MHz
VSWR:<1.2
Power:1.6-30 MHz: 400 watts (CW), 1 kW (PEP) / 140-150 MHz: 150 watts (CW), 400 watts (PEP) / 400-460 MHz: 100 watts (CW), 250 watts (PEP)
Impedance:50?
Loss:LPF < 0.1 dB (1.6-30/140-150 MHz) / HPF < 0.2 dB (400-460 MHz)

Mechanical Data:

Weight:140 gram
Measuremens L x W x H:85 x 55 x 27 mm (length including connectors)
Connector:1x UHF female, 2x UHF male
