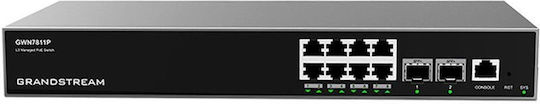

Grandstream GWN7811P Enterprise Layer 3 Managed Network Switch

Grandstream GWN7811P Enterprise Layer 3 Managed Network Switch - Image 2

Grandstream GWN7811P Enterprise Layer 3 Managed Network Switch 2

Κωδικός: GWN7811P

Grandstream GWN7811P Enterprise Layer 3 Managed Network Switch

Name: Grandstream GWN7811P Enterprise Layer 3 Managed Network Switch | ΑΥΓΟΥΣΤΗΣ
Brand: Grandstream
SKU: GWN7811P
Price: 204.00 EUR
Availability: BackOrder

Κατάστημα 4.8 · 405 κριτικές Google·Εξέλιξη τιμής

204,00 €

Παράδοση 1 έως 3 ημέρες

Μειωμένα μεταφορικά άνω των 80 €

Δες όλη την περιγραφή

'Ατοκεσ δοσεισ

6 άτοκες δόσεις σε αγορές από 100€ και άνω

Αποστολή πανελλαδικά από 3€

με Courier για ογκομετρικό βάρος έως 3kg

Δωρεάν μεταφορικά άνω των 80€

έως 20 kg σε επιλεγμένα προϊόντα με την BOXNOW

Δωρεάν μεταφορικά άνω των 80€

για τα πρώτα 3 κιλά της παραγγελίας σου με Courier

ΑΠΟΣΤΟΛΗ ΣΤΗΝ ΗΠΕΙΡΩΤΙΚΗ ΕΛΛΑΔΑ & ΚΡΗΤΗ ΑΠΟ 1,99€

με την BOXNOW σε επιλεγμενα προϊόντα έως 20 kg

Εγγύηση 100% καλής λειτουργίας

σε όλα μας τα προϊόντα

The GWN7811P series are Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. GWN7811P series can be managed in a number of ways, including the local Web user interface of the GWN7811P series switch and CLI, the command-line interface. The series is also supported by GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. The GWN7811P series are the best value enterprise-grade managed network switches for medium-to-large businesses.

Features:

• 8 Gigabit Ethernet ports and 2 10Gigabit SFP+ ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
• Supports deployment in IPv6 and IPv4 networks
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
• Built-in QoS allows for prioritization of network traffic

Specifications
Network Protocol	IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x
Memory	256MB RAM 128MB Nand Flash, 8MB Nor Flash
PoE Standards	IEEE 802.3af/at
Jumbo Frame(Bytes)	12288
Gigabit Ethernet Ports	8
10Gigabit SFP+ Ports	2
Maximum no. of Supported Modules	SM-10G: 2 MM-10G: 2 RJ45-10G: 2
Console	1
# of PoE Ports	8
Link Aggregation	32
Max Output Power per PoE Port	30W
Max Total PoE Output Power	120W
PoE Standards	IEEE 802.3af/at
Surge Protection	± 6KV CM and DM for power ± 4KV CM for network ports
ESD	± 12KV for contact discharge
Auxiliary Ports	1x Reset Pinhole
Forwarding Mode	Store-and-forward
Total non-blocking throughput	28Gbps
Switching Capability	56Gbps
Forwarding Rate	41.644Mpps
Packet Buffer	12MB
Network Latency	<4µs
Stacking	Yes, Up to 4 devices
Switching	• 16K MAC addresses, including static, dynamic, filtering and sticky MAC address • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, MAC-based VLAN, protocol-base VLAN, QinQ • Private VLAN • Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI • 16 VLAN virtual interface with 9216 MTU • GVRP (pending) • Spanning tree, 32 instances for STP/RTSP/MSTP/PVST(+)/RPVST(+) • 1K ARP/NDP
Routing	• 512 (IPv4)/128 (IPv6) routes • 32 (IPv4)/32 (IPv6) static routing • Dynamic routing, including RIP, RIPng, OSPF, OSPFv3 and BGP • Routing Policy
Multicast	•IGMP Snooping with IGMPv2 and IGMPv3, 256 IGMP Snooping groups • MLD Snooping with MLDv1 and MLDv2, 256 MLD Snooping groups • MVR
QoS/ACL	• Port priority • Priority mapping • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit • 2K ACL for Ethernet, IPv4 and IPv6
DHCP	DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43
Maintenance	• Fan and PWR/RPS monitoring • CPU and memory monitoring • SNMP inckuding SNMPv1, SNMPv2c, SNMPv3 • RMON • LLDP&LLDP-MED • Backup & Restore • Syslog • Diagnostics including Ping, Traceroute, Mirroring including SPAN and RSPAN, UDLD (TBD) and copper test • Upgrade via FTPS / TFTP / HTTP / HTTPS or local upload, mass provisioning using DHCP Option / TR-069 (pending) / GDMS Networking / GWN Manager / GWN Series Routers
Security	• User hierarchical management and password protection, HTTPS, SSH, Telnet • 802.1X authentication • MAC authentication • AAA authentication including RADIUS, TACACS+ • Storm control • Port isolation, port security, sticky MAC • Filtering MAC address •IP/IPv6 source guard, DoS attack prevention, ARP inspection • DHCP/DHCPv6 Snooping • Loop protection including BPDU protection, root protection and loopback protection • Kensington Security Slot (Kensington Lock) support
Mounting	Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included)
System LEDs	1x tri-color LED for device tracking and status indication
Data Transferring LEDs	10x green-color LEDs
PoE Powered LEDs	8x yellow-color LEDs
Environmental	Operation: 0°C to 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95% RH(Non-condensing)
Dimensions	330mm(L)x176mm(W)x44mm(H)
Unit Weight	2.17Kg
Package Content	1x Switch 1x 1.2m(10A) AC Cable 1x 25cm Ground Cable 4x Rubber Footpads 1x Power Cord Anti-Trip 8x Screws (KM 3*6) 1x Quick Installation Guide 1x Console Cable(Optional) 2x Extended Rack-Mounting Kits
Compliance	FCC, CE, RCM, IC, UKCA
