Alinco DJ-500E Φορητός Π/Δ V/U IP54 5W

Full of advanced features, the Alinco DJ-500E offers land mobile-grade operation and powerful 5W output. CTCSS, DTMF, DCS, and 5-tones are standard, along with a variety of tone bursts for repeater access or selective calling. Convenience features include direct frequency input, alphanumeric channel labels, and 200 memory channels that can each store operating parameters.

A Li-Ion battery pack and a stand charger are standard, adding power and convenience. The Alinco DJ-500E looks simple, but remember, looks can be deceiving! The DJ-500E places one of the world’s most advanced transceivers at your command.

Features

• Display: Yes, Orange / White / Red
• VOX function: Yes
• DTMF: Yes
• High/low power selection: Yes
• Voice guide: English
• Cloning: Yes, with optional ERW-4 / ERW-7

Receiver

• Sensitivity: Wide: ≤0.25 μV / Narrow: ≤0.35 μV
• Audio power output: 1000 mW / 10%
• Adjacent channel selectivity -6 dB: Wide: 12 kHz / Narrow: ≥ 10 kHz
• Adjacent channel selectivity -60 dB: Wide: 30 kHz / Narrow: ≤ 24 kHz

Transmitter

• Power output (Watts): 1/2/5 Watts
• Modulation limit: F3E (16K0F3E / 11K0F3E / RX only WFM)
• Spurious Emission: ≥ 60 dB
• Audio distortion: ≤ 5%
• Frequency stability: ±5 kHz / ±2.5 kHz

Electrical data

• Frequency step: 2.5 kHz / 5 kHz / 6.25 kHz / 8.33 kHz / 10 kHz / 12.5 kHz / 20 kHz / 25 kHz / 30 kHz / 50 kHz /
• Channels: 200
• Wide and narrow bandwidth selection: Yes
• Operating temperature: -20℃ to +55℃

Mechanical data

• Length: 35 mm
• Height: 98 mm
• Width: 59 mm
• Weight: 227 gram
• Antenna connector: SMA

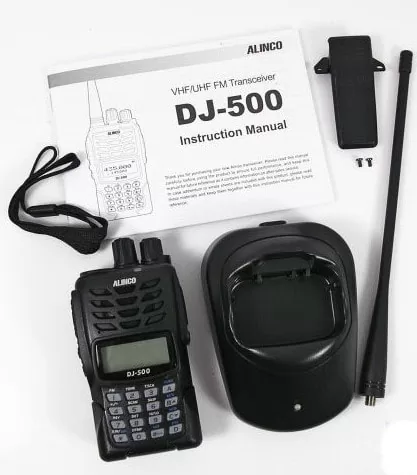

Inside the box

• Transceiver: Yes
• Battery: 1500 mAh Li-ion battery pack (EBP-87)
• Charger: Desk charger with AC adapter (EDC-189 – EDC-191)
• Antenna: Yes
• Installation manual: English
